How to choose dark color always with Random?

Question

I've a PieChart, a custom Panel, and it adds a number of PieSlice, a custom FrameworkElement, based on the number of int in the IEnumerable I provide as its ItemSource, a DependecnyProperty. When it adds slices it chooses color randomly. Sometimes those colors are pleasant and sometimes those hurt my eyes. Here's the two relevant lines in the PropertyChangedCallback of PieChart's ItemsSource:

var color = Color.FromRgb((byte)rand.Next(0, 256), (byte)rand.Next(0, 256), (byte)rand.Next(0, 256));
var slice = new PieSlice(new SolidColorBrush(color), item);

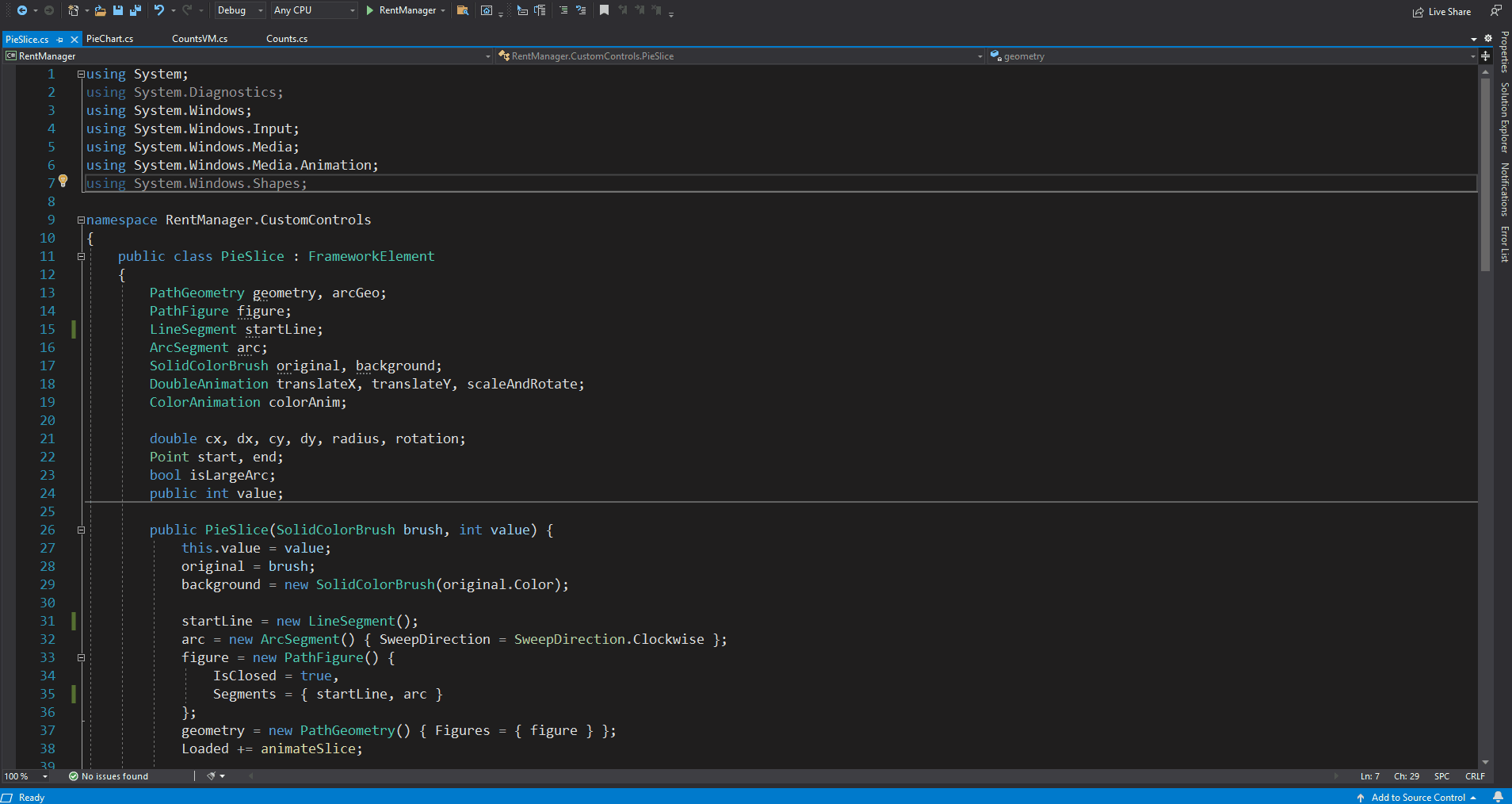

that sometimes hurts! When the app is loaded it looks like this:

one more issue I've at the point where PieSlices meet. Looks like there's stripe in between slices and its apparent when the colors are light. Here's the code for PieChart:

public class PieChart : Panel
{
    Popup pop;
    TextBlock value, percentage;
    Path ellipse;
    int total;
    DoubleAnimation ellipseAnim;
    BooleanAnimationUsingKeyFrames popOpenAnim, popCloseAnim;

    public PieChart() {
        Margin = new Thickness(10);
        value = new TextBlock() {
            FontSize = 32,
            FontWeight = FontWeights.Bold,
            Foreground = Brushes.Gray,
            HorizontalAlignment = HorizontalAlignment.Center,
            TextAlignment = TextAlignment.Center
        };
        percentage = new TextBlock() {
            Foreground = Brushes.Blue,
            HorizontalAlignment = HorizontalAlignment.Center,
            TextAlignment = TextAlignment.Center
        };
        pop = new Popup() {
            AllowsTransparency = true,
            PlacementTarget = this,
            Placement = PlacementMode.Center,
            Child = new StackPanel() {
                Children = {
                    value,
                    new Separator(),
                    percentage
                }
            }
        };
        ellipseAnim = new DoubleAnimation() {
            BeginTime = TimeSpan.FromSeconds(1),
            Duration = TimeSpan.FromSeconds(1),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseInOut },
        };
        popOpenAnim = new BooleanAnimationUsingKeyFrames() {
            KeyFrames = {
                new DiscreteBooleanKeyFrame(false, TimeSpan.FromSeconds(0)),
                new DiscreteBooleanKeyFrame(true, TimeSpan.FromSeconds(1.5)),
            }
        };
        popCloseAnim = new BooleanAnimationUsingKeyFrames() {
            KeyFrames = {
                new DiscreteBooleanKeyFrame(false, TimeSpan.FromSeconds(1))
            }
        };
    }
    protected override Size ArrangeOverride(Size finalSize) {
        if (ItemSource != null) {
            var list = ItemSource.Cast<int>().ToList();
            double cx = finalSize.Width / 2;
            double cy = finalSize.Height / 2;
            double radius, startAngle, sweepAngle, endAngle;
            startAngle = sweepAngle = endAngle = 0d;
            radius = cx > cy ? cy : cx;
            var total = list.Sum();
            int index = 0;
            foreach (PieSlice item in Children.OfType<PieSlice>()) {
                var value = list[index];
                startAngle += sweepAngle;
                sweepAngle = 2 * Math.PI * value / total;
                endAngle = startAngle + sweepAngle;
                bool isLarge = (double)value / total > 0.5;
                item.SetParameters(cx, cy, radius, startAngle, sweepAngle, isLarge);
                item.Arrange(new Rect(item.DesiredSize));
                index++;
            }
            ellipse = Children.OfType<Path>().First();
            var geo = ellipse.Data as EllipseGeometry;
            geo.RadiusX = geo.RadiusY = radius - 100;
            geo.Center = new Point(cx, cy);
            ellipse.Measure(finalSize);
            ellipse.Arrange(new Rect(ellipse.DesiredSize));
            ellipse.RenderTransform = new ScaleTransform(0, 0);
        }
        return finalSize;
    }
    void animateEllipse(double scale) {
        double x, y, cx, cy;
        cx = ActualWidth / 2;
        cy = ActualHeight / 2;
        if (scale == 1) {
            x = y = 0;
            pop.BeginAnimation(Popup.IsOpenProperty, popOpenAnim);
        }
        else {
            var transfrom = ellipse.RenderTransform as ScaleTransform;
            x = transfrom.ScaleX;
            y = transfrom.ScaleY;
            pop.BeginAnimation(Popup.IsOpenProperty, popCloseAnim);
        }
        ellipse.RenderTransform = new ScaleTransform(x, y, cx, cy);
        ellipseAnim.To = scale;
        ellipse.RenderTransform.BeginAnimation(ScaleTransform.ScaleXProperty, ellipseAnim);
        ellipse.RenderTransform.BeginAnimation(ScaleTransform.ScaleYProperty, ellipseAnim);
    }
    void showPopup(object sender, MouseEventArgs e) {
        double val = (sender as PieSlice).value;
        value.Text = val.ToString();
        percentage.Text = (val / total * 100).ToString("N2") + " %";
        animateEllipse(1);
    }
    void hidePopup(object sender, MouseEventArgs e) => animateEllipse(0);

    public IEnumerable ItemSource {
        get { return (IEnumerable)GetValue(ItemSourceProperty); }
        set { SetValue(ItemSourceProperty, value); }
    }
    public static readonly DependencyProperty ItemSourceProperty =
        DependencyProperty.Register("ItemSource", typeof(IEnumerable), typeof(PieChart), new PropertyMetadata(null, onSourceChanged));

    static void onSourceChanged(DependencyObject d, DependencyPropertyChangedEventArgs e) {
        var o = d as PieChart;
        if (e.OldValue != null) o.Children.Clear();
        if (o.ItemSource != null) {
            Random rand = new();
            foreach (int item in o.ItemSource) {
                o.total += item;
                var color = Color.FromRgb((byte)rand.Next(0, 256), (byte)rand.Next(0, 256), (byte)rand.Next(0, 256));
                var slice = new PieSlice(new SolidColorBrush(color), item);
                o.Children.Add(slice);
                slice.MouseEnter += o.showPopup;
                slice.MouseLeave += o.hidePopup;
            }
            var path = new Path() {
                Fill = Brushes.White,
                Data = new EllipseGeometry()
            };
            o.Children.Add(path);
        }
    }
}

and here's PieSlice:

public class PieSlice : FrameworkElement
{
    PathGeometry geometry, arcGeo;
    PathFigure figure;
    LineSegment startLine;
    ArcSegment arc;
    SolidColorBrush original, background;
    DoubleAnimation translateX, translateY, scaleAndRotate;
    ColorAnimation colorAnim;
    double cx, dx, cy, dy, radius, rotation;
    Point start, end;
    bool isLargeArc;
    public int value;

    public PieSlice(SolidColorBrush brush, int value) {
        this.value = value;
        original = brush;
        background = new SolidColorBrush(original.Color);
        startLine = new LineSegment();
        arc = new ArcSegment() { SweepDirection = SweepDirection.Clockwise };
        figure = new PathFigure() {
            IsClosed = true,
            Segments = { startLine, arc }
        };
        geometry = new PathGeometry() { Figures = { figure } };
        Loaded += animateSlice;
        initAnimations();
    }
    void initAnimations() {
        scaleAndRotate = new DoubleAnimation() {
            From = 0,
            Duration = TimeSpan.FromSeconds(3),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseInOut }
        };
        translateX = new DoubleAnimation() {
            Duration = TimeSpan.FromSeconds(2),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseOut }
        };
        translateY = new DoubleAnimation() {
            Duration = TimeSpan.FromSeconds(2),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseOut }
        };
        colorAnim = new ColorAnimation() {
            Duration = TimeSpan.FromSeconds(2),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseInOut }
        };
    }
    void animateSlice(object sender, RoutedEventArgs e) {
        arcGeo.Freeze();
        var arcPointAnim = new PointAnimationUsingPath() {
            PathGeometry = arcGeo,
            Duration = TimeSpan.FromSeconds(2),
            FillBehavior = FillBehavior.Stop
        };
        RenderTransform = new TransformGroup() {
            Children = {
                new ScaleTransform(1, 1) {
                    CenterX = cx,
                    CenterY = cy
                },
                new RotateTransform(360) {
                    CenterX = cx,
                    CenterY = cy
                }
            }
        };
        var scale = (RenderTransform as TransformGroup).Children[0];
        var rotate = (RenderTransform as TransformGroup).Children[1];
        scale.BeginAnimation(ScaleTransform.ScaleXProperty, scaleAndRotate);
        scale.BeginAnimation(ScaleTransform.ScaleYProperty, scaleAndRotate);
        rotate.BeginAnimation(RotateTransform.AngleProperty, scaleAndRotate);
        rotate.Changed += updateAngle;
        arc.BeginAnimation(ArcSegment.PointProperty, arcPointAnim);
    }
    void updateAngle(object sender, EventArgs e) {
        rotation = (sender as RotateTransform).Angle;
        if (rotation == 360) {
            RenderTransform = new TranslateTransform(0, 0);
        }
    }
    public void SetParameters(double cx, double cy, double radius, double startAngle, double sweepAngle, bool isLargeArc) {
        this.cx = cx;
        this.cy = cy;
        this.radius = radius;
        this.isLargeArc = isLargeArc;
        start = new Point(cx + radius * Math.Cos(startAngle), cy + radius * Math.Sin(startAngle));
        end = new Point(cx + radius * Math.Cos(startAngle + sweepAngle), cy + radius * Math.Sin(startAngle + sweepAngle));
        dx = 10 * Math.Cos(startAngle + sweepAngle / 2);
        dy = 10 * Math.Sin(startAngle + sweepAngle / 2);
        arcGeo = new PathGeometry() {
            Figures = {
                new PathFigure() {
                    StartPoint = start,
                    Segments = {
                        new ArcSegment() {
                            SweepDirection = SweepDirection.Clockwise,
                            Point = end,
                            Size = new Size(radius, radius),
                            IsLargeArc = isLargeArc
                        }
                    }
                }
            }
        };

        Draw();
    }
    void Draw() {
        figure.StartPoint = new Point(cx, cy);
        startLine.Point = start;
        arc.Point = end;
        arc.Size = new Size(radius, radius);
        arc.IsLargeArc = isLargeArc;
    }
    protected override void OnRender(DrawingContext dc) => dc.DrawGeometry(background, null, geometry);
    protected override void OnMouseEnter(MouseEventArgs e) {
        if (rotation < 360) return;
        var t = (RenderTransform as TranslateTransform);
        translateX.By = dx - t.X;
        translateY.By = dy - t.Y;
        RenderTransform.BeginAnimation(TranslateTransform.XProperty, translateX);
        RenderTransform.BeginAnimation(TranslateTransform.YProperty, translateY);
        colorAnim.To = Colors.Gray;
        background.BeginAnimation(SolidColorBrush.ColorProperty, colorAnim);
    }
    protected override void OnMouseLeave(MouseEventArgs e) {
        if (rotation < 360) return;
        var t = (RenderTransform as TranslateTransform);
        translateX.By = -t.X;
        translateY.By = -t.Y;
        RenderTransform.BeginAnimation(TranslateTransform.XProperty, translateX);
        RenderTransform.BeginAnimation(TranslateTransform.YProperty, translateY);
        colorAnim.To = original.Color;
        background.BeginAnimation(SolidColorBrush.ColorProperty, colorAnim);
    }
}

just add PieChart in MainWindow.xaml and give it a List<int>/ObservableCollection<int> as its ItemSource and you'll be able to see it clearly. In the PieSlice I've an ArcSegment and a LineSegment at start. I've tried by adding another LineSegment at the end BUT I see those stripes.

Answer 1

We can get below color referring to Colors Class:

 var white = Color.FromRgb(255, 255, 255);
 var black = Color.FromRgb(0, 0, 0);
 var red = Color.FromRgb(255, 0, 0);
 var green = Color.FromRgb(0, 255, 0);
 var blue = Color.FromRgb(0, 0, 255);

Analyze the color table and test a lot, I find that if I change your color like below, it will always get dark color.

var color = Color.FromRgb((byte)rand.Next(0, 128), (byte)rand.Next(0, 128), (byte)rand.Next(0, 128));

---

If the response is helpful, please click "Accept Answer" and upvote it.
