SCP-Autodiscover for two exchange Server

Question

Hi MS, I just installed 2 EXchange 2016 CU20
Domain local: nvp.lab
Domain Public: nvp.vn
EX1.nvp.lab: 10.10.10.1 (Databases: DB1)
EX2.nvp.lab: 10.10.10.2 (Database: DB2)
I configured Ex1, SCP:
Get-ClientAccessService -identity EX1 | Set-ClientAccessService -AutoDiscoverServiceInternalUri https://autodiscover.nvp.vn/Autodiscover/Autodiscover.xml
Get-ClientAccessService -identity EX2 | Set-ClientAccessService -AutoDiscoverServiceInternalUri https://autodiscover.nvp.vn/Autodiscover/Autodiscover.xml
DNS local config : Autodiscover-> 10.10.10.1
I have user U1-> Belongs to DB1 of EX01 currently I am configuring only 1 server ex01, virtual Directory, owa, SCP,.. ex02 not yet

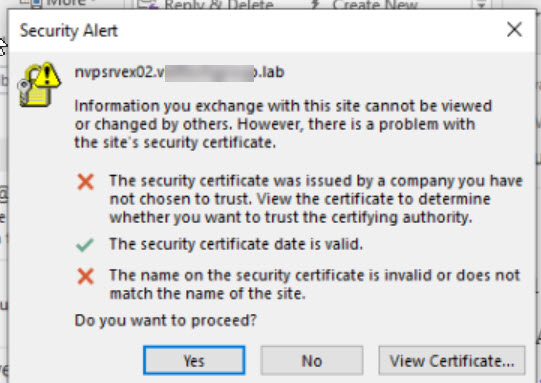

My CA public configuration ok My problem with domain local join machine when running MS outlook user u1 pop up CA SSL connection of Server EX02.nvp.lab saying do not trust. Apparently u1 on DB01 of Ex01 but reported server Ex02. As shown below.

My question is how to configure SCP, Autodiscover for 2 servers ex01, ex02 so that there is no error.
1/ SCP both Ex01, ex02 are audiscover.nvp.vn and point to 2 ips of 2 hosts (autodiscover.nvp.vn -> 10.10.10.1/2) and has the form https://autodiscover.nvp.vn/Autodiscover/Autodiscover.xml
2/ SCP Ex01: https://autodiscover-ex1.nvp.vn/Autodiscover/Autodiscover.xml and SCP Ex02: https://autodiscover-ex2.nvp.vn/Autodiscover/Autodiscover.xml
Should I configure to 1 or 2 and Mail also created 2 records because of preparing more classes for the upcoming DAG
mail.nvp.vn-> ip1 EX01
mail.nvp.vn->ip2 EX02
or mail1.nvp.vn->ip1 EX01
mail2.nvp.vn->ip2 EX02
Thanks

Answer 1

Hi @Phuong Nguyen ,

To solve the certificate warning, you can buy a third-party business certificate or import this cert to the Trusted Root: click View Certificate > Install Certificate > Local Machine > Manually Choose the Certificate store > Trusted Root Certification Authorities.
Well I guess that's not what you want.

The most import question I think, is what the Domain public and Domain local are, what's the difference, and also where you installed the Exchange server.

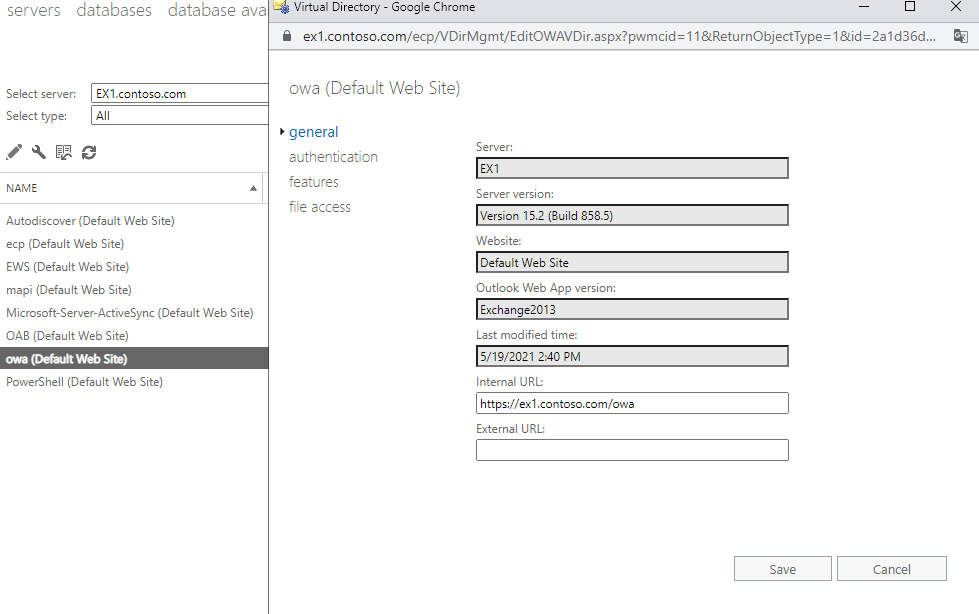

You can open the EAC and check other Virtual Directory's internal URL:

So my AutodiscoverInternalURI should be like this:

Get-ClientAccessService -identity EX1 | Set-ClientAccessService -AutoDiscoverServiceInternalUri https://ex1.contoso.com/Autodiscover/Autodiscover.xml

Replace ex1.contoso.com with your FQDN.

To check if the URL is available or not, you could copy it to a browser to see if you could login and get a 600 error like:

For your other questions, I'm sorry that I don't clearly understand what 's the point. If you wanna use both of these URLs, use the command again

Get-ClientAccessService -identity EX1 | Set-ClientAccessService -AutoDiscoverServiceInternalUri https://ex1.nvp.lab/Autodiscover/Autodiscover.xml
Get-ClientAccessService -identity EX2 | Set-ClientAccessService -AutoDiscoverServiceInternalUri https://ex2.nvp.lab/Autodiscover/Autodiscover.xml

Actually it's a default setting of SCP, and you don't have to modify.

For the DNS question, I think I should first make sure the above question.
As you are going to use the DAG, I think you could deploy the Round robin:

Public DNS:
A: Mail.domain.com -> Public IP (If you have multiple Public IPs for these servers, add corresponding A records)
CNAME: Autodiscover.domain.com : Mail.domain.com
MX: Domain.com -> Mail.domain.com

Internal DNS:
A: Mail.domain.com -> Internal IP EX1
A: Mail.domain.com -> Internal IP EX2
A: Autodiscover.domain.com -> Internal IP EX1
A: Autodiscover.domain.com -> Internal IP EX2

Best regards,
Lou

---
