How can I insert an element in a specific row in a GridLayout?

Question

I am programming an Android app and I need to create a grid with 4 rows. In each row I need to put different elements. The problem is that I can't insert the elements in the desired row. In my example the ImageButton is inserted in the first row although I want to insert it in the second row. Does anyone have a solution how to do this with XML ? Thank you

<?xml version="1.0" encoding="utf-8"?>

<GridLayout
android:id="@+id/GridLayout1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:columnCount="2"
android:orientation="horizontal"
android:rowCount="4"
tools:context=".GridXMLActivity"
tools:layout_editor_absoluteX="56dp"
tools:layout_editor_absoluteY="0dp">

    <ImageButton
       android:id="@+id/imageButton1"
       android:layout_width="160dp"
       android:layout_height="90dp"
       android:layout_row="2"
       android:layout_gravity="left|top"
       android:src="@drawable/scene1" />

</GridLayout>

Answer 1

Hello,

Welcome to our Microsoft Q&A platform!

In my example the ImageButton is inserted in the first row although I want to insert it in the second row.

There are things that need to be corrected.

1. If you want to put an ImageButton in your GridLayout in the second row, the android:layout_row should be 1，because the number of row starts at 0.:

    android:layout_row="1"


   2.If you don't place any controls before placing an ImageButton, the previous row and column positions won't take up space. That's why it looks like it's in the first place.

3.If you want to the ImageButton to look like in the second row, you can put a view in the first row, for example:

  <?xml version="1.0" encoding="utf-8"?>
<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:id="@+id/GridLayout1"
    android:columnCount="2"
    android:layout_margin="10dp"
    android:orientation="horizontal"
    android:rowCount="4">
         <View
            android:visibility="visible"
            android:layout_height="50dp"
            android:layout_width="50dp"
            android:textSize="14dip"
            android:layout_row="0"
            android:layout_column="0" />
        <ImageButton
          android:id="@+id/imageButton1"
          android:layout_width="90dp"
          android:layout_height="90dp"
          android:layout_row="1"
          android:layout_column="0"
          android:src="@drawable/image1" />
</GridLayout>

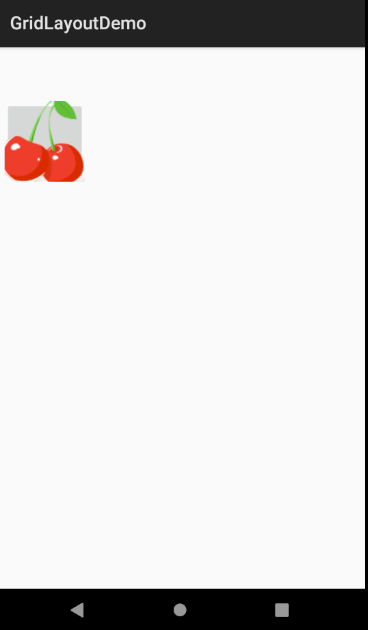

The result is:

For more details, you can check:https://learn.microsoft.com/en-us/xamarin/android/user-interface/layouts/grid-layout

Best Regards,

Jessie Zhang

---
