How to remove Top and Left Margin/Padding from Geometry/FrameworkElement?

Question

Here's two Geometry:

The left one is a Path inside a Border and the right one is Geometry drawn OnRender with a ScaleTransform. The right one always adds a Margin/Padding on Top and Left and as a result the + symbol on the bottom-right always gets out of the rectangular bound! How to remove those Margin/Padding?

Here's the code for the right one:

class ButtonWithoutBorder : FrameworkElement
{
    Geometry geometry;
    ScaleTransform transform;
    SolidColorBrush brush;
    ColorAnimation animation;
    Color normal, highlight, pressed;
    double scaleFactor, cx, cy;
    public string Icon { get; set; }
    public double Size { get; set; }
    public ButtonWithoutBorder() {
        normal = Colors.Black;
        highlight = Colors.CornflowerBlue;
        pressed = Colors.Coral;
        brush = new SolidColorBrush(normal);
        animation = new ColorAnimation() {
            Duration = TimeSpan.FromMilliseconds(250),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseInOut }
        };
        //Margin = new Thickness(0);
    }
    void animate(Color color) {
        animation.To = color;
        brush.BeginAnimation(SolidColorBrush.ColorProperty, animation);
    }
    protected override void OnInitialized(EventArgs e) {
        if (Size == 0) Size = 250;
        Width = Size;
        Height = Size;
        geometry = Geometry.Parse(Icon);
        scaleFactor = Height / geometry.Bounds.Height;
        cx = geometry.Bounds.TopLeft.X;
        cy = geometry.Bounds.TopLeft.Y;
        transform = new ScaleTransform(scaleFactor, scaleFactor) { CenterX = cx, CenterY = cy };
    }
    protected override void OnRender(DrawingContext dc) {
        dc.DrawRectangle(null, new Pen(Brushes.Red, 1), new Rect(0, 0, Width, Height));
        dc.PushTransform(transform);
        dc.DrawGeometry(brush, null, geometry);
    }
    protected override HitTestResult HitTestCore(PointHitTestParameters hitTestParameters) => new PointHitTestResult(this, hitTestParameters.HitPoint);
    protected override void OnMouseEnter(MouseEventArgs e) => animate(highlight);
    protected override void OnMouseLeave(MouseEventArgs e) => animate(normal);
    protected override void OnMouseLeftButtonDown(MouseButtonEventArgs e) => animate(pressed);
    protected override void OnMouseLeftButtonUp(MouseButtonEventArgs e) => animate(highlight);
}

and here's the left one:

class ButtonWithBorder : Border
{
    SolidColorBrush brush;
    ColorAnimation animation;
    Color normal, highlight, press;
    public string Icon { get; set; }
    public double Size { get; set; }
    public ButtonWithBorder() {
        normal = Colors.Black;
        highlight = Colors.CornflowerBlue;
        press = Colors.Coral;
        brush = new SolidColorBrush(normal);
        animation = new ColorAnimation() {
            Duration = TimeSpan.FromMilliseconds(250),
            EasingFunction = new CubicEase() { EasingMode = EasingMode.EaseInOut }
        };
        BorderBrush = Brushes.Red;
        BorderThickness = new Thickness(1);
        Background = Brushes.Transparent;
        Child = new Path() {
            Fill = brush,
            Stretch = Stretch.Uniform
        };
        Loaded += onLoaded;
    }
    void onLoaded(object sender, RoutedEventArgs e) {
        if (Size == 0) Size = 250;
        Width = Size;
        Height = Size;
        ((Path)Child).Data = Geometry.Parse(Icon);
    }
    void animate(Color color) {
        animation.To = color;
        brush.BeginAnimation(SolidColorBrush.ColorProperty, animation);
    }
    protected override void OnMouseEnter(MouseEventArgs e) => animate(highlight);
    protected override void OnMouseLeave(MouseEventArgs e) => animate(normal);
    protected override void OnMouseLeftButtonDown(MouseButtonEventArgs e) => animate(press);
    protected override void OnMouseLeftButtonUp(MouseButtonEventArgs e) => animate(highlight);
}

You can use it in MainWindow.xaml like this:

<Grid>
    <Grid.Resources>
        <System:String x:Key="icon">M18,14H20V17H23V19H20V22H18V19H15V17H18V14M12,3C16.42,3 20,4.79 20,7C20,9.21 16.42,11 12,11C7.58,11 4,9.21 4,7C4,4.79 7.58,3 12,3M4,9C4,11.21 7.58,13 12,13C16.42,13 20,11.21 20,9V9L20,12.08L19,12C16.41,12 14.2,13.64 13.36,15.94L12,16C7.58,16 4,14.21 4,12V9M4,14C4,16.21 7.58,18 12,18H13C13,19.05 13.27,20.04 13.75,20.9L12,21C7.58,21 4,19.21 4,17V14Z</System:String>
    </Grid.Resources>
    <Grid.ColumnDefinitions>
        <ColumnDefinition/>
        <ColumnDefinition/>
    </Grid.ColumnDefinitions>
    <local:ButtonWithBorder Icon="{StaticResource icon}"/>
    <local:ButtonWithoutBorder Grid.Column="1" Icon="{StaticResource icon}"/>
</Grid>

Answer 1

Please update your line 32 and line 33 in ButtonWithoutBorder.cs as below:

cx = (geometry.Bounds.TopLeft.X)*1.1;
cy = (geometry.Bounds.TopLeft.Y)*1.1;

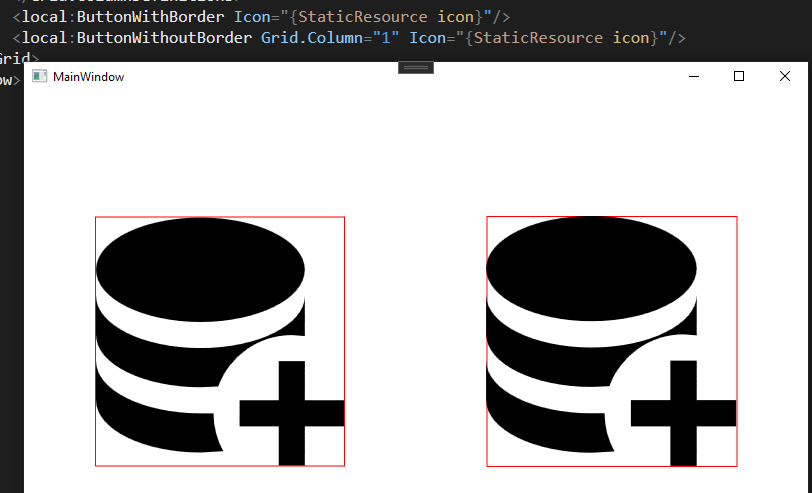

It will run like:

---
