How to make TabControl and TabItem with raounded corner?

Question

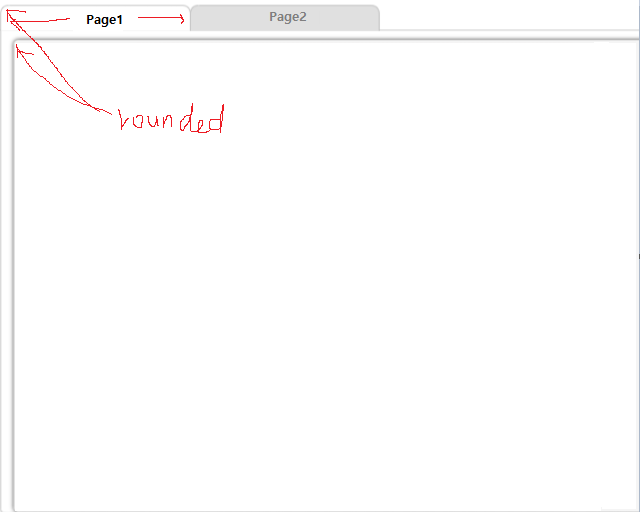

I want to make TabControl and TabItems with rounded corner.
And make the width of the TabItem bigger than default.
How to do this?

Answer 1

The TabControl that comes with Winform does not support this setting.

You can customize a TabControl and redraw this control.

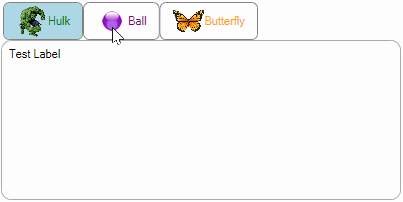

Rounded corners for a Tab Control (WinForms)

Or you can create a WPF user control and use it in your project.

    <Grid>
        <TabControl Margin="10" BorderBrush="Gainsboro">
            <TabControl.Resources>
                <Style TargetType="TabItem">
                    <Setter Property="Template">
                        <Setter.Value>
                            <ControlTemplate TargetType="TabItem">
                                <!--The four values of CornerRadius represent the four corners of the TabItem.-->
                                <Border Name="Border" BorderThickness="1,1,1,0" BorderBrush="Gainsboro" CornerRadius="8,8,0,0" Margin="2,0">
                                    <ContentPresenter x:Name="ContentSite"
                                        VerticalAlignment="Center"
                                        HorizontalAlignment="Center"
                                        ContentSource="Header"
                                        Margin="10,2"/>
                                </Border>
                                <ControlTemplate.Triggers>
                                    <Trigger Property="IsSelected" Value="True">
                                        <Setter TargetName="Border" Property="Background" Value="LightSkyBlue" />
                                    </Trigger>
                                    <Trigger Property="IsSelected" Value="False">
                                        <Setter TargetName="Border" Property="Background" Value="GhostWhite" />
                                    </Trigger>
                                </ControlTemplate.Triggers>
                            </ControlTemplate>
                        </Setter.Value>
                    </Setter>
                </Style>
            </TabControl.Resources>
            <TabItem Header="General">
                <Label Content="Content goes here..." />
            </TabItem>
            <TabItem Header="Security" />
            <TabItem Header="Details" />
        </TabControl>
    </Grid>

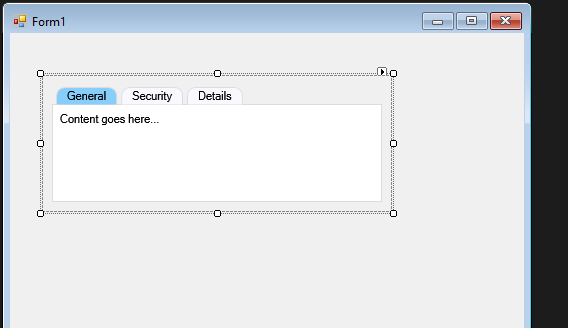

This is a simple example. If you have more requirements for this control, you can post a new question with the windows-wpf tag.

---

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

You can embed a Tab Control with ElementHost Class :
