Android Issues Recording Audio in Xamarin using Plugin.AudioRecorder

Question

I have successfully utilised NateRickard's three year old Nuget Plugin.AudioRecorder to make audio recordings and play them back.
I have been careful to set both StopRecordingOnSilence and StopRecordingAfterTimeout to false to allow extended recordings that can only finish on a button click.
The app works perfectly on my physical iOS device, but not on my Android device.
I have a DisplayAlert that shows the file path to the newly recorded audio, which on the Android device comes up as blank.
I will post here my AudioPage.xaml.cs, MainActivity.cs and AndroidManifest.xml as I believe my issue lies somewhere here. Any help would be greatly appreciated.

AudioPage.xaml.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

using Xamarin.Forms;
using Xamarin.Forms.Xaml;
using Xamarin.Essentials;
using Plugin.AudioRecorder;

namespace HandsFreeNotes.View
{
    [XamlCompilation(XamlCompilationOptions.Compile)]
    public partial class AudioPage : ContentPage
    {
        private readonly AudioRecorderService audioRecorderService = new AudioRecorderService()
        {
            StopRecordingOnSilence = false,
            StopRecordingAfterTimeout = false
        };
        private readonly AudioPlayer audioPlayer = new AudioPlayer();

        public AudioPage()
        {
            // add a bit of padding to cater to the "notch" on the iPhone.
            if (Device.RuntimePlatform == Device.iOS) { Padding = new Thickness(0, 40, 0, 0); }

            InitializeComponent();
        }

        private async void BackButton_Clicked(object sender, EventArgs e)
        {
            await Navigation.PopModalAsync();
        }

        async void RecordNewAudio_Clicked(object sender, EventArgs e)
        {
            var status = await Permissions.RequestAsync<Permissions.Microphone>();

            if (status != PermissionStatus.Granted)
                return;

            if (audioRecorderService.IsRecording)
            {

                await audioRecorderService.StopRecording();

                AudioImage.Source = "flatlineblue.png";
                RecordNewAudio.Text = "Record New Audio";
                RecordNewAudio.TextColor = Color.Black;

                try
                {
                    // Use default vibration length
                    Vibration.Vibrate();
                }
                catch (FeatureNotSupportedException ex)
                {
                    // Feature not supported on device
                    // await DisplayAlert("Alert", "Vibrate is not supported on this device", "Continue");
                }
                catch (Exception ex)
                {
                    // Other error has occurred.
                    // await DisplayAlert("Alert", "Vibrate is not supported on this device", "Continue");
                }

                // audioPlayer.Play(audioRecorderService.GetAudioFilePath());
                await DisplayAlert("Alert", "Recorded audio is at: " + audioRecorderService.GetAudioFilePath(), "Continue");
            }
            else
            {
                try
                {
                    // Use default vibration length
                    Vibration.Vibrate();
                }
                catch (FeatureNotSupportedException ex)
                {
                    // Feature not supported on device
                    // await DisplayAlert("Alert", "Vibrate is not supported on this device", "Continue");
                }
                catch (Exception ex)
                {
                    // Other error has occurred.
                    // await DisplayAlert("Alert", "Vibrate is not supported on this device", "Continue");
                }

                AudioImage.Source = "audiocrop.gif";
                RecordNewAudio.Text = "Recording... Press to Finish";
                RecordNewAudio.TextColor = Color.Red;

                await audioRecorderService.StartRecording();

            }

        }

        private void PlaySelectedAudioButton_Clicked(object sender, EventArgs e)
        {
            try
            {
                Vibration.Vibrate();
                audioPlayer.Play(audioRecorderService.GetAudioFilePath());
            }
            catch (Exception ex)
            {
                // an error has occurred.
            }


        }
    }
}

MainActivity.cs

using System;

using Android.App;
using Android.Content.PM;
using Android.Runtime;
using Android.OS;
using AndroidX.Core.Content;
using Android;
using AndroidX.Core.App;

namespace HandsFreeNotes.Droid
{
    [Activity(Label = "HandsFreeNotes", Icon = "@drawable/hfn256x256", Theme = "@style/MainTheme", MainLauncher = false, ConfigurationChanges = ConfigChanges.ScreenSize | ConfigChanges.Orientation | ConfigChanges.UiMode | ConfigChanges.ScreenLayout | ConfigChanges.SmallestScreenSize )]
    public class MainActivity : global::Xamarin.Forms.Platform.Android.FormsAppCompatActivity
    {
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);

            // Added these lines for RecordAudio Permissions per LeonLu-MSFT 22/07/2021

            if (ContextCompat.CheckSelfPermission(this, Manifest.Permission.RecordAudio) != Permission.Granted)
            {
                ActivityCompat.RequestPermissions(this, new String[] { Manifest.Permission.RecordAudio }, 1);
            }
            // CrossMediaManager.Current.Init(this);  // I'm not using CrossMediaManager


            Xamarin.Essentials.Platform.Init(this, savedInstanceState);
            global::Xamarin.Forms.Forms.Init(this, savedInstanceState);
            LoadApplication(new App());
        }
        public override void OnRequestPermissionsResult(int requestCode, string[] permissions, [GeneratedEnum] Android.Content.PM.Permission[] grantResults)
        {
            Xamarin.Essentials.Platform.OnRequestPermissionsResult(requestCode, permissions, grantResults);

            base.OnRequestPermissionsResult(requestCode, permissions, grantResults);
        }
    }
}

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" android:versionCode="1" android:versionName="1.0" package="net.grime.apps.handsfreenotes">
    <uses-sdk android:minSdkVersion="21" android:targetSdkVersion="30" />
    <application android:label="HandsFreeNotes.Android" android:theme="@style/MainTheme"></application>
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

  <!--  Added these lines to cater to collecting Geolocation through Xamarin Essentials. GMB 11/06/2021, then 25/06/2021
    https://learn.microsoft.com/en-us/xamarin/essentials/geolocation?context=xamarin%2Fxamarin-forms&tabs=android-->

    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-feature android:name="android.hardware.location" android:required="false" />
    <uses-feature android:name="android.hardware.location.gps" android:required="false" />
    <uses-feature android:name="android.hardware.location.network" android:required="false" />

  <!-- Added the following lines to allow for the sending of email through Xamarin Essentials. GMB 13/05/2021
      https://learn.microsoft.com/en-us/xamarin/essentials/email?context=xamarin%2Fxamarin-forms&tabs=android -->

  <queries>
    <intent>
      <action android:name="android.intent.action.SENDTO" />
      <data android:scheme="mailto" />
    </intent>
  </queries>

  <!-- Added the following lines to allow for the recording and playback of audio. GMB 07/07/2021
      Gerald Versluis: https://www.youtube.com/watch?v=2V8J7v3FP78 -->

  <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
  <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
  <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
  <uses-permission android:name="android.permission.RECORD_AUDIO" />

  <!-- Added the following lines to allow for Vibrate through Xamarin Essentials. GMB 08/07/2021
      https://learn.microsoft.com/en-us/xamarin/essentials/email?context=xamarin%2Fxamarin-forms&tabs=android -->

  <uses-permission android:name="android.permission.VIBRATE" />

</manifest>





Answer 1

Hello,​

Welcome to our Microsoft Q&A platform!

I test await DisplayAlert("Alert", "Recorded audio is at: " + audioRecorderService.GetAudioFilePath(), "Continue");, I get the empty path as well.

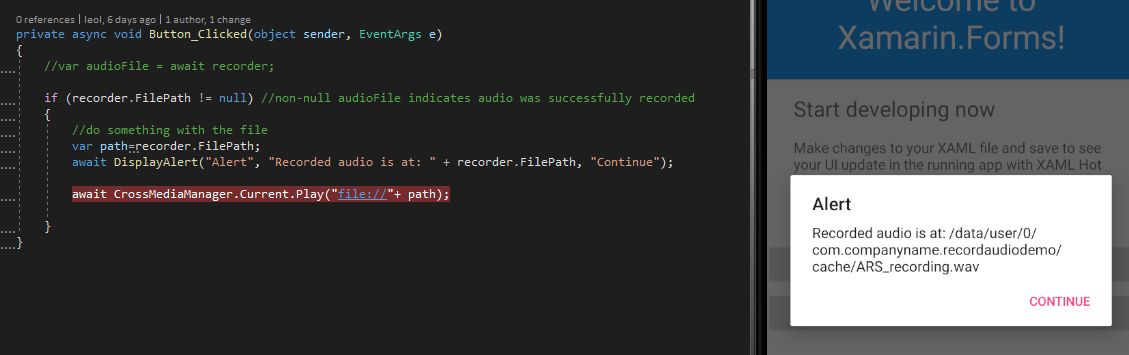

But I use await DisplayAlert("Alert", "Recorded audio is at: " + recorder.FilePath, "Continue"); I can get the file path. (Note: recorder is the same as your audioRecorderService )

Best Regards,

Leon Lu

---

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
