Negative error bars are not showing in excel line graphs

Anonymous
2018-02-22T04:50:43+00:00

Hi I am presenting one of my works at one of the prestigious institutes and stuck in the developing negative error bars for a line graph.

It only shows the positive error bars. Please help ASAP.

Thanks

Microsoft 365 and Office | Excel | For business | Other

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments
Answer accepted by question author
  1. Anonymous
    2018-02-22T13:34:11+00:00

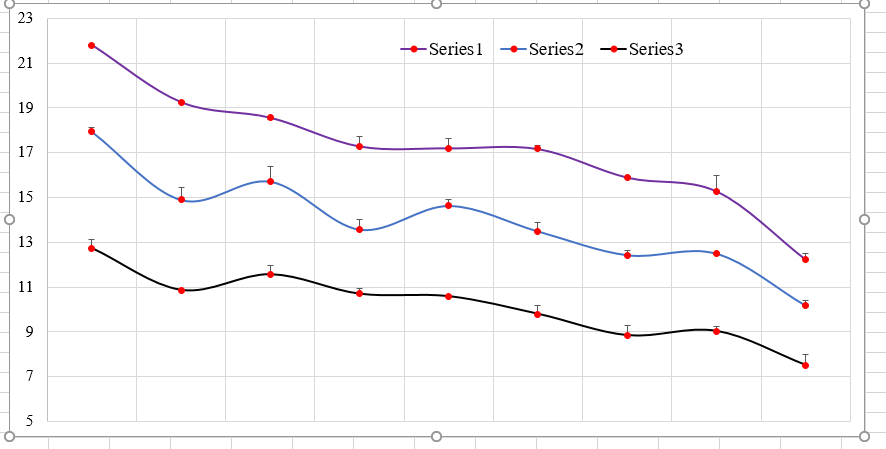

    Your mistake was in using negative numbers for the 'down bars'

    Excel knows the negative ones go down and subtracts the error bar data from the data point value

    If the pos and neg error bars are the same you can get away with one column of values

    best wishes

    8 people found this answer helpful.
    0 comments

5 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2018-02-22T09:59:15+00:00

    1.  Can you share your input data pls ?

         You can replace your confidential data with some dummy data (if required).

    2.  What Chart Type are you using ?

    3.  What Excel version are you using ?

    0 comments
  2. Anonymous
    2018-02-22T10:56:32+00:00

    Hi Rajesh

    Thanks for the reply. data is as follows

    This only shows the positive error bar. This is line graph and I am using the office 365 pro plus.

    data Positive error bar Negative error bar
    R1 12 0.37 -0.37
    R2 10 0.02 -0.02
    R3 11 0.41 -0.41
    R4 11 0.26 -0.26
    R5 12 0.05 -0.05
    R6 5 0.40 -0.40
    R7 7 0.43 -0.43
    R8 6 0.21 -0.21
    R9 7 0.48 -0.48
    0 comments
  3. Anonymous
    2018-02-22T11:09:25+00:00

    Hi Ali,

    Currently I am a bit busy in some urgent assignment at my office and may need a day or two to work on your query. However, in the mean time I suggest you to have a look at the following site - I am sure it will give you the path which will help you solve the problem.

    https://peltiertech.com/floating-bars-excel-charts/

    Hope this Helps.

    0 comments
  4. Anonymous
    2018-02-22T13:32:54+00:00

    Hi Ali,

    I used your data to insert the line chart and it does show the negative value.

    Since you are getting the issue, please provide the following information to help you:

    1. Please provide the screenshot of Office 2016 Product Information. To get this screenshot, open Excel 2016 on your system, click File>Account, capture the screenshot of all the information mentioned under Product Information.
    2. Provide the step by step detail you’ve taken to insert the chart.

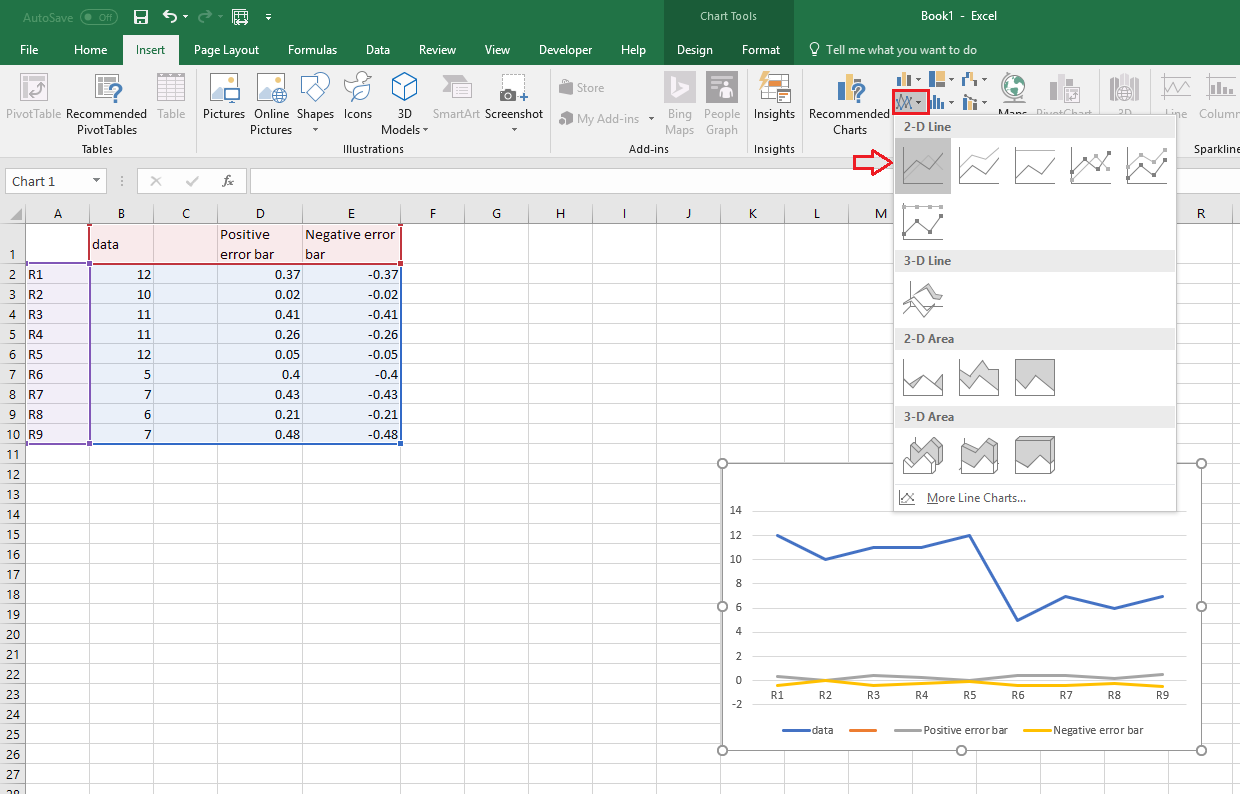

    3. Could you please provide screenshot of the data with the chart as I have attached above?

    Thanks,

    Neha

    0 comments
