Image Display based on cell data

Question

I have several projects where I am creating a QR code for items in our plant.

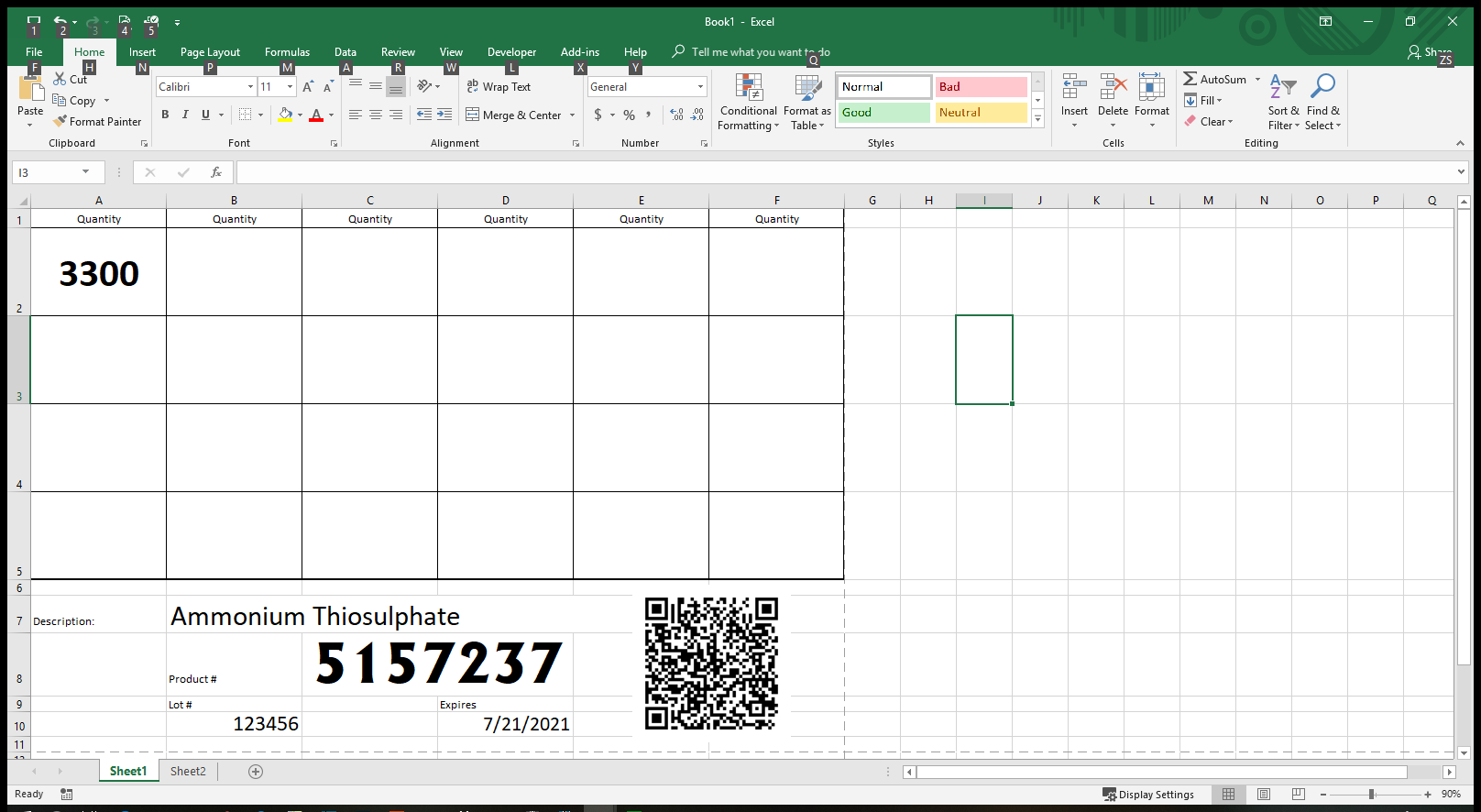

I would like to create tags in Excel to be able identify the products. I want those tags

to include the QR Code that corresponds with the information in the  Product # cell.

The QR images are named the same as the 7 digit product number and kept in their own directory.

.

Ex: (path)/QRCodes/5157237.png

I am a hardware guy and couldn't code myself out of a wet paper bag.

Answer 1

Thank You!

The sub I tried to use had a me statement that did not work.

Give it a go tomorrow after my meeting.

Answer 2

Here's some code that will insert an image based on a selection dialog. I pulled it out of an existing routine, so you might need to tweak it a bit to suit your needs.

Public ImageName as Variant

Sub AddImage()

  Call GetImage

    '   Insert the selected image and resize it & the row to the same height

        Set pic = ActiveSheet.Pictures.Insert(ImageName)

        pic.Select

        Selection.ShapeRange.Height = 144

        ActiveCell.RowHeight = 144

End Sub

Sub GetImage(Optional KeepOut As Byte)

    Dim Filt As String, Title As String

    Dim FilterIndex As Integer, Response As Integer

    '   Set Drive letter

        'ChDrive "C:"

    '   Set to Specified Path\Folder

        'ChDir "C:\Documents and Settings\All Users\Desktop"

    '   Set File Filter

        Filt = "Image Files (*.jpg), *.jpg"

    '   Set *.* to Default

        FilterIndex = 5

    '   Set Dialogue Box Caption

        Title = "Please select a image for this item"

    '   Get FileName

        ImageName = Application.GetOpenFilename  '(FileFilter:=Filt, _

            FilterIndex:=FilterIndex, Title:=Title)

    '   Exit if Dialogue box cancelled

        If ImageName = False Then

            Response = MsgBox("No Image was selected", vbOKOnly & vbCritical, "Selection Error")

            If Range("imagecount").Value = 0 Then

               Range("rng_ImageArea").EntireRow.Hidden = True

            Else

                ActiveCell.EntireRow.Hidden = True

            End If

        '   END to KILL the entire process

            End

        End If

    '   Display Full Path & File Name

        'Response = MsgBox("You selected " & ImageName, vbInformation, "Proceed")

    '   Open Selected Workbook

        'Workbooks.Open FileName

End Sub
