Creating a table that lists figures, tables, and equations

Anonymous
2019-05-29T00:08:34+00:00

I'm writing a document that has equations, figures, and tables. Right now I have a separate list for each group, but I would like to combine them into one. Is there any way to do that automatically, or do I have to make it manually?

Microsoft 365 and Office | Word | For home | Windows

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments
Answer accepted by question author
  1. Suzanne S Barnhill 275K Reputation points MVP Volunteer Moderator
    2019-05-29T12:48:37+00:00

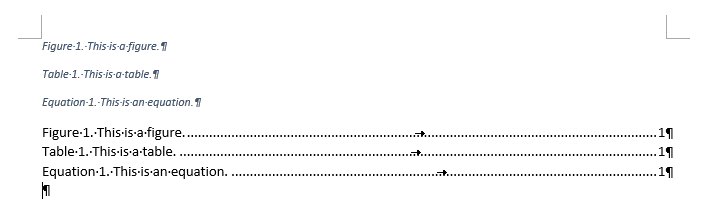

    Instead of creating separate lists based on the caption label, create a single list based on the Caption style. It will then include all captions.

    In the Table of Figures dialog, click Options... In the Table of Figures Options dialog, the Caption style should already be displayed (if the document contains captions). Check the box beside it, then click OK twice to insert your combined list of figures, tables, and equations.

    7 people found this answer helpful.
    0 comments

1 additional answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Doug Robbins - MVP - Office Apps and Services 322.1K Reputation points MVP Volunteer Moderator
    2019-05-29T00:39:14+00:00

    It would have to be done manually after selecting each of the separate tables and then pressing CTRL+SHIFT+F9 to convert them to ordinary text.  As subsequent modifications of the document will not result in the table being updated, you should make sure that you have finished editing the document before implementing the above procedure.

    0 comments
