Duplicate Tables in MS Access

Question

I am baffled.

I have been using MS Access for years and thought I was good at it. I have come across an issue today though which I cannot solve.

There is a central Table in my database called "Data", with all of the my relationship tables linking into it.

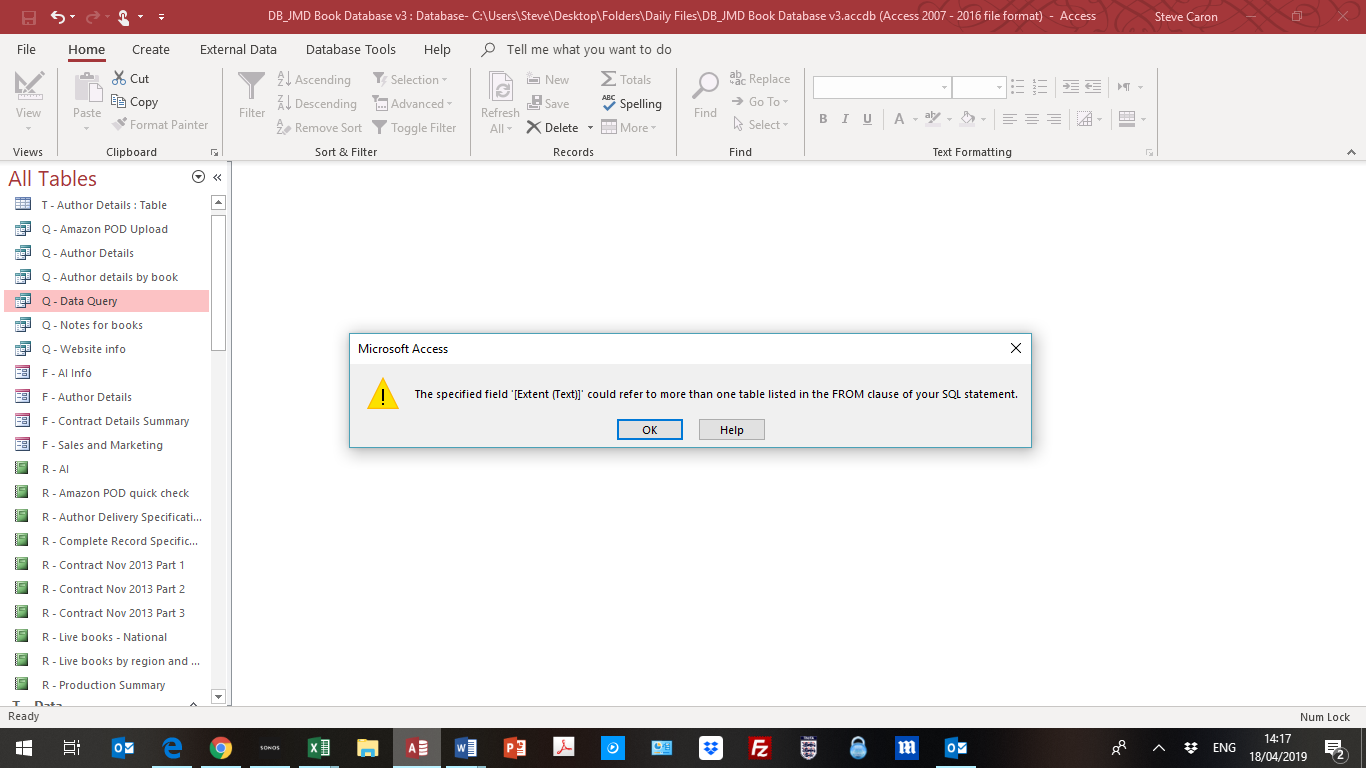

Today I added a new relationship table and managed the relationships as usual. When running a query though, it appears that the original 'Data' table has been duplicated in the background. When I tried to run a query it told me that I had to specify which table a particular field came from. (Image one) It was originally only in the main Data table.

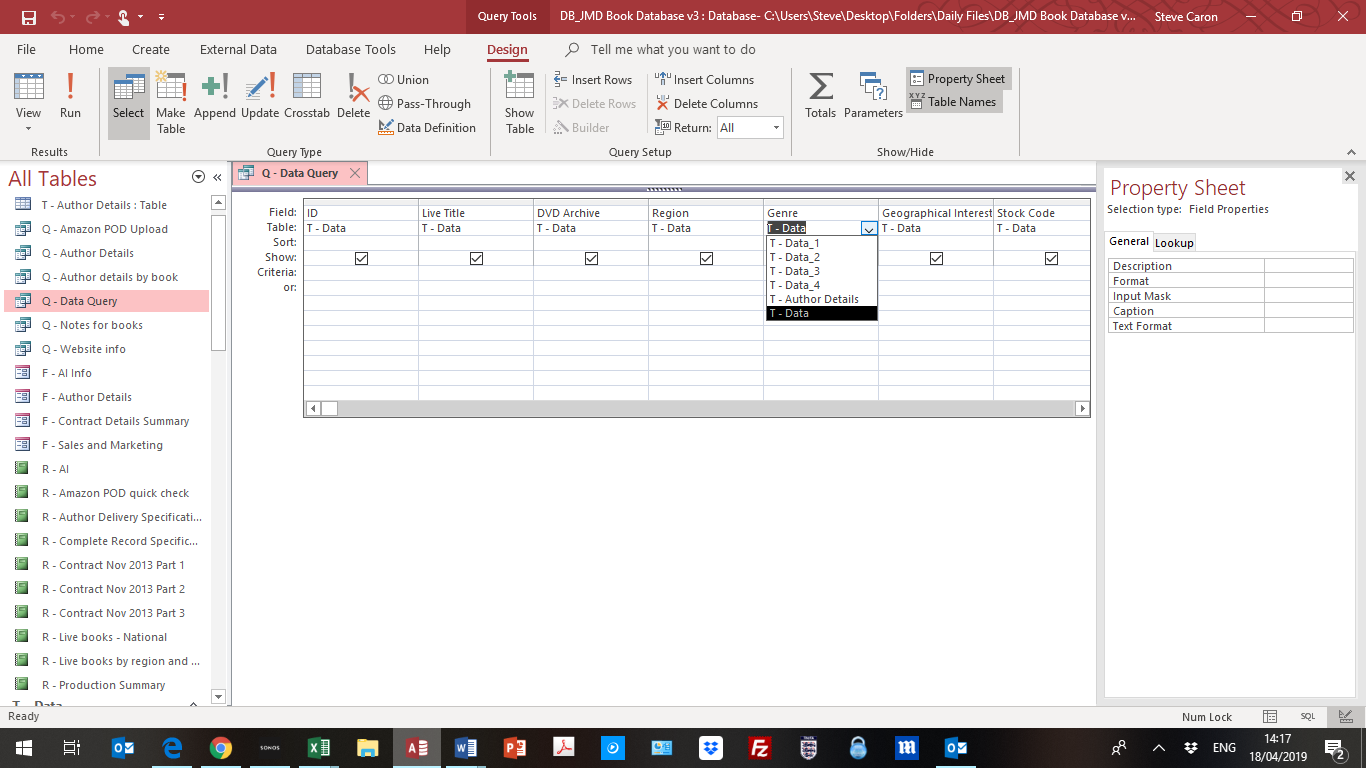

Looking at a query, I can see when I try to amend a field there are now 4 additional "Data" tables that I can choose, but I cannot find them anywhere to delete them. (Image two) Any ideas?

I have attached the two screenshots that illustrate the issue.

Answer 1

This may be a simple matter of expanding the table pane in Query Design View. Look at the screen shot, there is a thick line above the grid with several dots in the middle. Position the cursor on that line until it becomes a two headed arrow, then drag it down. that should show the table pane. You can then right click  on the aliases and choose remove.

Answer 2

I realise what I have done. Within the query, under the design tab, I clicked on the show table icon and selected data. I must have done it four times (now five). I cannot see a way of removing them now.

Help still needed.

Answer 3

You should be able to remove those aliased tables in Design view of your query. Just select the table and Delete it in the Query Design window.

Answer 4

Hi Scott

Thanks for this, but I cannot see where to delete the tables in the query design window.

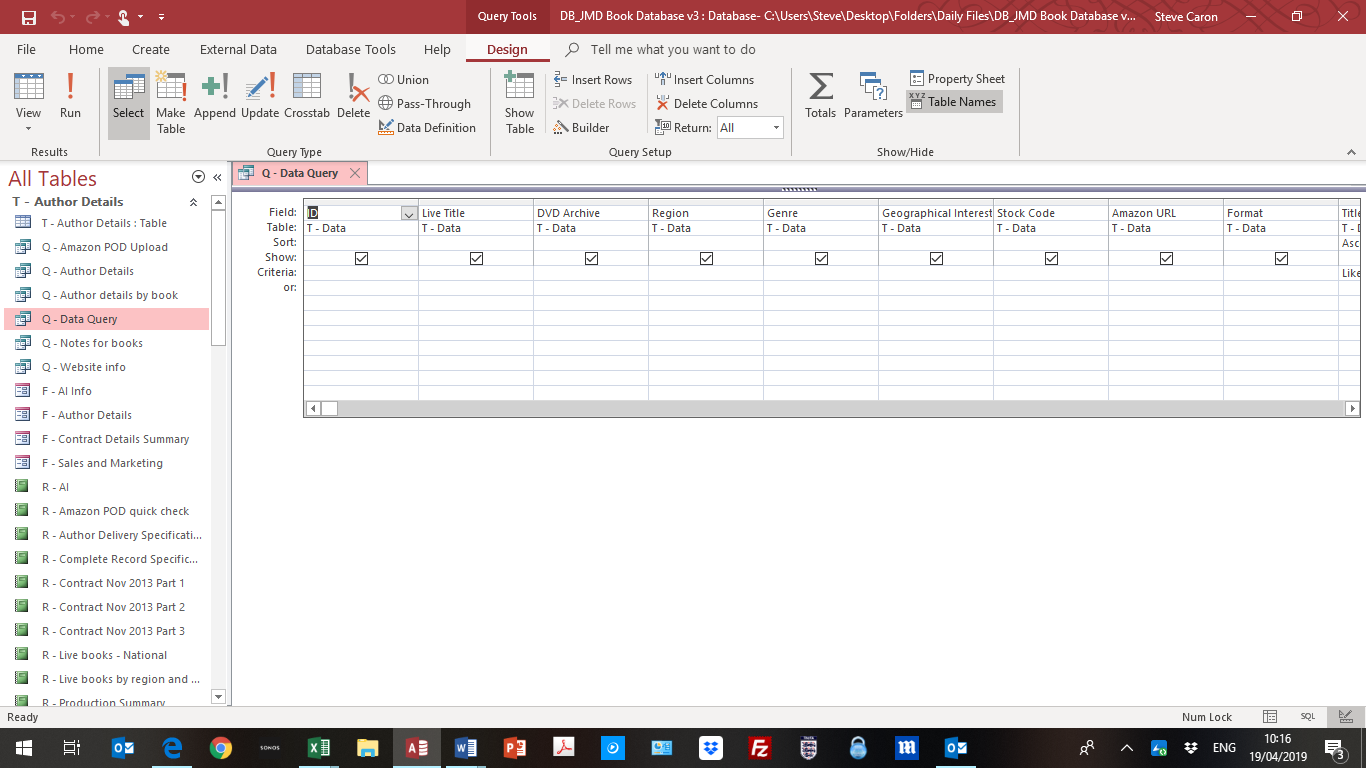

See screenshot for what I can see under the design tab. I cannot see anywhere to delete these aliases. Is it in this tab or should I be looking elsewhere?

Answer 5

Sorry, see screenshot
