How to add subtitle for a chart in excel

Question

How can I add a subtitle or multiple titles for a chart similar to the Chart title?

Answer 1

Dear Sridevi Grandhi,

Good day!!

I understand your requirement i.e., you would like to add a subtitle to the Excel charts similar to the chart title. AFAIK, there is no option in the Excel charts to insert the subtitles but as a workaround, you can use the Text Boxfeature in the Excel app to insert the box on the chart and enter the text.

However, since you require to perform on multiple charts, I believe you can meet your requirement using Macro VBA, so please try to post your concern in the VBA community. Reference: https://learn.microsoft.com/en-us/office/vba/articles/feedback-support

Thanks for understanding.

Regards,

Answer 2

Hi,

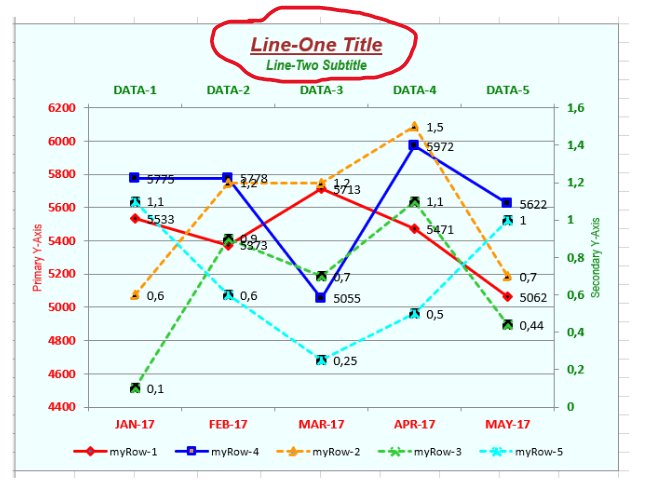

Split title in two sections

and add the 2nd line as subtitle

vba code

'..............

'.............

Dim obj As ChartObject

Set obj = ActiveSheet.ChartObjects(1)

Dim c As Chart

Set c = obj.Chart

With c

.HasTitle = True

With .ChartTitle

.Text = "Line-One Title" & vbCr & "Line-Two Subtitle"

With .Characters(1, 14).Font

.Size = 16

.Name = "Arial"

.Italic = True

.Color = RGB(165, 42, 42)

.Underline = True

End With

With .Characters(15, 31).Font

.Size = 12

.Name = "Arial Narrow"

.Italic = True

.Color = RGB(34, 139, 34)

End With

End With

End With

'.............

'............
