Small Basic 3D

Question

hi, i'm doing some tests in ld3dview and i should this code work right?

While ("True")
Program.Delay(10)
pos = LD3DView.GetPosition(view3D,cube)
pos[1] = pos[1] + 0.5
LD3DView.TranslateGeometry(view3D,cube,pos[1],pos[2],pos[3])
EndWhile

but it doesn't work and the cube keeps "flicking"
can someone tell me why?

Answer 1

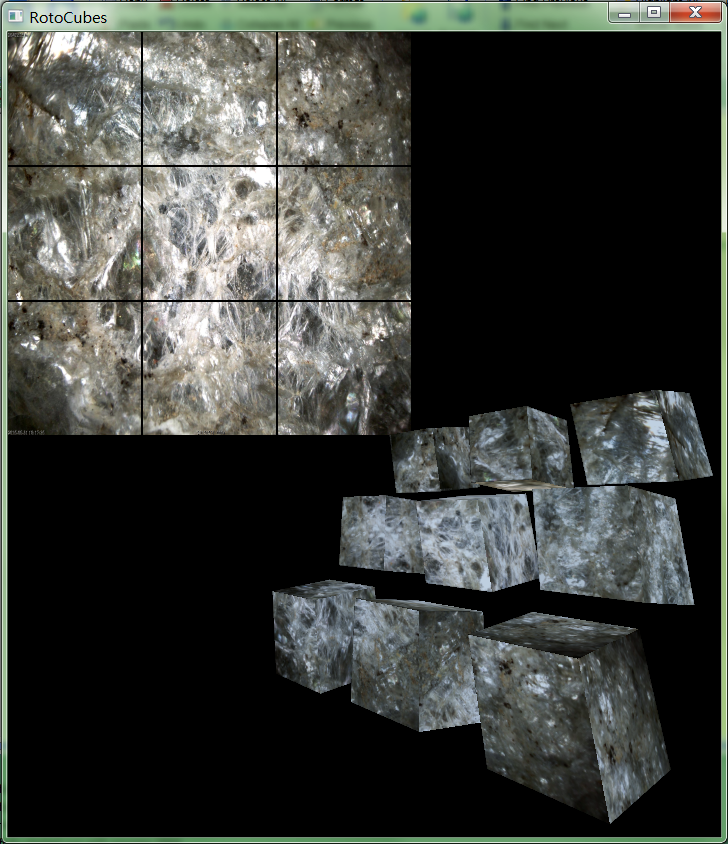

I have extended tryhest's program RotoCubes with an animation that uses "LD3DView.GetPosition" and "LD3DView.TranslateGeometry".

The mouse functions and the "Shift" and "Ctrl" keys can be used for navigation.

LDUtilities.CurrentCulture = "en-us"
GraphicsWindow.Width=900
GraphicsWindow.Height=GraphicsWindow.Width
sset()
GraphicsWindow.Title="RotoCubes"
GraphicsWindow.BackgroundColor ="Black"

view3D = LD3DView.AddView(600,600,"True") 'Will not clip to size if window rescaled'
LD3DView.AddDirectionalLight(view3D,"white",1,1,1)
LD3DView.AddAmbientLight(view3D,"#88aabbcc")
LD3DView.AutoControl ("true" "true",-1,3)
LD3DView.ResetCamera(view3D,-100,50,60, 5, 0, -3, "","","")
rf=1
For x=1 to 3
  For y=1 To 3
    cc[x][y]=LD3DView.AddCube (view3D 5 "Black" "D")
    LD3DView.AddImage (view3D cc[x][y] "" im[x][y] "D")
    LD3DView.TranslateGeometry (view3D  cc[x][y], -x*10, 0 , -y*10)
    LD3DView.AnimateRotation  (view3D  cc[x][y] 0 0 1 0 360*rf 3 ,-1)
    rf=rf*(-1)
EndFor
endfor

While ("True")
 For x=1 to 3
    For y=1 To 3
      For Z = 1 To 90
        pos = LD3DView.GetPosition(view3D,cc[x][y])
        pos[3]= pos[3] + 0.707
        LD3DView.TranslateGeometry(view3D,cc[x][y],pos[1],pos[2],pos[3])
        Program.Delay(8)
      Endfor
    EndFor
  endfor
 Program.Delay(2000)
 For x=3 to 1 Step -1
    For y=3 To 1 Step -1
      For Z = 1 To 90
        pos = LD3DView.GetPosition(view3D,cc[x][y])
        pos[3]= pos[3] - 0.707
        LD3DView.TranslateGeometry(view3D,cc[x][y],pos[1],pos[2],pos[3])
        Program.Delay(8)
      Endfor
    EndFor
  endfor
  Program.Delay(2000)
EndWhile

Sub sset
  'ii=Flickr.GetRandomPicture ("sun")'
  'img= ImageList.LoadImage (ii)'
  img= ImageList.LoadImage (Program.Directory + "\Glimmer_of_SB.jpg")
  LDImage.Resize (img 400 400)
  im0=LDImage.Copy(img)
  im=LDImage.SplitImage (img 3 3)
  i=1
  ys=ImageList.GetHeightOfImage (im[1][2])+2
  xs=ImageList.GetWidthOfImage  (im[1][3])+2
  For x=1 To 3
    For y=1 To 3
      mm[i] = Shapes.AddImage  (im[x][y])
      Shapes.Move (mm[i] (x-1)*xs (y-1)*ys)
      LDShapes.SetShapeEvent (mm[i])
      amm[x][y]=i
      i=i+1
    EndFor
  EndFor
EndSub

The program needs the picture in the program directory
"Glimmer_of_SB.JPG"
