Setting rfc3021 IP address via powershell

Question

Hi,

We are using RFC3021 compatible IP subnets (ie. /31 or /32). Hosts are directly connected to routers via L2 separation layer.

For example subnet: 192.168.1.2/31

GW: 192.168.1.2
HOST: 192.168.1.3
MASK: 255.255.255.254

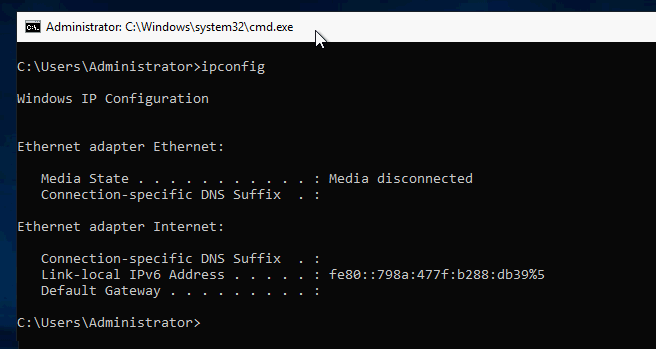

Windows OS's do not suppport RFC3021 officialy. For example DHCP client dosen't work with the above subnet:

But setting this IP statically with changed subnet/prefix to 255.255.255.255 (/32) works from Windows Server 2008 to Windows Server 2019.
(I call this on-link setup - same as in Linux world).

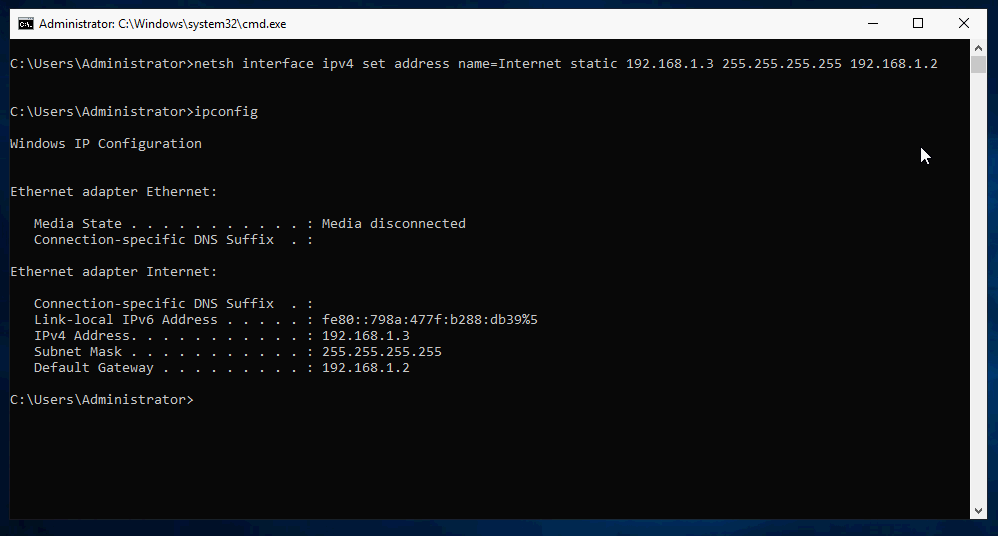

Setting this example address via netsh - no problem:

Setting this same address via UI - with warning, but no other problems:

Result after hitting "Yes":

But setting this address via PowerShell (with prefix 31):

New-NetIPAddress -AddressFamily IPv4 -IPAddress 192.168.1.3 -PrefixLength 31 -DefaultGateway 192.168.1.2 -InterfaceAlias "Internet"
New-NetIPAddress : The parameter is incorrect.
At line:1 char:1

• New-NetIPAddress -AddressFamily IPv4 -IPAddress 192.168.1.3 -PrefixLe ...
• ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
• CategoryInfo : InvalidArgument: (MSFT_NetIPAddress:ROOT/StandardCimv2/MSFT_NetIPAddress) [New-NetIPAddress], CimException
• FullyQualifiedErrorId : Windows System Error 87,New-NetIPAddress

or with prefix 32:

New-NetIPAddress -AddressFamily IPv4 -IPAddress 192.168.1.3 -PrefixLength 32 -DefaultGateway 192.168.1.2 -InterfaceAlias "Internet"
New-NetIPAddress : DefaultGateway 192.168.1.2 is not on the same network segment (subnet) that is defined by the IP address 192.168.1.3 and PrefixLength 32.
At line:1 char:1

• New-NetIPAddress -AddressFamily IPv4 -IPAddress 192.168.1.3 -PrefixLe ...
• ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
• CategoryInfo : InvalidArgument: (MSFT_NetIPAddress:ROOT/StandardCimv2/MSFT_NetIPAddress) [New-NetIPAddress], CimException
• FullyQualifiedErrorId : Windows System Error 87,New-NetIPAddress

Both trigger above errors.

I tried to use "-ErrorAction" to "force" this configuration - but no success.

My question is: could this address be setup via powershell? Or is it not supported? (two other configuration interfaces work OK)

Best regards

Answer 1

You could definitely file a bug, but that could take weeks/months to fix in the code. I'd recommend simply using netsh in your PowerShell script/code.

Answer 2

It doesnt seem to matter what the prefix is, it seems that the default gateway is the cause. I still get:
New-NetIPAddress : DefaultGateway 192.168.254.2 is not on the same network segment (subnet) that is defined by the IP address 5.5.5.5 and PrefixLength 24.
