If you want to use the actual size of the icon then the static control should have the SS_REALSIZEIMAGE style. Or is the problem related to the view in the Dialog Editor?
Static control displays 16x16 icon as 32x32 if created at design time???
drjackool
956
Reputation points
Hi
Visual C++ dialog designer
All question in title, How solve this problem? I have problem to design and arrange the controls because the static icon is not displayed on 16x16 and overllaped it's right static text.
Thanks
Developer technologies | C++
2 answers
Sort by: Most helpful
-
RLWA32 49,746 Reputation points2021-08-23T08:46:44.583+00:00 -
Castorix31 90,696 Reputation points2021-08-23T09:16:02.467+00:00 > Or is the problem related to the view in the Dialog Editor?

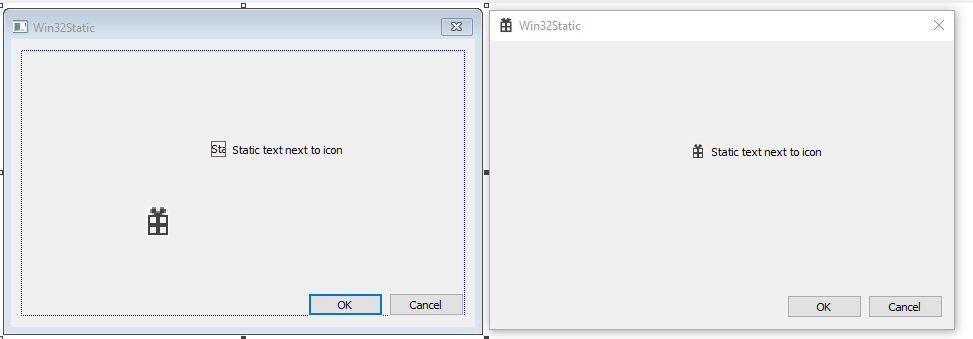

It seems to be the problem : I did some tests (Win32, not MFC, VS 2019, Windows 10 1909) and I cannot display the right 16*16 icon in the Dialog Editor, although it is displayed correctly at run-rime (I tried to modify the .RC...):
-
RLWA32 49,746 Reputation points
2021-08-23T10:36:54.65+00:00 Its a bit awkward but a placeholder control (static) could be used in the dialog editor for positioning and at runtime when handling WM_INITDIALOG reposition the icon and delete the placeholder.
Sign in to comment -
-
drjackool 956 Reputation points
2021-08-23T15:30:25.48+00:00 Visual Studio (C++) dialog editor is very weak! Please send feed back
-
RLWA32 49,746 Reputation points
2021-08-23T15:36:38.1+00:00 You can send your own feedback concerning visual studio from within the IDE.
