I'm trying to export .xml data (actually a ternary diagram, to .xml), to work in another software. I follow the help procedures, but under the Developer tab in Excel, the option "export" keeps greyed, despite the fact that I select the area with algorithms (Map), that represent the ternary diagram template. I don't know if I have to choose any other parameter to activate the "export", though I tried several of them.
Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

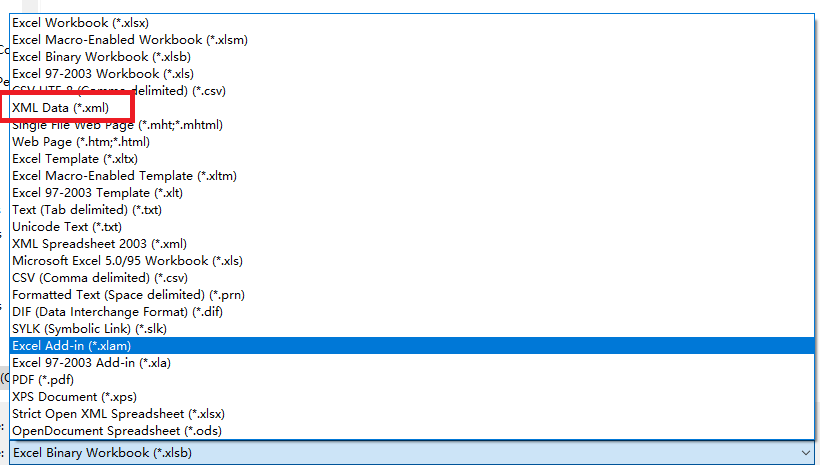

Save as >Choose ".XML"
The option in developer is for xml maps.

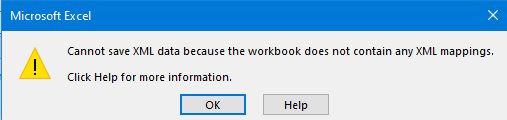

When I try to save as .xml, the following message appear:
So, whe following the Help page, I have to go to "Developer - Export" maps, as mentioned above.
This problem occurs in Save As dialog box when you try to specify XML Data (.xml) in the Save as type list.
This error occurs because an XML map is not yet applied. Open XML Source task pane by clicking the Source button in Developer tab and select the elements or entire nodes in the XML map and drag them into the worksheet. If the XML Source task pane is blank, add the XML maps.
Cannot Save or Export XML Data in Excel – BrainBell
