combination views

Anonymous
2024-07-23T02:23:28+00:00

How does one get combination views on screen, e.g. Gant Chart & Task Form views?

Microsoft 365 and Office | Project | For home | Other

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

Answer accepted by question author

Dale Howard [MVP] 29,860 Reputation points MVP Volunteer Moderator
2024-07-24T19:11:04+00:00

jksjimR --

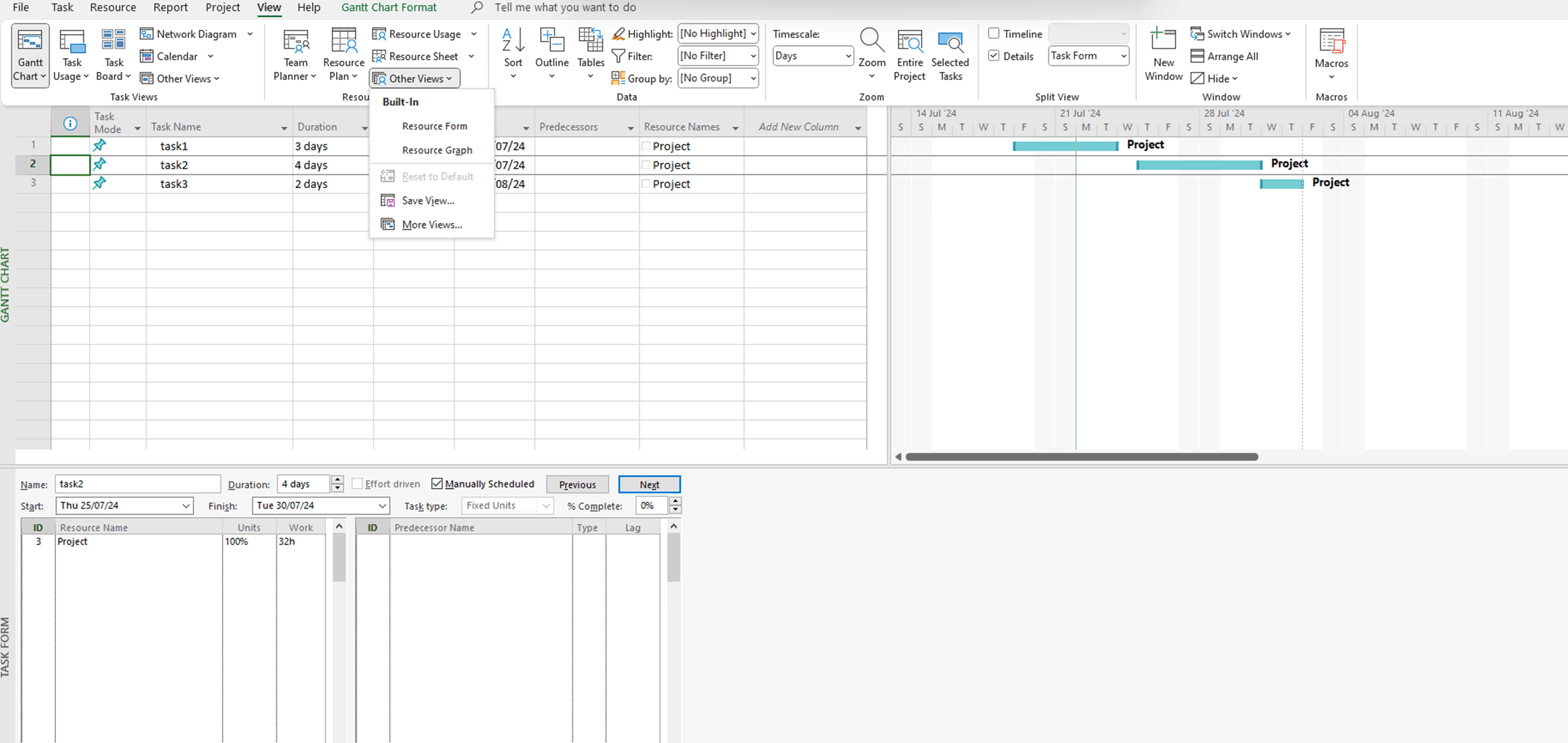

Apply the Gantt Chart view and then display the View ribbon. In the Split View section of the View ribbon, select the Show Split checkbox. A trick I like to use is even easier. Right-click anywhere in the white or gray part of the Gantt Chart screen and then select the Show Split item on the shortcut menu. Hope this helps.

Was this answer helpful?

0 comments

Answer accepted by question author

Anonymous
2024-07-23T04:27:32+00:00

Dear JksjimR,

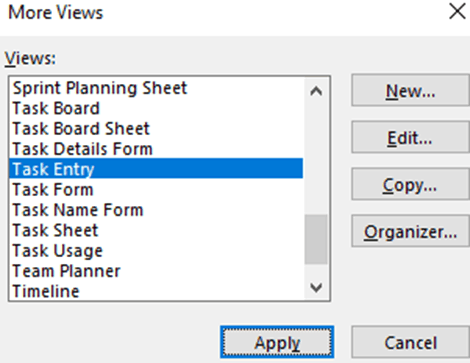

The combination view feature is only available in the Project desktop client. Do you encounter some issues? Generally, you can click on View>Other Views>More Views>Task Entry>Apply to get the combination view of Gant Chart and Task Form.

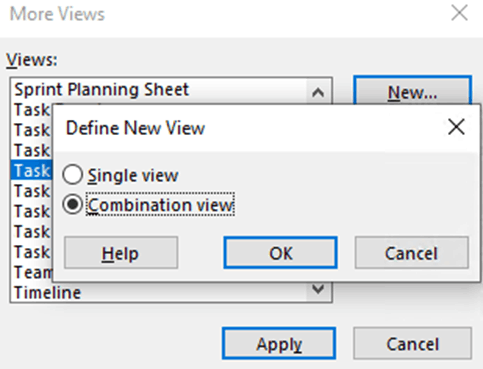

You can also click on New>Combination view>create a combination view of Gant Chart and Task Form.




Welcome to share any updates whenever you have time.

Your effort and time are greatly appreciated!

Sincerely

Cliff | Microsoft Community Moderator

Was this answer helpful?

0 comments
