how to fix The variable 'CrystalReportViewer1' is either undeclared or was never assigned.

Question

I'm having an issue of my POS system where I can`t see what my reports logs this is the warning sign that came with it can you help me fix this?

Answer 1

Thanks for reaching out. I understand you are running into a persistent issue with your POS system related to displaying reports , Specifically getting the error that the variable crystal report viewer1 is either undeclared or was never assigned.

This kind of issue usually stems from a mismatch in dependencies, a missing declaration or improper initialization of viewer control.

Here is a step-by-step solution along with links to relevant Microsoft and SAP documentation to help you resolve these issues.

Solution: fixing the CrystalReportViewer1 Error

the error “the variable  ‘the CrystalReportViewer1’ is either undeclared or was never assigned” suggest the variable representing the crystal report viewer control is not properly recognized or initialized in the code when you are trying to use it

step one: verify the control is declared and initialized

if you are using VB.NET(Windows Forms), the control should be automatically declared in the Designer.vb file when you drag it onto your form. If you have modified or manually written code, ensure the declaration is present and correct.

Check the form’s class definition: in your forms code behind (e.g., frm_report.vb), make sure the control is declared as a with events variable, and ensure the design file  (frm_report.Designer.vb) has the proper declaration

·         VB.NET Example (in frm_report.Designer.vb):

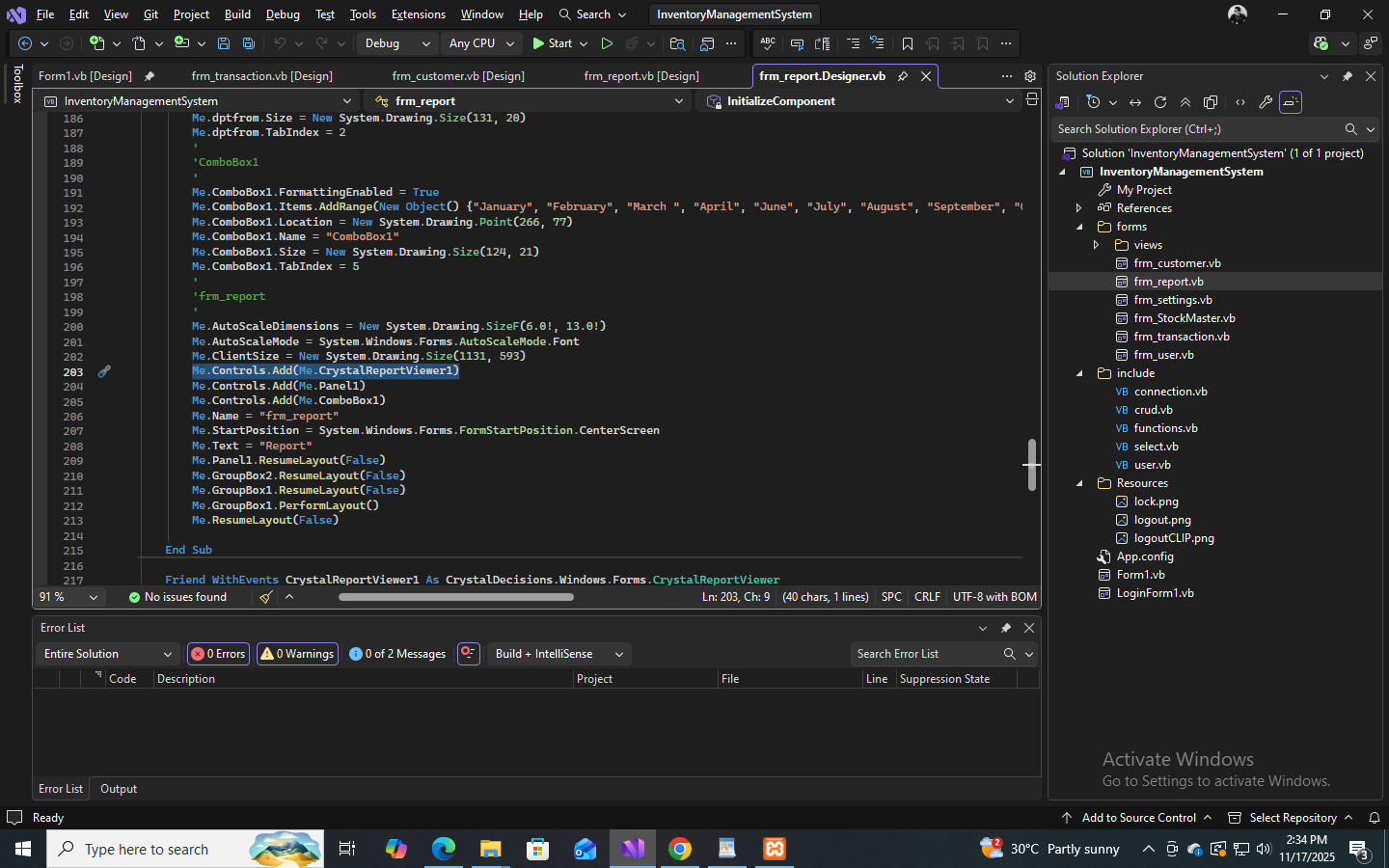

Check the initialization: the control must also be initialized usually in the InitializeComponent() subroutine

·         VB.NET Example (in frm_report.Designer.vb):

Step 2: address missing dependencies(crucial)

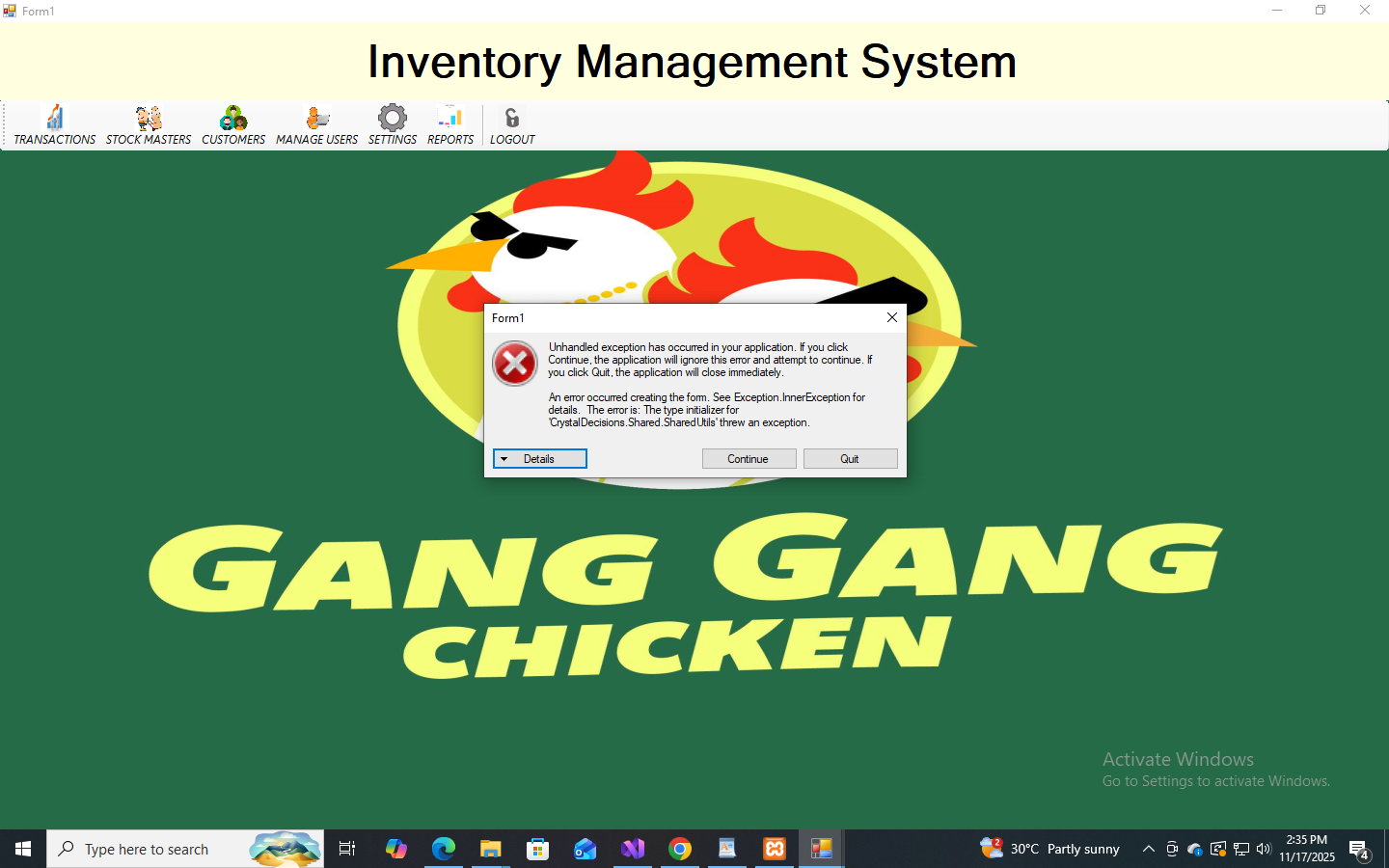

the other errors you are seeing like “could not load file or assembly.….” And the “unhandled exception….. An error occurred creating the form…” are strong indicators that your application is missing the correct crystal reports runtime. This is the most common cause of deployment and runtime issues.

The SAP crystal reports, developer version for Visual Studio is separate from the Visual Studio installation. Your development machine likely has the necessary files, but your POS machine needs the runtime package.

Identify the correct runtime: check with version of Visual Studio developed the application with and what version of the crystal reports SDK you integrated.

Download and install the runtime: go to the official SAP website and download the correct crystal reports runtime engine installer corresponding to your SDK version. You must install this on the machine running the POS system.

Link to SAP crystal reports downloads: you will need to search for this specific version of “SAP crystal reports, developer version for Visual Studio” download page.

Deployment method: when deploying your POS application, you must ensure that either the MSI runtime installer runs on the client machine, or that you use a merged module if you are using MSI deployment tool.

Step 3: resolve licensing/referencing conflicts

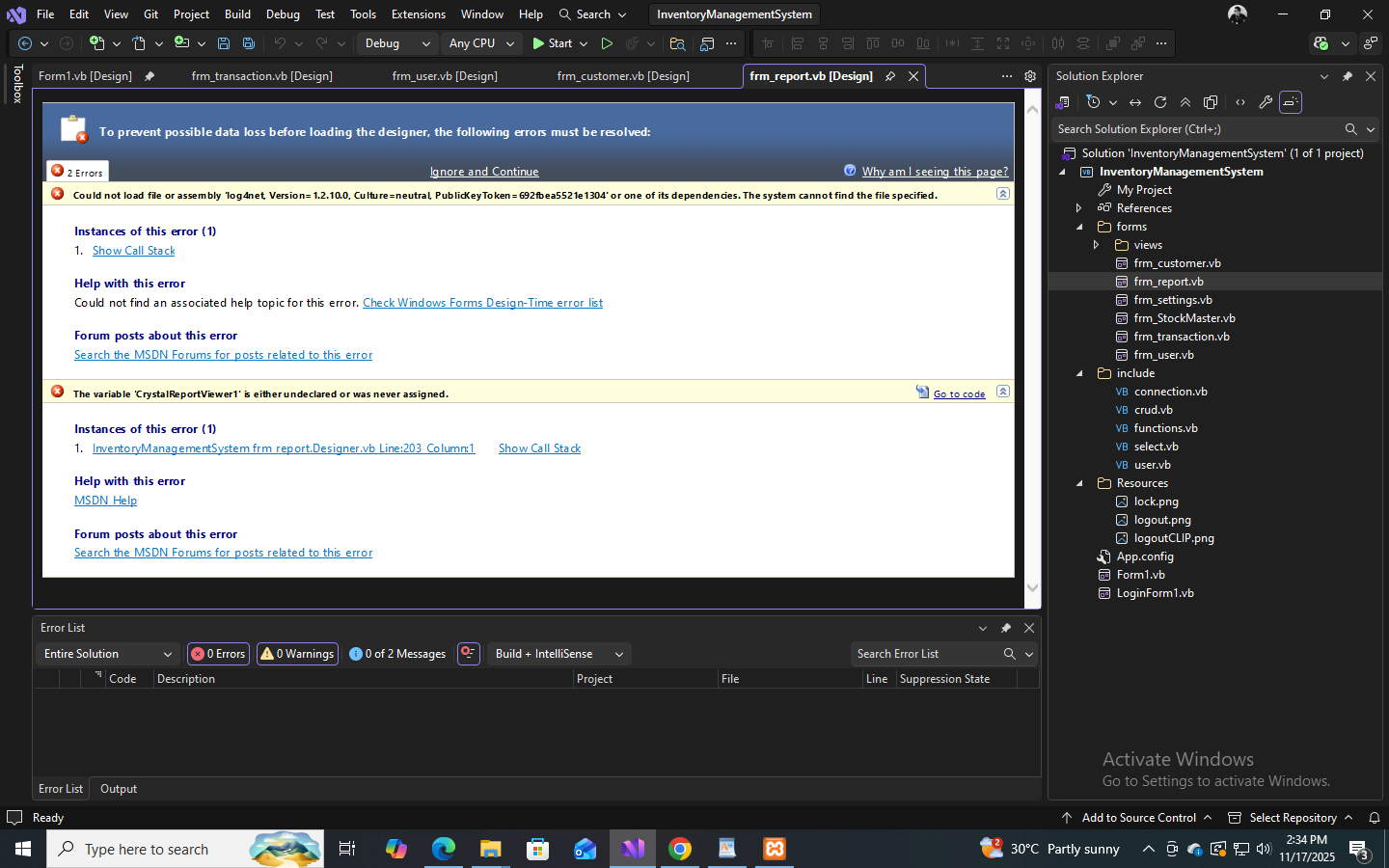

your second image shows a message regarding a dependency “could not load file or assembly……” this is very specific and indicates a missing assembly.

Check references: in your Visual Studio solution explorer, expand your projects reference node. Look for any references that have a yellow warning icon.

Re add references: if the Topaz assembly (or any other crystal decisions assembly) it's showing an issue, try removing the reference and readding it. For crystal reports the key references are typically:

·         CrystalDecisions.CrystalReports.Engine

·         CrystalDecisions.Shared

·         CrystalDecisions.Windows.Forms

If the issue persists, the project might be referencing a component(like Topaz) that is not part of the standard deployment and needs to be manually copied to your applications bin folder on the POS machine.

Once you install the correct crystal reports runtime engine on your POS machine and ensure your project references are correct, the the CrystalReportViewer1 variables should be correctly initialized and the form creation exceptions should disappear.

Please let us know if you require any further assistance we’re happy to help. If you found this information useful, kindly mark this as "Accept Answer".
