Xamarin.Forms - Tooltip as menu

Question

Hey!

I couldn't find it anywhere, so I'm trying this option.

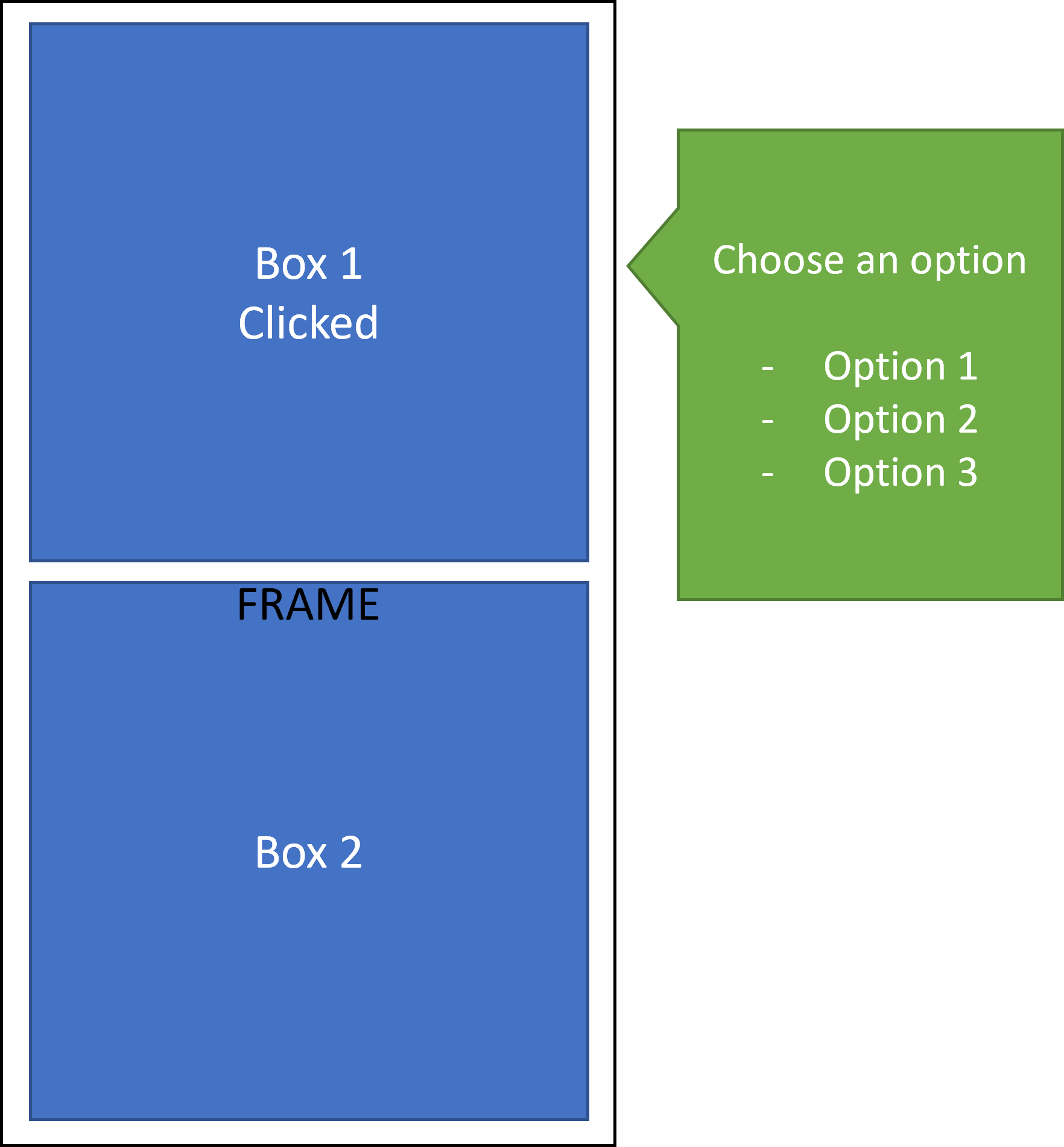

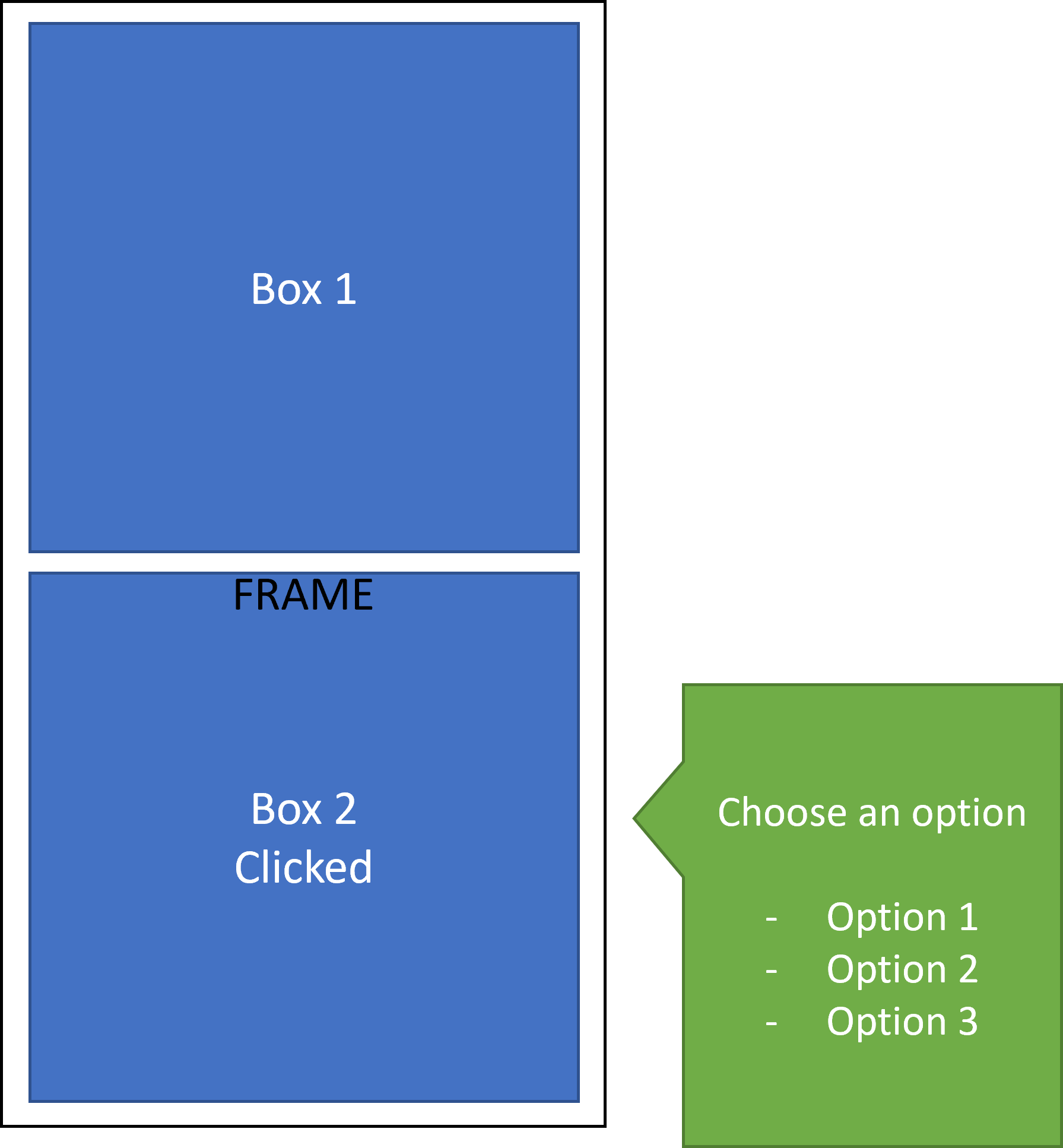

I have an app with frames and when I click on the frame I want a tooltip-like window to come up where the user can select an option. Something like this:

I took a look at Xamarin.Android.Tooltips, but that doesn't seem to be able to handle multiple options to choose from. Are there other packages available which work better for this case?

I hope my question is clear.

Answer 1

Hi GaneshGebhard-8778,

Welcome to our Microsoft Q&A platform!

A workaround is that you can draw a custom tooltip using Path. Then add the tooltip and path to a RelativeLayout.

Here is a simple demo you can refer to.

xaml

<Grid ColumnDefinitions="*,*"
        RowDefinitions="*,*">
    <Frame BackgroundColor="Blue">
        <Frame.GestureRecognizers>
            <TapGestureRecognizer Tapped="TapGestureRecognizer_Tapped"/>
        </Frame.GestureRecognizers>
    </Frame>

    <RelativeLayout Margin="20" Grid.Column="1" x:Name="relativeLayout" IsVisible="false">
        <Path Stroke="Black"
            Aspect="Uniform" Fill="lightgreen"
            HorizontalOptions="Start"
                RelativeLayout.XConstraint="0"
                RelativeLayout.YConstraint="0"
                RelativeLayout.WidthConstraint="200"
                RelativeLayout.HeightConstraint="200"
                >
            <Path.Data>
                <PathGeometry>
                    <PathGeometry.Figures>
                        <PathFigureCollection>
                            <PathFigure IsClosed="True"
                            StartPoint="10,80">
                                <PathFigure.Segments>
                                    <PathSegmentCollection>
                                        <LineSegment Point="30,60" />
                                        <LineSegment Point="30,0" />
                                        <LineSegment Point="180,0" />
                                        <LineSegment Point="180,200" />
                                        <LineSegment Point="30,200" />
                                        <LineSegment Point="30,100" />

                                    </PathSegmentCollection>
                                </PathFigure.Segments>
                            </PathFigure>
                        </PathFigureCollection>
                    </PathGeometry.Figures>
                </PathGeometry>
            </Path.Data>
        </Path>

        <Frame BackgroundColor="Transparent" HasShadow="False"
                RelativeLayout.XConstraint="25"
                RelativeLayout.YConstraint="0"
                RelativeLayout.WidthConstraint="150"
                RelativeLayout.HeightConstraint="200" >
            <StackLayout>
                <Label Text="Choose options"/>
                <StackLayout Orientation="Horizontal">
                    <CheckBox/>
                    <Label Text="A" VerticalTextAlignment="Center"/>
                </StackLayout>
                <StackLayout Orientation="Horizontal">
                    <CheckBox/>
                    <Label Text="B" VerticalTextAlignment="Center"/>
                </StackLayout>
                <StackLayout Orientation="Horizontal">
                    <CheckBox/>
                    <Label Text="C" VerticalTextAlignment="Center"/>
                </StackLayout>
            </StackLayout>
        </Frame>
    </RelativeLayout>

</Grid>

xaml.cs

private void TapGestureRecognizer_Tapped(object sender, EventArgs e)
{
    relativeLayout.IsVisible = !relativeLayout.IsVisible;
}

Regards,
Kyle

---
