Surface diagnostics tools - touch display setup not working

Lukáš Hrňa 0

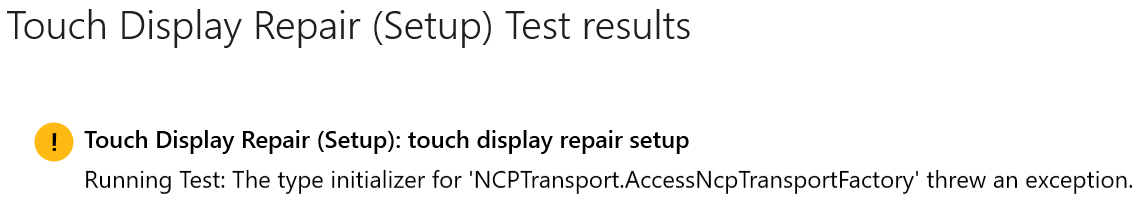

Hi, I have problem with run touch display setup on my Surface pro 8, win 11 25H2. Test ends with error NSPTransport. Touch panel is working and display have flicking ani I need replace it. But I need first step Touch display setup to set surface for remove display. User's image

0 comments

4 answers

Your answer

Answer 1

On my windows 11 still not working, I reinstall to windows 10 from https://www.microsoft.com/en-us/software-download/windows10 Maybe if I reinstall windows 11 then working too.

Surface diagnostics toolkit from storage still not working

Local STD now working:

Create local user admin
Extract zip file with surface diagnostics toolkit from https://www.microsoft.com/en-us/download/details.aspx?id=100440 to users\[localUser]\SDT
run power shell as admin and go to folder
run Unblock-File * or dir | Unblock-File
run dir -Recurse | Unblock-File
Start surface diagnostics toolkit

And now working.

Thank you very much @S.Sengupta for your help.

Answer 2

Lukáš Hrňa 0

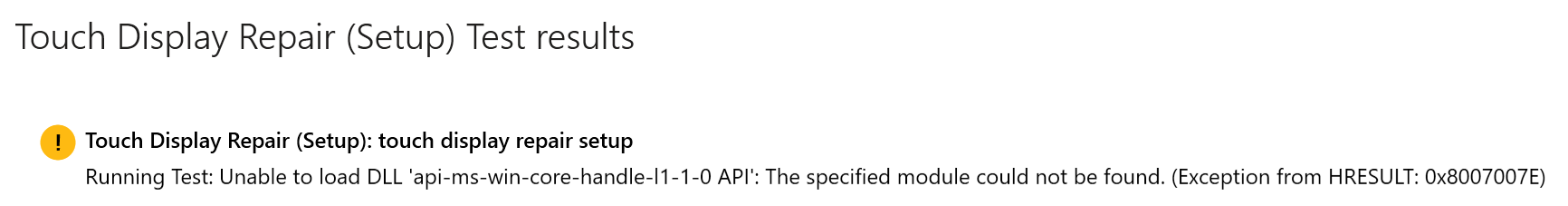

I tried download another version SDT from https://www.microsoft.com/en-us/download/details.aspx?id=100440 But error User's image

0 comments

Answer 3

S.Sengupta 30,891 MVP Volunteer Moderator

That NCPTransport error is often related to missing .NET components.

Install:

Download .NET 8.0

.NET Framework 4.8.1

Download Surface Pro 8 Drivers and Firmware

Lukáš Hrňa 0 Reputation points

2026-05-25T19:00:51.11+00:00

Still not working
S.Sengupta 30,891 Reputation points MVP Volunteer Moderator

2026-05-26T00:46:39.62+00:00

Step 1 — Move the SDT folder

After downloading SDT, don't just run it from Downloads or a ZIP. Copy the whole folder to your user folder, like:

C:\Users\YourName\SDT

Step 2 — Unblock the files

Right-click the Start menu → open PowerShell as Administrator, then type:

cd C:\Users\YourName\SDT

Unblock-File *

Hit Enter. This tells Windows "yes, I trust these files" — without it, Windows silently blocks the scripts SDT needs to run, which is most likely the root cause of your NCPTransport error.

Step 3 — Check your account

Make sure you're logged in as a local administrator — not a Microsoft account or work/school account. If unsure, go to Settings → Accounts → Your info and check. If needed, create a new local admin account just for this repair.

Step 4 — Fix PowerShell permissions

Still in PowerShell as Admin, run:

Set-ExecutionPolicy -Scope CurrentUser -ExecutionPolicy RemoteSigned

Say Yes if prompted. This allows SDT's scripts to actually execute.

Step 5 — Try again

Now relaunch SDT and click Touch Display Repair Setup. Watch closely — does a black PowerShell window briefly appear? If yes, it's working. If nothing appears at all, the Unblock-File step didn't take — double-check the folder path and repeat it.

Sources:

https://learn.microsoft.com/en-us/surface/service-guides/surface-software-repair-tools

https://apps.microsoft.com/detail/9nf1mr6c60zf?hl=en-US&gl=IN

Answer 4

For Surface Pro 8, Touch Display (Setup) and Calibration must run successfully before and after replacing the Touch Display Module (TDM). When SDT Touch Display Setup/Repair fails with an exception, follow the documented SDT prerequisites and log collection steps.

Ensure software prerequisites
1. Use Windows Update to install the latest OS and firmware for the Surface Pro 8.
2. Confirm the device can boot fully into a Windows user account (no Safe Mode or recovery environment).
3. Sign in with an account that is a local administrator on the device.
Unblock and rerun SDT Touch Display (Setup)
1. Copy the entire SDT folder from the USB drive to C:\Users\\<local-admin>\\.
2. Open PowerShell as Administrator.
3. In PowerShell, navigate to the copied SDT folder and run:
```
      Unblock-File *
```
4. Close PowerShell.
5. From Windows Explorer, run the SDT executable from the copied folder.
6. In SDT, choose Repair → Repair Setup and Validation → Touch Display (Setup) and let it complete. If prompted, allow the device to shut down.
If Touch Display (Setup) still fails
1. Note the error shown in SDT and close SDT.
2. SDT will create a TDM calibration log file in the logfiles subfolder inside the SDT folder.
3. Use this log file when escalating the issue to Microsoft Partner Device Desk or Surface support for further analysis.
After successful display replacement on Surface Pro 8
1. Power on the device.
2. From Windows Explorer, run SDT again from USB or the local folder.
3. Select Repair setup and validation → Touch Display Calibration and accept the restart prompt when the tool finishes.
4. If calibration fails repeatedly, the new TDM may be faulty and should be replaced.

These steps align with the required SDT workflow for TDM replacement and with the official SDT troubleshooting guidance for Touch Display Setup failures.
