Images not displayed correctly in ListView - Height

Question

This has been asked a LOT of times but some of them doesn't apply to what I want, anothers simply don't work with me

It is something extremely simple, so I don't know what is happening

I have a ListView. Every item has two Rows. The first is for a Text and the second is for an Image

The issue is that the Image got clipped

I can't set a fixed Height for the Images because the Images are not equal. Also because the Width of viewports/cellphones are different. The best thing I guess is to calculate a ratio, but I'm bery newbie in binding stuff

The Text row sometimes is two rows, and sometimes is three rows. So no fixed Height either

As I said, I have test a lot of mods but none works for me

I have tested FillAndExpand, AspectFit, AspectFill, Grid with Rows in Auto, etc.. The ListView uses HasUnevenRows = True

This is in a Xamarin Forms project. I'm using VS 2019 16.11.5 - Xamarin 5.0.0.2012

Edit: in fact, I don’t know if ListView is the Better control for this. Just want text, images and scroll. Also, must have two kind of designs

<ListView.ItemTemplate>
 <DataTemplate>
 <ViewCell>

 <!--<ViewCell.View>
 <Grid x:Name="grid" RowSpacing="0">
 <Grid.RowDefinitions>
 <RowDefinition Height="Auto" />
 <RowDefinition Height="Auto" />
 </Grid.RowDefinitions>

 <Frame Grid.Row="0">
 <Image  HorizontalOptions="FillAndExpand" VerticalOptions="FillAndExpand" Aspect="AspectFit">
 <Image.Source>
 <UriImageSource Uri="{Binding Imagen}" CacheValidity="1" CachingEnabled="true"/>
 </Image.Source>
 </Image>
 </Frame>

 <Grid Grid.Row="1">
 <Grid.RowDefinitions>
 <RowDefinition Height="*" />
 <RowDefinition Height="*" />
 </Grid.RowDefinitions>
 <Label Text="{Binding Texto}"/>
 </Grid>
 </Grid>
 </ViewCell.View>-->

 <!--<Grid Padding="5">
 <Grid.ColumnDefinitions>
 <ColumnDefinition Width="Auto"/>
 <ColumnDefinition/>
 </Grid.ColumnDefinitions>
 <Grid.RowDefinitions>
 <RowDefinition Height="Auto"/>
 </Grid.RowDefinitions>

 <Label Text="{Binding Texto}" TextColor="#7f7f7f" Padding="10,12,10,12" />
 <Image Grid.Column="1" Source="{Binding Imagen}" Aspect="AspectFill"/>
 </Grid>-->

 <StackLayout>
 <Image Source="{Binding Imagen}" Aspect="AspectFill" />

 <Label Text="{Binding Texto}" TextColor="#7f7f7f" Padding="10,12,10,12" />
 </StackLayout>

 <!--<Frame Padding="0" Margin="0">
 <Grid Padding="0"
 Margin="0"
 VerticalOptions="FillAndExpand"
 HorizontalOptions="FillAndExpand"
 BackgroundColor="Red">
 <Grid.RowDefinitions>
 <RowDefinition Height="auto"/>
 </Grid.RowDefinitions>
 <Image Source="{Binding Imagen}" Aspect="AspectFill"/>
 </Grid>
 </Frame>-->

 </ViewCell>
 </DataTemplate>
</ListView.ItemTemplate>

Answer 1

Hello,​

Welcome to our Microsoft Q&A platform!

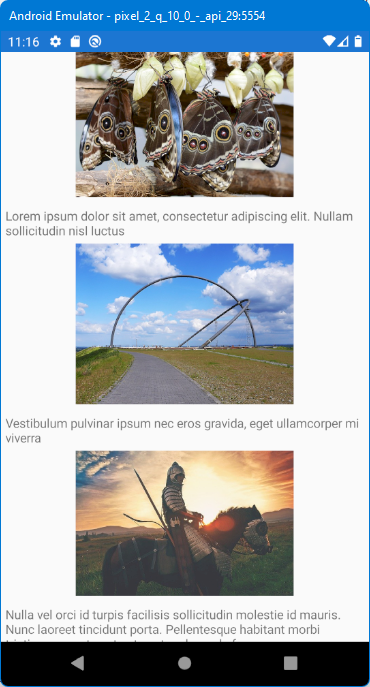

I used your image, then add several text to label. here is running screenshot(This site cannot upload again, So I cannot post image directly),

https://imgur.com/a/5Oxxh4o

Here is my code, Just use Image and Label in the StackLayout of ViewCell. If you still have issue, Could you share your DataSource that I can reproduce this issue.

   <StackLayout>
           <ListView ItemsSource="{Binding Items}" HasUnevenRows="True">
               <ListView.ItemTemplate>
                   <DataTemplate>
                       <ViewCell>
                           <StackLayout>

                               <Image Source="{Binding ImagePath}"/>
                               <Label Text="{Binding MYName}" Padding="5"></Label>

                           </StackLayout>
                       </ViewCell>
                   </DataTemplate>
               </ListView.ItemTemplate>

           </ListView>
       </StackLayout>

==============================
Update===================================

If you want to caclulate the ratio, you can use FFImageLoading to achieve it.

Here is running screenshot.

https://imgur.com/a/wgrHMLn

Here is Layout.

   <CollectionView ItemsSource="{Binding datosItems}">

               <CollectionView.ItemTemplate>
                   <DataTemplate>
                       <StackLayout>
                           <Grid
                             HorizontalOptions="FillAndExpand"
                            VerticalOptions="FillAndExpand"
                            >


                               <ffimageloading:CachedImage

   			                        DownsampleToViewSize="true"
                                       Aspect="Fill"

                                  HeightRequest="{Binding MyImageHeight}"
                                   Success="CachedImage_Success"
   			                        Source="{Binding Imagen}">
                               </ffimageloading:CachedImage>
                           </Grid>


                           <Label Text="{Binding Texto}" Padding="5"></Label>

                       </StackLayout>
                   </DataTemplate>
               </CollectionView.ItemTemplate>

           </CollectionView>

Here is my background code. I use data-binding to achieve it. I can cacluate the ratio, then based the current page's height. You can create a new project, copy my code to it.

   using FFImageLoading.Forms;
   using System;
   using System.Collections.Generic;
   using System.Collections.ObjectModel;
   using System.ComponentModel;
   using System.Linq;
   using System.Text;
   using System.Threading.Tasks;
   using System.Windows.Input;
   using Xamarin.Essentials;
   using Xamarin.Forms;

   namespace AppListviewIssue
   {
       public partial class MainPage : ContentPage
       {
           public MainPage()
           {
               InitializeComponent();
               BindingContext = new MyViewModel();

           }



           public static double MyHeidht=-1;
           protected override void OnSizeAllocated(double width, double height)
           {
               base.OnSizeAllocated(width, height);


               MyHeidht = Width;
           }

           private void CachedImage_Success(object sender, FFImageLoading.Forms.CachedImageEvents.SuccessEventArgs e)
           {
               var image = sender as CachedImage;
               double width = e.ImageInformation.OriginalWidth;
               double height = e.ImageInformation.OriginalHeight;

               //get the image ratio

               var ratio = height / width;
               if (MainPage.MyHeidht != -1)
               {
                   // Change the image's height by the ratio.
                   var MyImageHeight = ratio * MainPage.MyHeidht;
                   var model = image.BindingContext as Datos;
                   model.MyImageHeight = MyImageHeight;
               }
           }
       }

       public class MyViewModel
       {
           public ObservableCollection<Datos> datosItems { get; set; }

           public MyViewModel()
           {

               datosItems = new ObservableCollection<Datos>();

               datosItems.Add(new Datos() { Texto = "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nullam sollicitudin nisl luctus", Imagen = "https://randomwordgenerator.com/img/picture-generator/55e6d5414b52a414f1dc8460962e33791c3ad6e04e507440752f78d0944ec4_640.jpg" });
               datosItems.Add(new Datos() { Texto = "Vestibulum pulvinar ipsum nec eros gravida, eget ullamcorper mi viverra", Imagen = "https://randomwordgenerator.com/img/picture-generator/54e2d0444a53a814f1dc8460962e33791c3ad6e04e507440762e79d7914cc6_640.jpg" });
               datosItems.Add(new Datos() { Texto = "Nulla vel orci id turpis facilisis sollicitudin molestie id mauris. Nunc laoreet tincidunt porta. Pellentesque habitant morbi tristique senectus et netus et malesuada fames", Imagen = "https://randomwordgenerator.com/img/picture-generator/54e5d3464357ab14f1dc8460962e33791c3ad6e04e50744172297cd59645c1_640.jpg" });
           }


       }

       public class Datos: INotifyPropertyChanged
       {
           public string Texto { get; set; }
           public string Imagen { get; set; }

           double _myImageHeight = 0;
           public double MyImageHeight
           {
               get
               {
                   return _myImageHeight;
               }

               set
               {
                   if (_myImageHeight != value)
                   {
                       _myImageHeight = value;
                       OnPropertyChanged("MyImageHeight");

                   }
               }

           }

           public event PropertyChangedEventHandler PropertyChanged;

           protected virtual void OnPropertyChanged(string propertyName)
           {
               PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
           }
       }

Best Regards,

Leon Lu

---
