Connect 3 Azure kinect to one PC

ahmd qas 6

I need to connect 3 different Azure kinect sensors or Kinect v2 sensors to one PC for capturing videos from different angles at the same time.

Is that possible?
If yes, how I can do that?

1 answer

Your answer

Answer 1

QuantumCache 20,366 Moderator

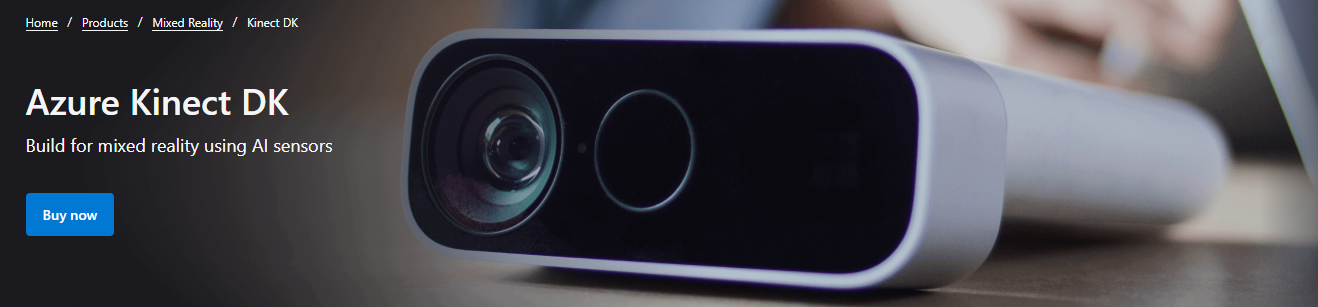

Hello @ahmd qas Is this question related to Azure Kinect DK ?

Synchronize multiple Azure Kinect DK devices

Each Azure Kinect DK device includes 3.5-mm synchronization ports (Sync in and Sync out) that you can use to link multiple devices together. After you connect the devices, your software can coordinate the trigger timing between them.

ahmd qas 6 Reputation points

2021-11-08T06:22:28.49+00:00

Hello SatishBoddu-MSFT ;
Thank you for your reply.
What do you mean "your software", Does the Azure not have its own software?

Also, what about the Kinect v2? can we connect 3 different Kinect v2 sensors to one PC for capturing videos from different angles at the same time? if yes, How we can do that?
QuantumCache 20,366 Reputation points Moderator

2021-12-01T23:53:22.397+00:00

Hello @ahmd qas apologiesfor delay response.

What do you mean "your software", Does the Azure not have its own software?

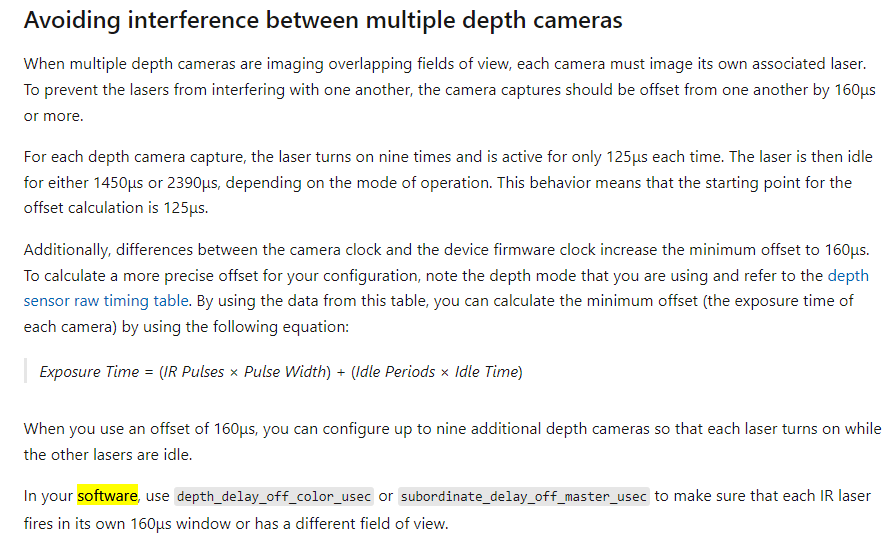

The Software is the piece of program or code that you have to write in order to control or coordinate the devices, please have a look at Use Azure Kinect recorder with external synchronized devices

Example:

what about the Kinect v2?

Unfortunately, Kinect V2 support is no more available and it is not supported on this forum, this public platform is only for Azure Kinect DK questions.

Please let us know if you need further help in this matter, happy to help!
