IMFSinkWriter (MP4) not writing color information

Question

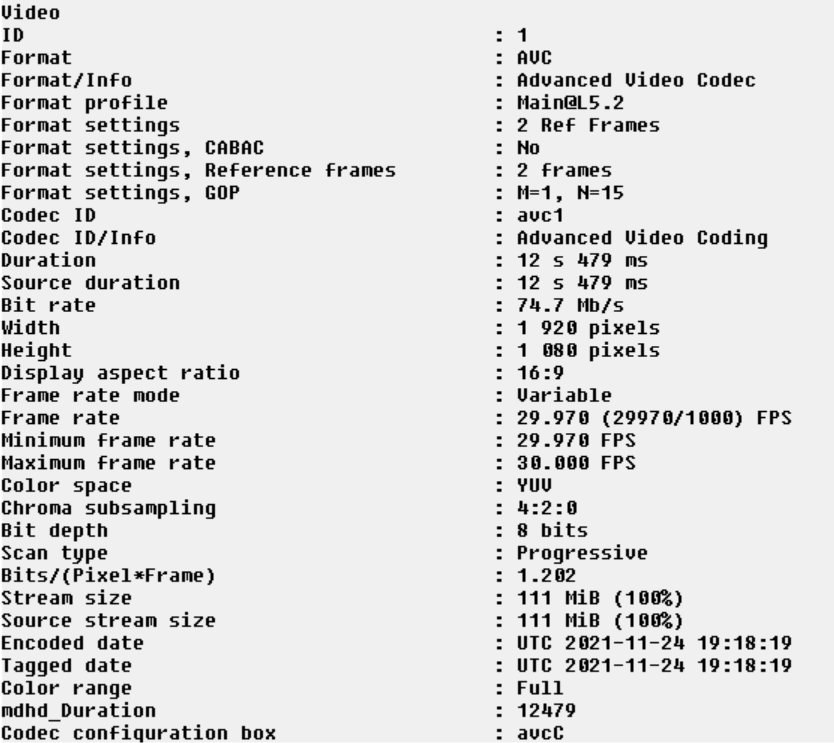

I am using IMFSinkWriter to write MP4 files. I am not using transforms mode (data passed in already encoded). The encodes will be in either Bt.601 or Bt.709. I have made sure that the color properties (Color Primaries, RGB Transfer Function, YUV Transfer Matrix, and Nominal Range) are set in the IMFMediaType passed in. The resulting files do not contain a 'colr' atom in the sample description, no matter what the settings, in fact, the files contain no color parameters at all.

Is there a trick to cause SinkWriter to write this info? Or do I need to manually make/modify a sample description and fill in the sample description property on the IMFMediaType?

Answer 1

Hello,
Welcome to Microsoft Q&A!

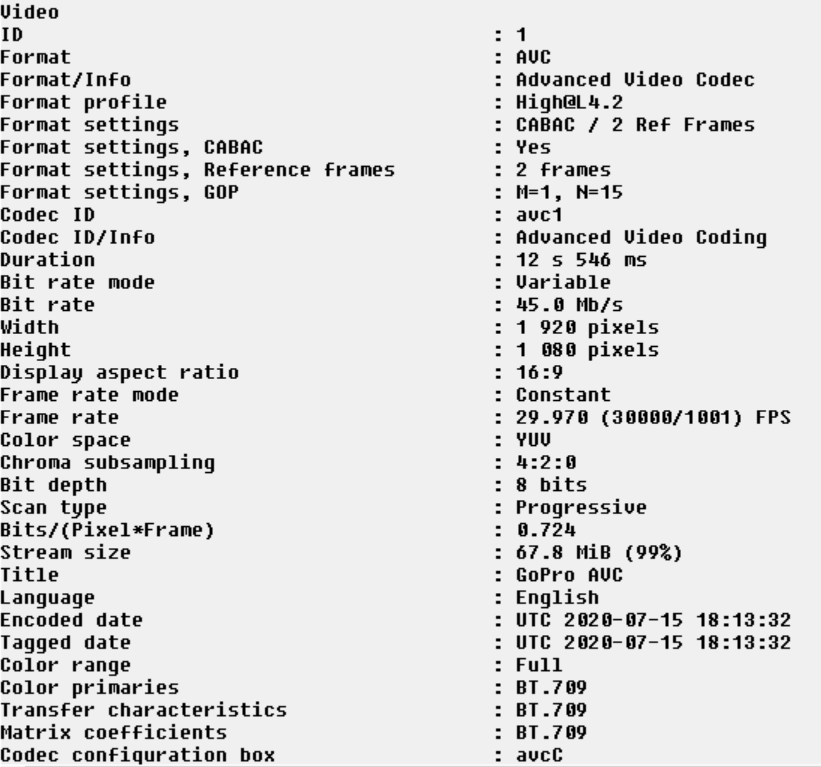

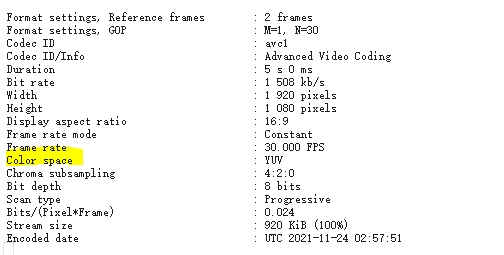

I have successfully inserted color Properties into the MP4 file, you can refer to my code. I had the same problem as you at the beginning, but it turned out to be Format constants. After modifying the VIDEO_ENCODING_FORMAT parameter, I succeeded. It could be a mistake in your Format Constants. My code is rewritten according to Microsoft's sample, you can refer to it.

#include <Windows.h>
#include <mfapi.h>
#include <mfidl.h>
#include <Mfreadwrite.h>
#include <mferror.h>
#include <d3d9.h>

#pragma comment(lib, "mfreadwrite")
#pragma comment(lib, "mfplat")
#pragma comment(lib, "mfuuid")
#pragma comment(lib, "d3d9.lib")

template <class T> void SafeRelease(T** ppT) {

 if (*ppT) {
 (*ppT)->Release();
 *ppT = NULL;
 }
}

#define REVERSE_IMAGE

// Format constants
const UINT32 VIDEO_FPS = 30;
const UINT64 VIDEO_FRAME_DURATION = 10 * 1000 * 1000 / VIDEO_FPS;
const UINT32 VIDEO_BIT_RATE = 2000000;
const GUID   VIDEO_ENCODING_FORMAT = MFVideoFormat_H264;
const GUID   VIDEO_INPUT_FORMAT = MFVideoFormat_RGB32;
const UINT32 VIDEO_FRAME_COUNT = 5 * VIDEO_FPS;

HRESULT InitializeDirect3D9(IDirect3DDevice9** ppDevice, IDirect3DSurface9** ppSurface, UINT32& uiWidth, UINT32& uiHeight) {

 IDirect3D9* d3d = NULL;

 d3d = Direct3DCreate9(D3D_SDK_VERSION);

 if (d3d == NULL)
 return E_POINTER;

 D3DDISPLAYMODE mode;
 HRESULT hr = d3d->GetAdapterDisplayMode(D3DADAPTER_DEFAULT, &mode);

 if (FAILED(hr)) {
 SafeRelease(&d3d);
 return hr;
 }

 D3DPRESENT_PARAMETERS parameters = { 0 };

 parameters.Windowed = TRUE;
 parameters.BackBufferCount = 1;
 uiHeight = parameters.BackBufferHeight = mode.Height;
 uiWidth = parameters.BackBufferWidth = mode.Width;
 parameters.SwapEffect = D3DSWAPEFFECT_DISCARD;
 parameters.hDeviceWindow = NULL;

 hr = d3d->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, NULL, D3DCREATE_SOFTWARE_VERTEXPROCESSING, &parameters, ppDevice);

 if (FAILED(hr)) {
 SafeRelease(&d3d);
 return hr;
 }

 hr = (*ppDevice)->CreateOffscreenPlainSurface(mode.Width, mode.Height, D3DFMT_A8R8G8B8, D3DPOOL_SYSTEMMEM, ppSurface, nullptr);

 SafeRelease(&d3d);

 return hr;
}

HRESULT InitializeSinkWriter(IMFSinkWriter** ppWriter, DWORD* pStreamIndex, const UINT32 uiWidth, const UINT32 uiHeight) {

 *ppWriter = NULL;
 *pStreamIndex = NULL;

 IMFSinkWriter* pSinkWriter = NULL;
 IMFMediaType* pMediaTypeOut = NULL;
 IMFMediaType* pMediaTypeIn = NULL;
 DWORD           streamIndex;

 HRESULT hr = MFCreateSinkWriterFromURL(L"output.mp4", NULL, NULL, &pSinkWriter);

 // Set the output media type.
 if (SUCCEEDED(hr)) {
 hr = MFCreateMediaType(&pMediaTypeOut);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeOut->SetGUID(MF_MT_MAJOR_TYPE, MFMediaType_Video);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeOut->SetGUID(MF_MT_SUBTYPE, VIDEO_ENCODING_FORMAT);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeOut->SetUINT32(MF_MT_AVG_BITRATE, VIDEO_BIT_RATE);
 }
 /*---------------------------------------color setting-----------------------------------------*/
 if (SUCCEEDED(hr))
 {
 hr = pMediaTypeOut->SetUINT32(MF_MT_VIDEO_PRIMARIES, MFVideoPrimaries_BT709);  //color setting
 }
 if (SUCCEEDED(hr))
 {
 hr = pMediaTypeOut->SetUINT32(MF_MT_YUV_MATRIX, MFVideoTransferMatrix_BT709); // ITU-R BT.709 transfer matrix.
 }
 if (SUCCEEDED(hr))
 {
 hr = pMediaTypeOut->SetUINT32(MF_MT_VIDEO_NOMINAL_RANGE, MFNominalRange_0_255); // The normalized range [0...1] maps to [0...255] for 8-bit samples or [0...1023] for 10-bit samples.
 }
 if (SUCCEEDED(hr))
 {
 hr = pMediaTypeOut->SetUINT32(MF_MT_TRANSFER_FUNCTION, MFVideoTransFunc_10);  // Linear RGB (gamma = 1.0).
 }
 /*---------------------------------------------------------------------------------------------*/
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeOut->SetUINT32(MF_MT_INTERLACE_MODE, MFVideoInterlace_Progressive);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeSize(pMediaTypeOut, MF_MT_FRAME_SIZE, uiWidth, uiHeight);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeRatio(pMediaTypeOut, MF_MT_FRAME_RATE, VIDEO_FPS, 1);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeRatio(pMediaTypeOut, MF_MT_PIXEL_ASPECT_RATIO, 1, 1);
 }
 if (SUCCEEDED(hr)) {
 hr = pSinkWriter->AddStream(pMediaTypeOut, &streamIndex);
 }

 // Set the input media type.
 if (SUCCEEDED(hr)) {
 hr = MFCreateMediaType(&pMediaTypeIn);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeIn->SetGUID(MF_MT_MAJOR_TYPE, MFMediaType_Video);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeIn->SetGUID(MF_MT_SUBTYPE, VIDEO_INPUT_FORMAT);
 }
 if (SUCCEEDED(hr)) {
 hr = pMediaTypeIn->SetUINT32(MF_MT_INTERLACE_MODE, MFVideoInterlace_Progressive);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeSize(pMediaTypeIn, MF_MT_FRAME_SIZE, uiWidth, uiHeight);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeRatio(pMediaTypeIn, MF_MT_FRAME_RATE, VIDEO_FPS, 1);
 }
 if (SUCCEEDED(hr)) {
 hr = MFSetAttributeRatio(pMediaTypeIn, MF_MT_PIXEL_ASPECT_RATIO, 1, 1);
 }
 if (SUCCEEDED(hr)) {
 hr = pSinkWriter->SetInputMediaType(streamIndex, pMediaTypeIn, NULL);
 }

 // Tell the sink writer to start accepting data.
 if (SUCCEEDED(hr)) {
 hr = pSinkWriter->BeginWriting();
 }

 // Return the pointer to the caller.
 if (SUCCEEDED(hr)) {

 *ppWriter = pSinkWriter;
 (*ppWriter)->AddRef();
 *pStreamIndex = streamIndex;
 }

 SafeRelease(&pSinkWriter);
 SafeRelease(&pMediaTypeOut);
 SafeRelease(&pMediaTypeIn);
 return hr;
}

HRESULT WriteFrame(IDirect3DDevice9* pDevice, IDirect3DSurface9* pSurface, IMFSinkWriter* pWriter, DWORD streamIndex, const LONGLONG& rtStart, const UINT32 uiWidth, const UINT32 uiHeight) {

 HRESULT hr = pDevice->GetFrontBufferData(0, pSurface);

 if (FAILED(hr)) {
 return hr;
 }

 D3DLOCKED_RECT rc;
 hr = pSurface->LockRect(&rc, NULL, 0);

 if (FAILED(hr)) {
 return hr;
 }

 IMFSample* pSample = NULL;
 IMFMediaBuffer* pBuffer = NULL;

 const LONG cbWidth = 4 * uiWidth;
 const DWORD cbBuffer = cbWidth * uiHeight;

 BYTE* pData = NULL;

 // Create a new memory buffer.
 hr = MFCreateMemoryBuffer(cbBuffer, &pBuffer);

 // Lock the buffer and copy the video frame to the buffer.
 if (SUCCEEDED(hr)) {
 hr = pBuffer->Lock(&pData, NULL, NULL);
 }

 if (SUCCEEDED(hr)) {

#ifdef REVERSE_IMAGE
 for (int i = 0, j = uiHeight - 1; i < uiHeight; i++, j--)
 for (int k = 0; k < cbWidth; k++)
 pData[(i * cbWidth) + k] = ((BYTE*)rc.pBits)[(j * cbWidth) + k];
#else
 hr = MFCopyImage(pData, cbWidth, (BYTE*)rc.pBits, rc.Pitch, cbWidth, uiHeight);
#endif
 }

 if (pBuffer) {
 pBuffer->Unlock();
 }

 // Set the data length of the buffer.
 if (SUCCEEDED(hr)) {
 hr = pBuffer->SetCurrentLength(cbBuffer);
 }

 // Create a media sample and add the buffer to the sample.
 if (SUCCEEDED(hr)) {
 hr = MFCreateSample(&pSample);
 }

 if (SUCCEEDED(hr)) {
 hr = pSample->AddBuffer(pBuffer);
 }

 // Set the time stamp and the duration.
 if (SUCCEEDED(hr)) {
 hr = pSample->SetSampleTime(rtStart);
 }

 if (SUCCEEDED(hr)) {
 hr = pSample->SetSampleDuration(VIDEO_FRAME_DURATION);
 }

 // Send the sample to the Sink Writer.
 if (SUCCEEDED(hr)) {
 hr = pWriter->WriteSample(streamIndex, pSample);
 }

 hr = pSurface->UnlockRect();

 SafeRelease(&pSample);
 SafeRelease(&pBuffer);
 return hr;
}

void main() {

 HRESULT hr = CoInitializeEx(NULL, COINIT_APARTMENTTHREADED);

 if (SUCCEEDED(hr)) {

 hr = MFStartup(MF_VERSION);

 if (SUCCEEDED(hr)) {

 UINT32 uiWidth = 0;
 UINT32 uiHeight = 0;

 IDirect3DDevice9* pDevice = NULL;
 IDirect3DSurface9* pSurface = NULL;

 hr = InitializeDirect3D9(&pDevice, &pSurface, uiWidth, uiHeight);

 if (SUCCEEDED(hr)) {

 IMFSinkWriter* pSinkWriter = NULL;
 DWORD stream;

 hr = InitializeSinkWriter(&pSinkWriter, &stream, uiWidth, uiHeight);

 if (SUCCEEDED(hr)) {

 LONGLONG rtStart = 0;

 for (DWORD i = 0; i < VIDEO_FRAME_COUNT; ++i) {

 hr = WriteFrame(pDevice, pSurface, pSinkWriter, stream, rtStart, uiWidth, uiHeight);

 if (FAILED(hr)) {
 break;
 }

 rtStart += VIDEO_FRAME_DURATION;
 }
 }

 if (SUCCEEDED(hr)) {
 hr = pSinkWriter->Finalize();
 }

 SafeRelease(&pSinkWriter);
 }

 SafeRelease(&pDevice);
 SafeRelease(&pSurface);
 MFShutdown();
 }

 CoUninitialize();
 }
}

Thank you.

---
