How to write in the LED moving Board in C#?

Dirazi 1 Reputation point
2021-11-23T02:51:39.203+00:00

please understand that I am really in need of help. I want to write over the Moving LED board which can be connected through serial connection.

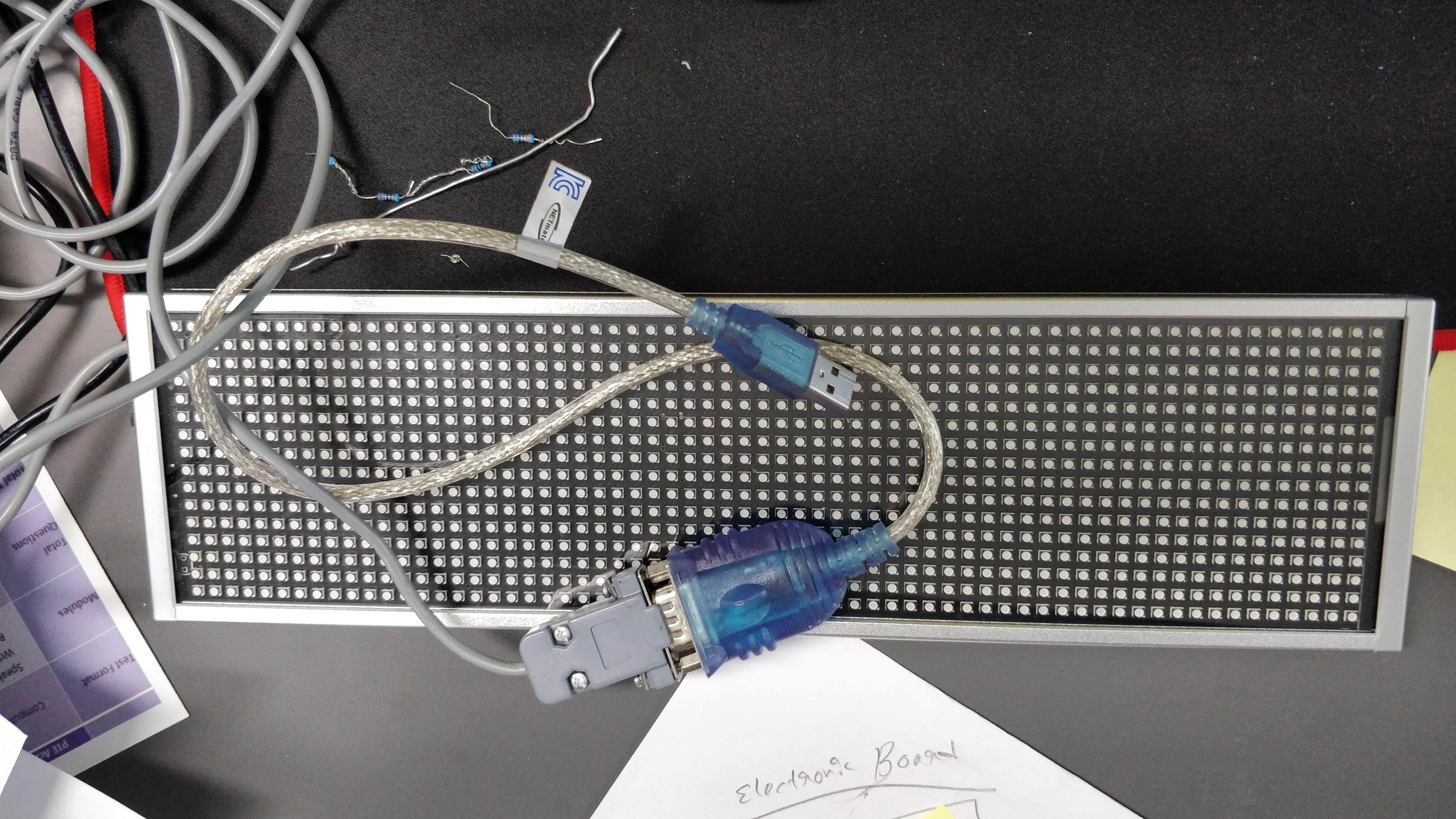

151637-ledmovingboard-min-min.jpg. This is the image of the board. There is a software provided by the company from which this board is bought.
151617-boardsoftware.jpgThis is the image of the software GUI. I tried making a C# GUI for serialPort connection. But however, I could not see the output in the board. When making virtual serial ports and communicating through TeraTerm, The program works perfectly. I even have used HEX code converter. But I am unable to write in this board. Plese have a look at my code and help me.

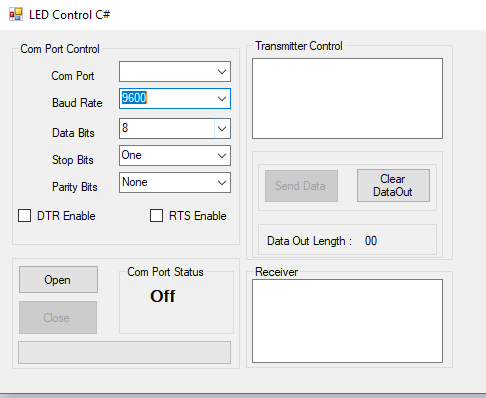

151642-mygui.pngThis is the picture of GUI I created. The code is as follows. Please suggest me. Thanks in advance

namespace comPort18Nov
{
public partial class Form1 : Form
{

    string dataOut;

    string dataIn;
    public Form1()
    {
        InitializeComponent();
    }

    private void Form1_Load(object sender, EventArgs e)
    {
        string[] ports = SerialPort.GetPortNames();
        cBoxCOMPORT.Items.AddRange(ports);

        chBoxDtrEnable.Checked = false;
        serialPort1.DtrEnable=false;

        chBoxRTSEnable.Checked = false;
        serialPort1.RtsEnable = false;

        btnSendData.Enabled = false;
        btnOpen.Enabled = true;

        btnClose.Enabled = false;

    }

    private void btnOpen_Click(object sender, EventArgs e)
    {
        try
        {
            serialPort1.PortName = cBoxCOMPORT.Text;
            serialPort1.BaudRate = Convert.ToInt32(cBoxBaudRate.Text);
            serialPort1.DataBits = Convert.ToInt32(cBoxDataBits.Text);
            serialPort1.StopBits = (StopBits)Enum.Parse(typeof(StopBits), cBoxStopBits.Text);
            serialPort1.Parity = (Parity)Enum.Parse(typeof(Parity), cBoxParityBits.Text);

            serialPort1.Open();
            progressBar1.Value = 100;

            //Disable the btnOpen once it is open
            btnOpen.Enabled = false;
            btnClose.Enabled = true; //Enable the btnClose
            btnSendData.Enabled = true;

            //show label status as open
            lblStatusCom.Text = "ON";
        }
        catch (Exception err)
        {
            MessageBox.Show(err.Message,"Error Message", MessageBoxButtons.OK, MessageBoxIcon.Error);
            btnOpen.Enabled = true;
            btnClose.Enabled = false;
            btnSendData.Enabled = false;
            lblStatusCom.Text = "OFF"; //label status
        }
    }

    private void btnClose_Click(object sender, EventArgs e)
    {
        if (serialPort1.IsOpen)
        {
            serialPort1.Close();
            progressBar1.Value = 0;

            //Enable btnOpen and disable btnClose
            btnOpen.Enabled = true;
            btnClose.Enabled = false;
            btnSendData.Enabled = false;

            //show label status

            lblStatusCom.Text = "OFF";
        }
    }

    private void btnSendData_Click(object sender, EventArgs e)
    {
        if (serialPort1.IsOpen)
        {
            dataOut = toHex(tBoxDataOut.Text);
            //dataOut = tBoxDataOut.Text;
            serialPort1.WriteLine(dataOut);



        }
    }

    //For Hex Conversion

    public string toHex(string inp)
    {

        string outp = string.Empty;
        char[] value = inp.ToCharArray();
        foreach(char L in value)
        {
            int V = Convert.ToInt32(L);
            outp += string.Format("{0:X2}", V);

        }
        return outp;
    }


    private void label7_Click(object sender, EventArgs e)
    {

    }


    private void checkBox2_CheckedChanged(object sender, EventArgs e)
    {

    }

    private void chBoxDtrEnable_CheckedChanged(object sender, EventArgs e)
    {
        if (chBoxDtrEnable.Checked)
        {
            serialPort1.DtrEnable = true;
        }
        else { serialPort1.DtrEnable = false; }

    }

    private void chBoxRTSEnable_CheckedChanged(object sender, EventArgs e)
    {
        if (chBoxRTSEnable.Checked)
        {
            serialPort1.RtsEnable = true;
        }
        else{serialPort1.RtsEnable = false;}

    }

    private void btnClearDataOut_Click(object sender, EventArgs e)
    {
        if (tBoxDataOut.Text != "")
        {
            tBoxDataOut.Text = "";
        }
    }

    private void tBoxDataOut_TextChanged(object sender, EventArgs e)
    {
        int dataOutLength = tBoxDataOut.TextLength;
        lblDataOutLength.Text = string.Format("{0:00}", dataOutLength);
    }

    private void tBoxDataIn_TextChanged(object sender, EventArgs e)
    {

    }
}
}
Developer technologies | Windows Forms
Windows for business | Windows Client for IT Pros | Networking | Network connectivity and file sharing
Developer technologies | C#
{count} votes

1 answer

Sort by: Most helpful
  1. Limitless Technology 39,926 Reputation points
    2021-11-25T16:23:25.12+00:00

    Hi there,

    Generally speaking the programing process has the below steps.

    -Enter the number of LEDs in width and height on your LED display.
    -Select module type – this means the distance between the centers of two LEDs placed alongside
    -Select luminance.
    -Select frequency of refresh.

    This also changes with respect to the manufacturer , make sure you enquire about this to them to guide you in right way.


    --If the reply is helpful, please Upvote and Accept it as an answer--

    0 comments No comments
