I can't see my Server Scope on DHCP

Question

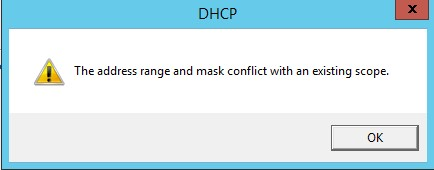

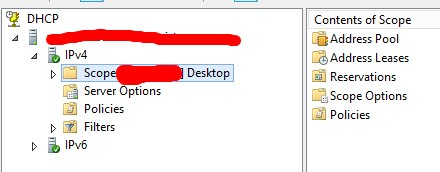

Hello everyone, i have a problem, i can't see my Server Scope that it was already configured on my DCHP server. I can oly see the Desktop Scope that is already created. But if try to create again the Server Scope it get me an alert message that the address range and mask conflict with an existing scope. And i can't see on my primary tree.

Thank you for your help.

My OS Windows server 2012 standard R2

Answer 1

Hi there,

You probably have the DHCP console installed on your Domain Controller but are running the DHCP server on a different server. Run ipconfig /all from a DHCP client and see what it lists for a DHCP Server.

And also you only need to add a new dhcp scope if you have added a new network segment that is using that IP range.
You cannot just add the scope and have it shared with another on the same network segment

---

--If the reply is helpful, please Upvote and Accept it as an answer--

Answer 2

Hi @

A couple of suggestions:

Try restarting the dhcp service, then relaunch the console and see if the range shows up

Are you sure that the scope existed previously?

Does the desktop scope overlap the server range you are trying to entry?

Gary.
