How can I display an image on the entire device screen with UIImageView on iPhone/iPad?

Question

How can I display an image on the entire device screen with UIImageView on iPhone/iPad?

Kim Strasser 1,321

I want to display an image on the entire device screen. The image needs to be displayed until I execute LogoView.RemoveFromSuperview();.

stackoverflow ios-fit-image-to-screen
I use the code from stackoverflow but it's not working because I don't know what I should use for my View.
I get an error message in Program.cs if I use View:

Error CS0103: The name 'View' does not exist in the current context

Program.cs:

using System;
using Foundation;
using UIKit;

namespace MyProject
{
[Register("AppDelegate")]
class Program : UIApplicationDelegate
{
    private UIImageView LogoImage;

    public override void FinishedLaunching(UIApplication app)
    {
        global::Xamarin.Forms.Forms.Init();
        LogoImage = new UIImageView(UIImage.FromFile("Launchscreenlogo.png"));
        LogoImage.Tag = 1234;
        LogoImage.Frame = View.Frame;
        View.AddSubview(LogoImage);
        View.BringSubviewToFront(LogoImage);
    }

    private void G_RemoveLogo(object sender, System.EventArgs e)
    {
        //remove image
        var LogoView = View.ViewWithTag(1234);
        if (null != LogoView)
            LogoView.RemoveFromSuperview();
    }
}
}

How can I display an image on the entire device screen with UIImageView on iPhone/iPad?

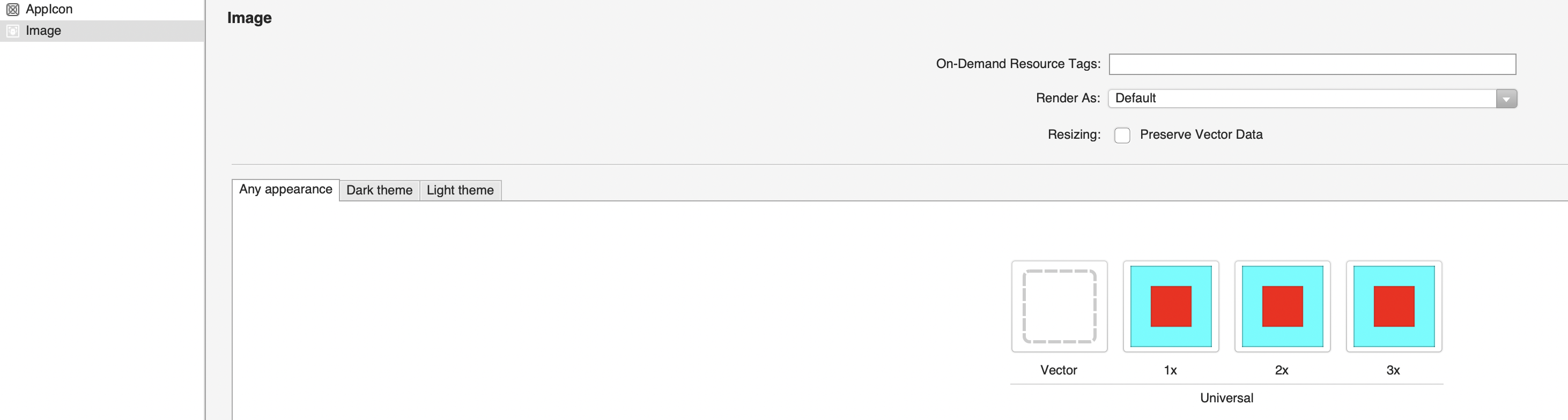

Is it possible to use my image from Assets.xcassets(launch.png, ******@2x.png, ******@3x.png) in UIImageView?

Accepted answer

1 additional answer

Your answer

Answer 1

Hello,

Welcome to our Microsoft Q&A platform!

You got this error because there is no view in AppDelegate, I add the RootViewController and add this LogoImage into its View, you could refer to the following code:

public override bool FinishedLaunching(UIApplication app, NSDictionary options)
    {
        global::Xamarin.Forms.Forms.Init();
        LoadApplication(new App());
    Window = new UIWindow(UIScreen.MainScreen.Bounds);
    var MainViewController = new UIViewController();
    Window.RootViewController = MainViewController;
    Window.MakeKeyAndVisible();

    MainViewController.View.BackgroundColor = UIColor.White;
    LogoImage = new UIImageView(UIImage.FromBundle("Launchscreenlogo"));// load the Assets.xcassets image
    LogoImage.ContentMode = UIViewContentMode.ScaleAspectFill;
    LogoImage.Tag = 1234;
    LogoImage.Frame = MainViewController.View.Frame;
    MainViewController.View.AddSubview(LogoImage);
    MainViewController.View.BringSubviewToFront(LogoImage);
    return true;
}

You could also create a new controller to load a imageview and add a button to test, right click the iOS project ->new Item -> UIViewController(Apple) ->named( my class name is MyViewController) , then refer to the following code:

 private UIImageView LogoImage;
        public override void ViewDidLoad()
        {
            View = new UniversalView();

            base.ViewDidLoad();
            View.BackgroundColor = UIColor.White;
            LogoImage = new UIImageView(UIImage.FromBundle("Launchscreenlogo"));
            LogoImage.ContentMode = UIViewContentMode.ScaleAspectFill;
            LogoImage.Tag = 1234;
            LogoImage.Frame = new CoreGraphics.CGRect(0,0,UIScreen.MainScreen.Bounds.Size.Width, UIScreen.MainScreen.Bounds.Size.Height);// important
            View.AddSubview(LogoImage);


            UIButton mybutton = new UIButton(new CoreGraphics.CGRect(0, 100, 100, 40));
            mybutton.SetTitle("click to remove", UIControlState.Normal);// add this button to test
            mybutton.TouchUpInside += (sender, e) => {
                G_RemoveLogo(sender, e);
            };
            View.AddSubview(mybutton);
        }
        private void G_RemoveLogo(object sender, System.EventArgs e)
        {
            //remove image
            var LogoView = View.ViewWithTag(1234);
            if (null != LogoView)
                LogoView.RemoveFromSuperview();
        }

FinishedLaunching in AppDelegate

public override bool FinishedLaunching(UIApplication app, NSDictionary options)
        {
            global::Xamarin.Forms.Forms.Init();
            LoadApplication(new App());
            Window = new UIWindow(UIScreen.MainScreen.Bounds);
            var MainViewController = new MyViewController();
            Window.RootViewController = MainViewController;
            Window.MakeKeyAndVisible();

            return true;
        }

You could also load ViewController from forms refer to https://stackoverflow.com/questions/63812069/display-viewcontroller-from-native-forms.
About how to displaythe image in Xamarin.iOS, you could refer to https://learn.microsoft.com/en-us/xamarin/ios/app-fundamentals/images-icons/displaying-an-image?tabs=macos

------------update-----------
Program class(use MyViewController )

 using System.Linq;
    using System.Text;
    using UIKit;

    namespace ImageViewDemo.iOS
    {
    [Register("AppDelegate")]
   public class Program : UIApplicationDelegate
    {
        private MyViewController MainViewController;
        public override void FinishedLaunching(UIApplication application)
        {
            var Window = new UIWindow(UIScreen.MainScreen.Bounds);
            MainViewController = new MyViewController();
            Window.RootViewController = MainViewController;
            Window.MakeKeyAndVisible();
        }
    }
}

Program class(use UIViewController )

namespace ImageViewDemo.iOS
{
    [Register("AppDelegate")]
   public class Program : UIApplicationDelegate
    {
        private UIViewController MainViewController;
        private UIImageView LogoImage;
        public override void FinishedLaunching(UIApplication application)
        {
            var Window = new UIWindow(UIScreen.MainScreen.Bounds);
            MainViewController = new UIViewController();
            Window.RootViewController = MainViewController;
            Window.MakeKeyAndVisible();
            MainViewController.View.BackgroundColor = UIColor.White;
            LogoImage = new UIImageView(UIImage.FromBundle("Launchscreenlogo"));
            LogoImage.ContentMode = UIViewContentMode.ScaleAspectFill;
            LogoImage.Tag = 1234;
            LogoImage.Frame = MainViewController.View.Frame;
            MainViewController.View.AddSubview(LogoImage);
            MainViewController.View.BringSubviewToFront(LogoImage);
            RunGame();
        }
        private void G_RemoveLogo(object sender, System.EventArgs e)
        {
            //remove the image
            ......
        }

        internal static void RunGame()
        {
           ......

        }
    }
}

Pay attition to comment out this line of code in Appdelegate.cs

// [Register("AppDelegate")]

Best Regards,
Wenyan Zhang

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Kim Strasser 1,321 Reputation points

2021-12-08T15:18:38.66+00:00

I don't have a class named Appdelegate.cs in my project.
In addition, I get an error message in MyViewController.cs:

View = new UniversalView();

Error CS0246: The type or namespace name 'UniversalView' could not be found (are you missing a using directive or an assembly reference?)

using UIKit; namespace MyProject { public partial class MyViewController : UIViewController { private UIImageView LogoImage; public MyViewController() : base("MyViewController", null) { } public override void ViewDidLoad() { base.ViewDidLoad(); // Perform any additional setup after loading the view, typically from a nib. View = new UniversalView(); base.ViewDidLoad(); View.BackgroundColor = UIColor.White; // ... } private void G_RemoveLogo(object sender, System.EventArgs e) { //remove image var LogoView = View.ViewWithTag(1234); if (null != LogoView) LogoView.RemoveFromSuperview(); } public override void DidReceiveMemoryWarning() { base.DidReceiveMemoryWarning(); // Release any cached data, images, etc that aren't in use. } } }
Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2021-12-09T02:15:52.887+00:00

Try to replace View = new UniversalView(); with

View = new UIView();
Kim Strasser 1,321 Reputation points

2021-12-09T23:01:48.413+00:00

Is it better to use Program class(use UIViewController) instead of Program class(use MyViewController) if I want to call G_RemoveLogo from Game1.cs? In addition, the player doesn't need to click on a button to remove the image. The image should be removed when a certain point is reached in Game1.cs.
I have tried to call G_RemoveLogo located in MyViewController.cs but it is not working to call it from Game1.cs.

I found out that I need to use (UIApplication.SharedApplication.Delegate as Myproject.Program).G_RemoveLogo(); instead of RemoveLogo?.Invoke(this, new EventArgs()); in Game1.cs because my breakpoints are not executed in G_RemoveLogo located in Program.cs when I use RemoveLogo?.Invoke(this, new EventArgs());.
Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2021-12-10T02:40:06.66+00:00

I'm not clear about the Game1.cs, it seams like an another issue. Anyway, you could try to find the MyViewController and call G_RemoveLogo .

UIWindow window = UIApplication.SharedApplication.KeyWindow; MyViewController vc = (MyViewController)window.RootViewController; vc.G_RemoveLogo();

In addition , I have chenaged the private void G_RemoveLogo(object sender, System.EventArgs e) method to public void G_RemoveLogo();

Using MeaasgeCenter is an easy way, you could call the method whenever the message is received.
Kim Strasser 1,321 Reputation points

2021-12-10T09:39:46.733+00:00

I get an exception if I use this code in Game1.cs:

System.InvalidCastException has been thrown
Specified cast is not valid.

Game1.cs(located in SharedCode project):

using MyProject; UIWindow window = UIApplication.SharedApplication.KeyWindow; MyViewController vc = (MyViewController)window.RootViewController; vc.G_RemoveLogo();

MyViewController.cs(located in MyProject project)

public void G_RemoveLogo() { //remove image var LogoView = View.ViewWithTag(1234); if (null != LogoView) LogoView.RemoveFromSuperview(); }
Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2021-12-14T03:20:05.903+00:00

This error message may mean that (MyViewController)window.RootViewController can't convert RootViewController to MyViewController this type . I'm not sure if you have changed the RootViewController .
In Program class(use MyViewController) , the RootViewController is

MainViewController = new MyViewController(); Window.RootViewController = MainViewController;

You could try to use MeaasgeCenter. When you want to call the method , send the message in Game1.cs.

MessagingCenter.Send<Game1>(this, "Hi");

You could Subscribe the mesage in ViewDidLoad() of MyViewController and call the method whenever the message is received

public override void ViewDidLoad() { View = new UIView(); base.ViewDidLoad(); MessagingCenter.Subscribe<Game1>(this, "Hi", (sender) => { G_RemoveLogo(); }); }
Kim Strasser 1,321 Reputation points

2021-12-14T23:15:25.12+00:00

I use this code in Program class and I get the error message in Game1 when I want to remove the image:

private MyViewController MainViewController; public override void FinishedLaunching(UIApplication app) { var Window = new UIWindow(UIScreen.MainScreen.Bounds); MainViewController = new MyViewController(); Window.RootViewController = MainViewController; Window.MakeKeyAndVisible(); }

But it works with MessagingCenter. The image gets removed if I use MessagingCenter in Game1.

Answer 2

I get an error message if I add the line LoadApplication(new App()); to my Program.cs.
In addition and I get the following exception if I don't use "var" before Window:

Foundation.ModelNotImplementedException
Exception of type 'Foundation.ModelNotImplementedException' was thrown.

But if I use "var" before Window then it seems to work. I get no error messages with this code:

        private UIViewController MainViewController;

        public override void FinishedLaunching(UIApplication app)
        {
            global::Xamarin.Forms.Forms.Init();
            var Window = new UIWindow(UIScreen.MainScreen.Bounds);
            MainViewController = new UIViewController();
            Window.RootViewController = MainViewController;
            Window.MakeKeyAndVisible();
            MainViewController.View.BackgroundColor = UIColor.White;
            LogoImage = new UIImageView(UIImage.FromBundle("Image"));// load the Assets.xcassets image
            LogoImage.ContentMode = UIViewContentMode.ScaleAspectFill;
            LogoImage.Tag = 1234;
            LogoImage.Frame = MainViewController.View.Frame;
            MainViewController.View.AddSubview(LogoImage);
            MainViewController.View.BringSubviewToFront(LogoImage);

            RunGame();
        }

        private void G_RemoveLogo(object sender, System.EventArgs e)
        {
            //remove the image
            var LogoView = MainViewController.View.ViewWithTag(1234);
            if (null != LogoView)
                LogoView.RemoveFromSuperview();
        }

        internal static void RunGame()
        {
            int w1 = (int)(UIScreen.MainScreen.Bounds.Size.Width * UIScreen.MainScreen.Scale);
            int h1 = (int)(UIScreen.MainScreen.Bounds.Size.Height * UIScreen.MainScreen.Scale);
            game = new Game1(w1, h1);
            game.Run();
        }

Wenyan Zhang (Shanghai Wicresoft Co,.Ltd.) 36,436 Reputation points Microsoft External Staff

2021-12-08T02:30:29.753+00:00

Sorry, I didn't provid the whole class code before, the FinishedLaunching was in Appdelegate.cs, I will edit the answer.
