When I authenticate to get access token for Key Vault and attempt to use I get AKV10022: Invalid audience, expected ......

Question

1) I register an App with Azure AD which will be known as "markrobertson", Application ID (client) = 77b677b5-XXXXXXXXXXXX

1) I added API permissions for 'markrobertson' for Azure Key Vault.

2) I create a Client secret for 'markrobertson' which we will say is SECRET

My Subscription S1, with ID c65a7e1e-XXXXXXXXXXXXX has a resource group which contains a resource group tv3test which contains a key vault 'tv3test'

I have added access policies for my "tv3test' vault for 'markrobertson'

I authenticate to https://login.microsoftonline.com/c65a7e1e-XXXXXXXXX/oauth2/v2.0/token
and provide associated body which is x-www-form-urlencoded
grant_type=client_credentials&client_id=77b677b5-XXXXXXXXXXX&client_secret=SECRET&scope=https://vault.azure.net/.default

and I get an access token back.

When I attempt to use the token with a request to GET https://tv3test.vault.azure.net/keyName providing the token via Authorization: Bearer access_token

I receive in return:
{
"error": {
"code": "Unauthorized",
"message": "AKV10022: Invalid audience. Expected https://vault.azure.net, found: 00000002-0000-0000-c000-000000000000."
}
}

I am attempting to follow the instructions numerous folks have provided for using postman automation such as: https://www.c-sharpcorner.com/article/how-to-access-azure-key-vault-secrets-through-rest-api-using-postman/ as well as https://blog.jongallant.com/2021/02/azure-rest-apis-postman-2021/.

I have exhuasuted the documentation from Azure attempting to identify what MAY be the issue with no result.

Answer 1

@Mark Robertson
Thank you for your post!

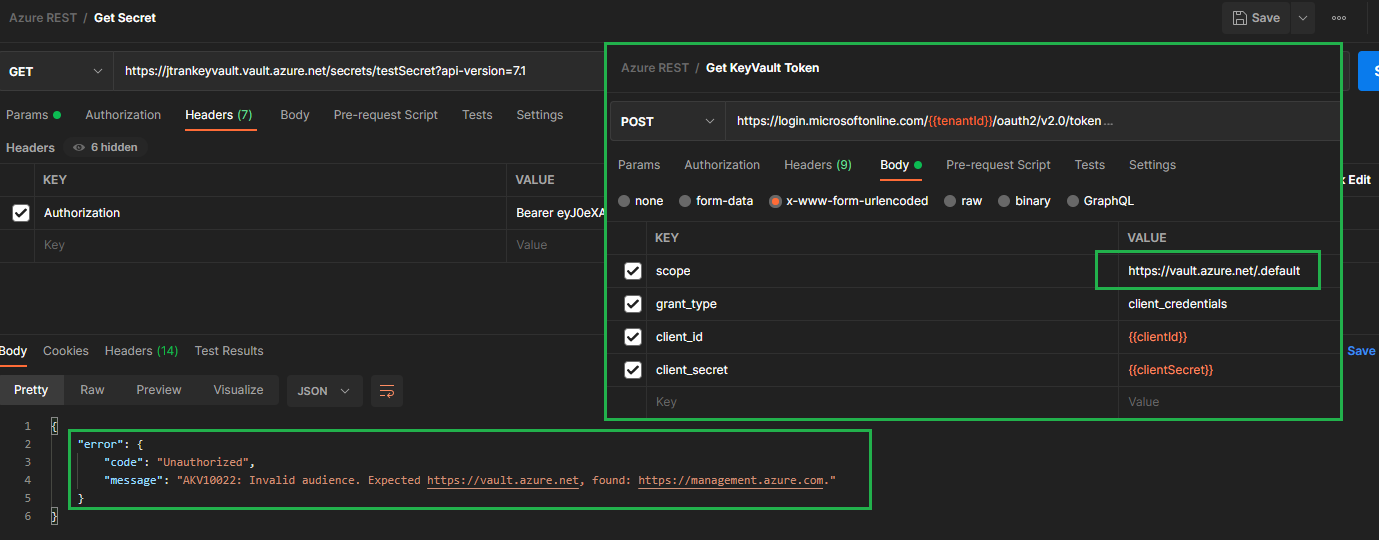

Based off your error message - Invalid audience. Expected https://vault.azure.net, found: 00000002-0000-0000-c000-000000000000 and issue description, it looks like you're using the correct scope of https://vault.azure.net/.default. When calling the Get Secrets REST API from my Postman environment, I didn't run into any issues, but was able to re-produce a similar error message as yours.

Get Key Vault Access Token:
POST https://login.microsoftonline.com/{<!-- -->{tenantId}}/oauth2/v2.0/token
Scope - https://vault.azure.net/.default
Grant Type - client_credentials

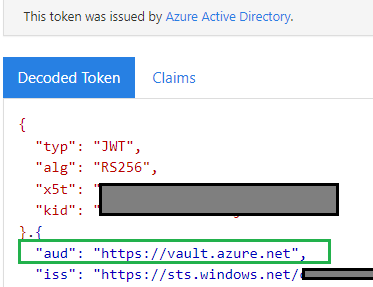

Verify your Access Token:
Using https://jwt.ms/ -> Paste your Access Token into the "Enter Token Below" window. -> Confirm the audience is https://vault.azure.net.

Get Secret:
GET https://<<Vaultname>>.vault.azure.net/secrets/testSecret?api-version=7.1
Header - `Key: Authorization // Value: Bearer <<access_token value>>

Note - I created a similar error message by using the scope management.azure.com rather than vault.azure.net.

I hope this helps!

If you have any other questions or are still having issues, please let me know.
Thank you for your time and patience throughout this issue.

----------

Please remember to "Accept Answer" if any answer/reply helped, so that others in the community facing similar issues can easily find the solution.
