Unable to Create Search Service Application in SharePoint 2019 multi-Server Farm

Question

SharePoint 2019 Search Service Application is showing Error and the service is not getting started,

Error:-

The Search Service is not able to connect to the machine that host Administration components, Verify the administration component "GUID" in Search Application is in a good state and try Again

Tried Below Steps but nothing works

1) Component Refresh:-

• $ssa = Get-SPEnterpriseSearchServiceApplication "Search Service Application"
• $ssa.RefreshComponents()

**2) **Service Provisioning:-****

• $service = Get-SPServiceInstance -Identity 7649ed8f-a46c-4a69-a79b-9a153b9f1fd2
• $service.provision()
• $service.update()
• iisreset /noforce

3) Remove Search Application:-

• $ssa = Get-SPServiceApplication -Name 'Search Service Application'
• Remove-SPServiceApplication $ssa
  While Removing the Search Application it got struck for more than 2 hours, then i need to restarted the timer Service until it completes the process, looks wired

4) Creating the Search Service Application:-

• $appPool = get-SPServiceApplicationPool -Identity 'SharePoint Web Services Default'
• New-SPEnterpriseSearchServiceApplication -Name "Search Service Application" -ApplicationPool $appPool
  While Creating the Search Application it got struck for more than 2 hours, then i need to restarted the timer Service until it completes the process, looks wired. and at the End Same Error

After Continuous Restarting of the timer Service the service get created with Error Unable to retrieve topology component health states. This may be because the admin component is not up and running.

and at the final Search Service Application Proxy is not getting created

Kindly help to recreate the Search Service Application from the scratch.

Answer 1

@ananpeculiar ,

Remove the problematic search service application first, then run following powershell to create a new search service application:

Remember to change the related parameter such as $SearchDatabaseServer,$SearchAppPoolAccount.

#Create Search Service Application
Add-PSSnapin Microsoft.SharePoint.PowerShell -ErrorAction SilentlyContinue
# Specify the Settings for the Search Service Application
$ServerName = (Get-ChildItem env:computername).value
$IndexLocation = "C:\Search Index"
$SearchServiceApplicationName = "Search Service Application"
$SearchServiceApplicationProxyName = "Search Service Application Proxy"
$SearchDatabaseServer = "SQL19"
$SearchServiceApplicationDatabase = "SP2019_Search_Service"

$SearchAppPoolName = "Search Service Application pool"
$SearchAppPoolAccount = Get-SPManagedAccount "Julie\spfarm"

#Check if Managed account is registered already
Write-Host -ForegroundColor Yellow "Checking if the Managed Accounts already exists"
$SearchAppPoolAccount = Get-SPManagedAccount -Identity $SearchAppPoolAccount -ErrorAction SilentlyContinue
If ($SearchAppPoolAccount -eq $null)
{
Write-Host "Please Enter the password for the Service Account..."
$AppPoolCredentials = Get-Credential $SearchAppPoolAccount
$SearchAppPoolAccount = New-SPManagedAccount -Credential $AppPoolCredentials
}

#*** Step 1: Create Application Pool for Search Service Application ****
#Get the existing Application Pool
$SearchServiceAppPool = Get-SPServiceApplicationPool -Identity $SearchAppPoolName -ErrorAction SilentlyContinue
#If Application pool Doesn't exists, Create it
if (!$SearchServiceAppPool)
{
$SearchServiceAppPool = New-SPServiceApplicationPool -Name $SearchAppPoolName -Account $SearchAppPoolAccount
write-host "Created New Application Pool" -ForegroundColor Green
}

#*** Step 2: Start Search Service Instances ***
Start-SPEnterpriseSearchServiceInstance $ServerName -ErrorAction SilentlyContinue
Start-SPEnterpriseSearchQueryAndSiteSettingsServiceInstance $ServerName -ErrorAction SilentlyContinue

#*** Step 3: Create Search Service Application ****
# Get the Search Service Application
$SearchServiceApplication = Get-SPEnterpriseSearchServiceApplication -Identity $SearchServiceApplicationName -ErrorAction SilentlyContinue
# Create the Search Service Application, If it doesn't exists!
if(!$SearchServiceApplication)
{
$SearchServiceApplication = New-SPEnterpriseSearchServiceApplication -Name $SearchServiceApplicationName -ApplicationPool $SearchServiceAppPool -DatabaseServer $SearchDatabaseServer -DatabaseName $SearchServiceApplicationDatabase
write-host "Created New Search Service Application" -ForegroundColor Green
}

#*** Step 4: Create Search Service Application Proxy ****
#Get the Search Service Application Proxy
$SearchServiceAppProxy = Get-SPEnterpriseSearchServiceApplicationProxy -Identity $SearchServiceApplicationProxyName -ErrorAction SilentlyContinue
# Create the Proxy, If it doesn't exists!
if(!$SearchServiceAppProxy)
{
$SearchServiceAppProxy = New-SPEnterpriseSearchServiceApplicationProxy -Name $SearchServiceApplicationProxyName -SearchApplication $SearchServiceApplication
write-host "Created New Search Service Application Proxy" -ForegroundColor Green
}

#*** Step 5: Create New Search Topology

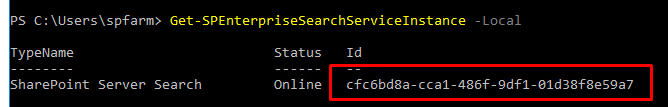

$SearchServiceInstance = Get-SPEnterpriseSearchServiceInstance -Local
#To Get Search Service Instance on Other Servers: use - $SearchServiceAppSrv1 = Get-SPEnterpriseSearchServiceInstance -Identity "<Server Name>"

# Create New Search Topology
$SearchTopology = New-SPEnterpriseSearchTopology -SearchApplication $SearchServiceApplication

#*** Step 6: Create Components of Search

New-SPEnterpriseSearchContentProcessingComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance

New-SPEnterpriseSearchAnalyticsProcessingComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance

New-SPEnterpriseSearchCrawlComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance

New-SPEnterpriseSearchAdminComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance

#Prepare Index Location
Remove-Item -Recurse -Force -LiteralPath $IndexLocation -ErrorAction SilentlyContinue
MKDIR -Path $IndexLocation -Force

#Create Index and Query Components
New-SPEnterpriseSearchIndexComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance -RootDirectory $IndexLocation

New-SPEnterpriseSearchQueryProcessingComponent -SearchTopology $SearchTopology -SearchServiceInstance $SearchServiceInstance

#*** Step 7: Activate the Toplogy for Search Service ***
# Or Use: Set-SPEnterpriseSearchTopology -Identity $SearchTopology
$SearchTopology.Activate()

Result for your reference:

---
