unable to access OneDrive using Microsoft Graph Explore

Question

Hi Team.,
i am trying to access my file from OneDrive using Microsoft Graph client. using below code but am getting Error message as shown below
var scopes = new[] { "https://graph.microsoft.com/.default" };

            var tenantId = "***********";
            var clientId = "***********";
            var clientSecret = "***********";

            var options = new TokenCredentialOptions
            {
                AuthorityHost = AzureAuthorityHosts.AzurePublicCloud
            };

            var clientSecretCredential = new ClientSecretCredential(
                tenantId, clientId, clientSecret, options);

            var graphClient = new GraphServiceClient(clientSecretCredential, scopes);

            var stream = await graphClient.Me.Drive.Items["***********"].Content.Request().GetAsync();

Error Message :
Code: BadRequest
Message: /me request is only valid with delegated authentication flow.
Inner error:
AdditionalData:
date: 2021-12-27T11:59:16
request-id: 93df1b1c-68aa-498b-967c-706ed96452b2
client-request-id: 93df1b1c-68aa-498b-967c-706ed96452b2
ClientRequestId: 93df1b1c-68aa-498b-967c-706ed96452b2

Note #1: under Azure => API Permissions => given User.ReadWrite.All - Application - Yes
Note #2: Create App Under Azure =>App Registrations => Accounts in any organizational directory (Any Azure AD directory - Multitenant)

Answer 1

Hi @Kiran Kumar ,

As per line#15 in your code , you are trying use /me Graph API endpoint in your application and as the error message states, /me Graph API endpoint is only valid with delegated authentication flow & delegated permissions scope but not with application client credential flow & application permissions scope.

Since you are using application client credential flow & application permissions scope , you would have to change line#15 in your above code like mentioned below and refer line#4 in the below example and also make sure that "Files.Read.All" application permissions are granted for your application. Your user ID should be mentioned in the below code at line#4.

var stream = await graphClient.Users["{User-Id}"].Drive.Items["{Item-Id}"].Request().GetAsync();
Example :

var stream = await graphClient.Users["4993994c-87b7-48b2-a7ff-2812a481b587"].Drive.Items["91XVQLL722MEU2FCVLXNHLORAJTNPKUZLM"]
.Request()
.GetAsync();

Here {User-Id} can be Id or UserPrincipalName and {Item-Id} can be Id of the item which needs to be accessed.
**Please ensure to mention your user ID or UserPrincipalName in the above code (at line#4).**

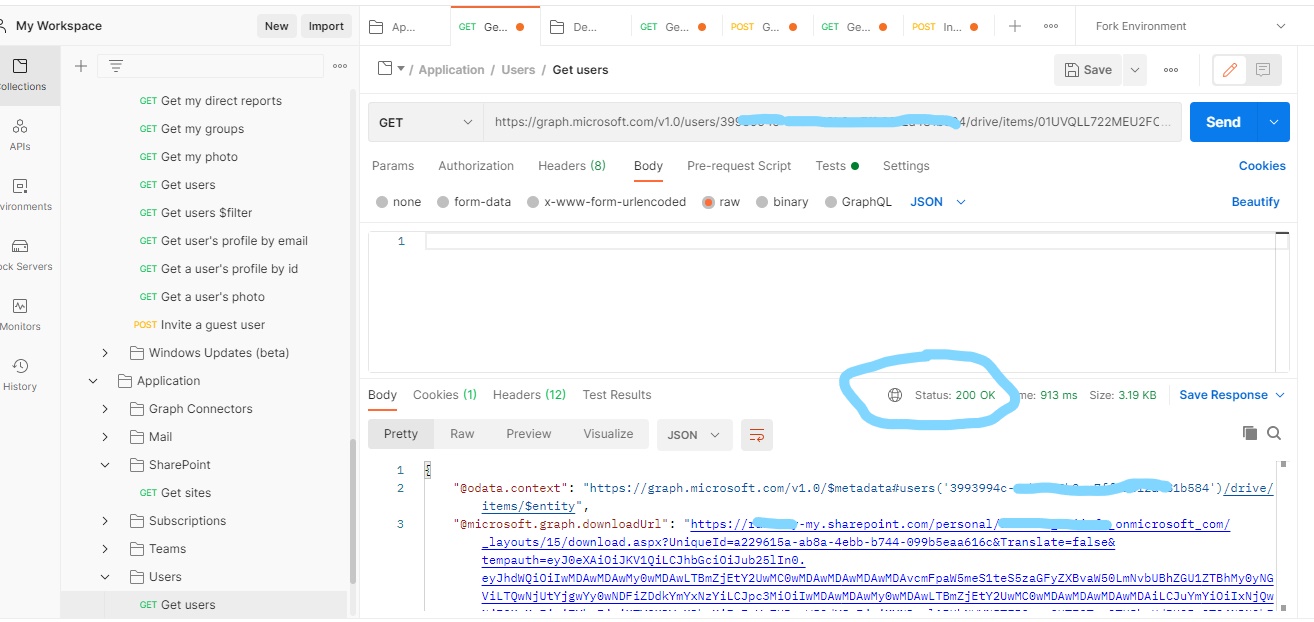

Here is the example output in Postman using equivalent graph API endpoint (GET /users/{user-id}/drive/items/{item-id}):

Hope this helps.

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have further questions about this answer, please click "Comment".

Answer 2

Hi janardhana / CarlZhao,

Thanks for your quick response,
i am passing Tenant ID in {user-ID}, am i rt? by passing this Tenant ID am getting below error

Code: BadRequest
Message: Unable to retrieve tenant service info.
Inner error:

if i am wrong what exactly i need to pass in {user-id}, can you please tell me, Thanks

Answer 3

Hi @Kiran Kumar

This should have nothing to do with the transmission of tenantId, I did not see the authentication URL in the code snippet you provided. Refer to my sample:

using Microsoft.Graph;
using Microsoft.Graph.Auth;
using Microsoft.Identity.Client;
using Newtonsoft.Json;
using System;
using System.Collections.Generic;
using System.Net.Http;

namespace test2

{
    class Program
    {
        static async System.Threading.Tasks.Task Main(string[] args)
        {

            IConfidentialClientApplication app;
            app = ConfidentialClientApplicationBuilder.Create("{client id}")
                    .WithClientSecret("{client secret}")
                    .WithRedirectUri("{redirect url}")
                    .WithAuthority(new Uri("https://login.microsoftonline.com/{tenant id}"))
                    .Build();

            AuthenticationResult result;

            string[] scopes = new string[] { "https://graph.microsoft.com/.default" };

            result = await app.AcquireTokenForClient(scopes).ExecuteAsync();

            ClientCredentialProvider authProvider = new ClientCredentialProvider(app);

            GraphServiceClient graphClient = new GraphServiceClient(authProvider);

            var driveItem = await graphClient.Users["{user id}"].Drive.Items["{item id}"].Request().GetAsync();

            Console.WriteLine("items:" + JsonConvert.SerializeObject(driveItem));
        }
    }
}

---

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
