C# WPF DocumentViewer, DocumentPaginator, print zoom issues.

Question

When I use DocumentPaginator, I want to print on different printing papers (such as A4, A5, etc.). I have a doc object in xaml as follows:
DocumentPaginator doc = ((content.Content as DocumentViewer).Document).DocumentPaginator;
FittedDocumentPaginator fdp = new FittedDocumentPaginator(doc,0.3 );

    public class FittedDocumentPaginator: DocumentPaginator
    {
        public DocumentPaginator ParentDocument {get; private set;}
        public double Scale {get; private set;}
        private readonly ScaleTransform _sTransform;

        public FittedDocumentPaginator(DocumentPaginator baseDp, double scale)
        {
            if (baseDp == null)
                return;

            ParentDocument = baseDp;
            Scale = scale;
            _sTransform = new ScaleTransform(scale, scale); //Zoom
        }

        private DocumentPage CreatePage(Grid grid)
        {
            var box = this.SizingPageGrid(grid);

            return new DocumentPage(grid, this.PageSize, box, box);
        }

        private Rect SizingPageGrid(Grid grid)
        {
            var box = new Rect(new Point(0, 0), this.PageSize);

            grid.InvalidateArrange();
            grid.UpdateLayout();
            grid.Measure(this.PageSize);
            grid.Arrange(box);

            return box;
        }

        public override DocumentPage GetPage(int pageNumber)
        {

            DocumentPage page = ParentDocument.GetPage(pageNumber);
            ((ContainerVisual)page.Visual).Transform = _sTransform;
            return page;
        }

        public override bool IsPageCountValid
        {
            get {return ParentDocument.IsPageCountValid;}
        }

        public override int PageCount
        {
            get {return ParentDocument.PageCount;}
        }

        public override Size PageSize
        {
            get {return ParentDocument.PageSize;}
            set {ParentDocument.PageSize = value;}
        }

        public override IDocumentPaginatorSource Source
        {
            get {return ParentDocument.Source;}
        }
    }

PrintDialog printDialog;
printDialog.PrintDocument(fdp, "print");

When I use ((ContainerVisual)page.Visual).Transform = _sTransform;, an error is reported that the object of type "System.Windows.Documents.FixedPage" cannot be coerced to type "System.Windows.Media.ContainerVisual".
Please me how can i solve it

Answer 1

I modified your GetPage method, it works for me, you could try it in your code.

MainWindow.xaml:

<StackPanel>
        <Button x:Name="btn" Click="btn_Click" Content="click" Height="40"/>
        <FlowDocumentPageViewer x:Name="content">
            <FlowDocument >
                <BlockUIContainer>
                    <Canvas x:Name="canvas">
                        <TextBlock Text=" hello" />
                        <TextBlock Text=" hello" Margin="0,30"/>
                        <TextBlock Text=" hello" Margin="0,60"/>
                    </Canvas>
                </BlockUIContainer>
            </FlowDocument>
        </FlowDocumentPageViewer>
    </StackPanel>

MainWindow.xaml.cs:

using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Media;
namespace DocumentViewerzoom
{
  public partial class MainWindow : Window
  {
    public MainWindow()
    {
      InitializeComponent();
    }
    private void btn_Click(object sender, RoutedEventArgs e)
    {
      DocumentPaginator doc = (content.Document).DocumentPaginator;
      FittedDocumentPaginator fdp = new FittedDocumentPaginator(doc, 0.3);
      PrintDialog printDialog = new PrintDialog();
      printDialog.PrintDocument(fdp, "print");
    }
  }
  public class FittedDocumentPaginator : DocumentPaginator
  {
    public DocumentPaginator ParentDocument { get; private set; }
    public double Scale { get; private set; }
    private readonly ScaleTransform _sTransform;
    public FittedDocumentPaginator(DocumentPaginator baseDp, double scale)
    {
      if (baseDp == null)
        return;
      ParentDocument = baseDp;
      Scale = scale;
      _sTransform = new ScaleTransform(scale, scale); //Zoom

    }
    private DocumentPage CreatePage(Grid grid)
    {
      var box = this.SizingPageGrid(grid);
      return new DocumentPage(grid, this.PageSize, box, box);
    }
    private Rect SizingPageGrid(Grid grid)
    {
      var box = new Rect(new Point(0, 0), this.PageSize);
      grid.InvalidateArrange();
      grid.UpdateLayout();
      grid.Measure(this.PageSize);
      grid.Arrange(box);
      return box;
    }
    public override DocumentPage GetPage(int pageNumber)
    {
      DocumentPage page = ParentDocument.GetPage(pageNumber);

      ContainerVisual newVisual = new ContainerVisual();
      DrawingVisual pageVisual=page.Visual as DrawingVisual;
      if(pageVisual != null&& pageVisual.Parent != null)
      {
        ContainerVisual parent = pageVisual.Parent as ContainerVisual;
        parent.Children.Remove(pageVisual);
      }
      newVisual.Children.Add(page.Visual);
      newVisual.Transform = _sTransform;
      DocumentPage newPage=new DocumentPage(newVisual);
      return newPage;
    }
    public override bool IsPageCountValid
    {
      get { return ParentDocument.IsPageCountValid; }
    }
    public override int PageCount
    {
      get { return ParentDocument.PageCount; }
    }
    public override Size PageSize
    {
      get { return ParentDocument.PageSize; }
      set { ParentDocument.PageSize = value; }
    }
    public override IDocumentPaginatorSource Source
    {
      get { return ParentDocument.Source; }
    }
  }
}

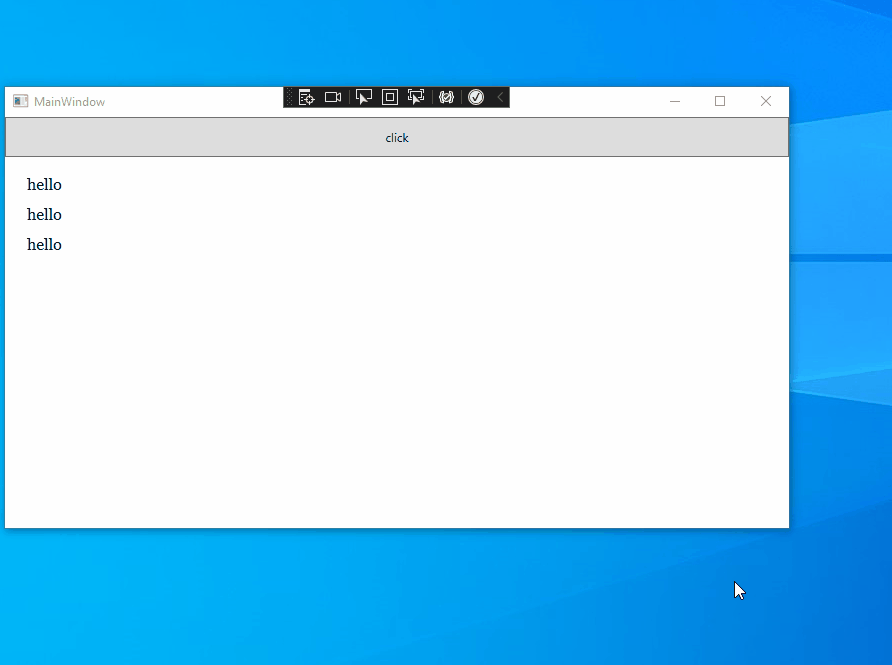

The result:

---
