SCCM server reboot issue

Question

Hello,

I am hoping that someone can assist me in diagnosing why our server did not reboot during the maintenance window. The server in question was stuck and had to be manually restarted. Here is the information from the RebootCoordinator.log:

<![LOG[Reboot Coordinator received a SERVICEWINDOWEVENT START Event]LOG]!><time="03:00:00.001+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:3810">
<![LOG[No CCM Identification blob]LOG]!><time="03:00:00.029+360" date="12-30-2021" component="RebootCoordinator" context="" type="2" thread="11192" file="clientstate.cpp:727">
<![LOG[Not in Maintenance/Service Mode, check ServiceWindowsManager next]LOG]!><time="03:00:00.087+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2142">
<![LOG[CheckRebootWindow: Service Windows found for type:4]LOG]!><time="03:00:00.087+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2155">
<![LOG[ServiceWindowsManager has allowed us to Reboot]LOG]!><time="03:00:00.087+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2176">
<![LOG[User is not logged on]LOG]!><time="03:00:00.088+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2051">
<![LOG[No CCM Identification blob]LOG]!><time="03:00:00.098+360" date="12-30-2021" component="RebootCoordinator" context="" type="2" thread="11192" file="clientstate.cpp:727">
<![LOG[Not in Maintenance/Service Mode, check ServiceWindowsManager next]LOG]!><time="03:00:00.128+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2142">
<![LOG[CheckRebootWindow: Service Windows found for type:4]LOG]!><time="03:00:00.128+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2155">
<![LOG[ServiceWindowsManager has allowed us to Reboot]LOG]!><time="03:00:00.128+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:2176">
<![LOG[MTC task does not exist. Creating new request.]LOG]!><time="03:00:00.133+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:1522">
<![LOG[MTC allowed us to reboot]LOG]!><time="03:00:00.143+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:1539">
<![LOG[Unable to find CCM_PrePostActions.SiteSettingsKey=1.]LOG]!><time="03:00:00.175+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="Orchestration.cpp:34">
<![LOG[Orchestration lock is not required.]LOG]!><time="03:00:00.176+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="Orchestration.cpp:53">
<![LOG[The client is instructed to  enforce reboots.]LOG]!><time="03:00:00.193+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:3500">
<![LOG[The client is instructed to disallow server sku reboots.]LOG]!><time="03:00:00.193+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:3514">
<![LOG[Raised MEMRebootRequest event: Requested '12/29/2021 7:49:11 AM', restart time '12/30/2021 3:00:00 AM', notify count 0, mandatory 1, no logon user 1, user initiated 0, time-out initiated 0, initiated in final countdown 0, suspended bit-locker 0]LOG]!><time="03:00:00.194+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:4416">
<![LOG[System reboot request succeeded.]LOG]!><time="03:00:01.752+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:1332">
<![LOG[Reboot initiated]LOG]!><time="03:00:01.752+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="11192" file="rebootcoordinator.cpp:1372">
<![LOG[Received system task 'PreOSShutdown']LOG]!><time="03:01:27.005+360" date="12-30-2021" component="RebootCoordinator" context="" type="1" thread="2432" file="systemtasks.cpp:33">

CcmExec.log shows:

<![LOG[Notifying endpoint 'RebootCoord' of __InstanceModificationEvent settings change on object SMS_MaintenanceTaskRequests.TaskID="c77e38a4-24c0-4d6c-975c-34ca12722471" for user 'S-1-5-18'.]LOG]!><time="03:00:00.167+360" date="12-30-2021" component="CCMEXEC" context="" type="1" thread="10140" file="wmisettings.cpp:203">
<![LOG[*** Keep the system awake]LOG]!><time="03:00:00.262+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="5956" file="powerstatemanager.cpp:1054">
<![LOG[*** System is now free to go to sleep]LOG]!><time="03:00:00.313+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="5956" file="powerstatemanager.cpp:1065">
<![LOG[Sending PreOSShutdown event.]LOG]!><time="03:01:26.969+360" date="12-30-2021" component="CCMEXEC" context="" type="1" thread="3344" file="entrypoint.cpp:3001">
<![LOG[SystemTaskProcessor::QueueEvent(PreOSShutdown, 1)]LOG]!><time="03:01:26.972+360" date="12-30-2021" component="CCMEXEC" context="" type="1" thread="3344" file="systemtaskprocessor.cpp:469">
<![LOG[BEGIN ExecuteSystemTasks('PreOSShutdown')]LOG]!><time="03:01:26.973+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="12732" file="systemtask.cpp:581">
<![LOG[Invoking system task 'RebootCoordPreOSShutdown' via ICcmSystemTask2 interface.]LOG]!><time="03:01:27.005+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="2432" file="systemtask.cpp:178">
<![LOG[Invoking system task 'SysPerfPreOSShutdown' via ICcmSystemTask2 interface.]LOG]!><time="03:01:27.022+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="11192" file="systemtask.cpp:178">
<![LOG[Invoking system task 'CIStore_PreOSShutdown'.]LOG]!><time="03:01:27.022+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="11192" file="systemtask.cpp:189">
<![LOG[Invoking system task 'UpdatesDeploymentPreOSShutdownTask' via ICcmSystemTask2 interface.]LOG]!><time="03:01:27.023+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="2432" file="systemtask.cpp:178">
<![LOG[END ExecuteSystemTasks('PreOSShutdown')]LOG]!><time="03:01:27.024+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="12732" file="systemtask.cpp:697">
<![LOG[WM_QUIT received in the main message loop.]LOG]!><time="03:01:27.139+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="entrypoint.cpp:3670">
<![LOG[Shutting down CCMEXEC...]LOG]!><time="03:01:27.144+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="shutdown.cpp:55">
<![LOG[BEGIN ExecuteSystemTasks('PreShutdown')]LOG]!><time="03:01:27.660+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="10492" file="systemtask.cpp:581">
<![LOG[Failed to open to WMI namespace '\\.\root\ccm\Policy\Machine' (8007045b)]LOG]!><time="03:01:27.668+360" date="12-30-2021" component="CcmExec" context="" type="3" thread="10492" file="WmiNamespace.cpp:305">
<![LOG[Could not connect to machine policy WMI namespace to get service settings.]LOG]!><time="03:01:27.668+360" date="12-30-2021" component="CcmExec" context="" type="3" thread="10492" file="systemtask.cpp:603">
<![LOG[END ExecuteSystemTasks('PreShutdown')]LOG]!><time="03:01:27.668+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="10492" file="systemtask.cpp:697">
<![LOG[BEGIN ExecuteSystemTasks('Shutdown')]LOG]!><time="03:01:27.668+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="10492" file="systemtask.cpp:581">
<![LOG[Failed to open to WMI namespace '\\.\root\ccm\Policy\Machine' (8007045b)]LOG]!><time="03:01:27.675+360" date="12-30-2021" component="CcmExec" context="" type="3" thread="10492" file="WmiNamespace.cpp:305">
<![LOG[Could not connect to machine policy WMI namespace to get service settings.]LOG]!><time="03:01:27.675+360" date="12-30-2021" component="CcmExec" context="" type="3" thread="10492" file="systemtask.cpp:603">
<![LOG[END ExecuteSystemTasks('Shutdown')]LOG]!><time="03:01:27.675+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="10492" file="systemtask.cpp:697">
<![LOG[CUpdatesAgent::FinalRelease entered]LOG]!><time="03:01:27.684+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="cupdatesagent.cpp:78">
<![LOG[Waiting up to 2 seconds for active tasks to complete...]LOG]!><time="03:01:27.727+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="shutdown.cpp:203">
<![LOG[Error waiting for tasks (0x87d00213), will shut down anyway.]LOG]!><time="03:01:29.735+360" date="12-30-2021" component="CcmExec" context="" type="3" thread="8604" file="shutdown.cpp:207">
<![LOG[Finished shutting down CCMEXEC.]LOG]!><time="03:01:29.735+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="shutdown.cpp:212">
<![LOG[Unregistering Power Events]LOG]!><time="03:01:29.735+360" date="12-30-2021" component="CcmExec" context="" type="1" thread="8604" file="entrypoint.cpp:2642">
<![LOG[ServiceWindowManager::FinalRelease entered]LOG]!><time="03:01:29.735+360" date="12-30-2021" component="CCMEXEC" context="" type="1" thread="10296" file="servicewindowmanager.cpp:61">
<![LOG[ServiceWindowManager::FinalRelease entered]LOG]!><time="03:01:29.735+360" date="12-30-2021" component="CCMEXEC" context="" type="1" thread="10296" file="servicewindowhandler.cpp:2060">

Not sure why the server did not fully reboot. All of our servers are set to reboot after installing updates during the maintenance window.

Thanks in advance.

Answer 1

The log says" The client is instructed to disallow server sku reboots."

Answer 2

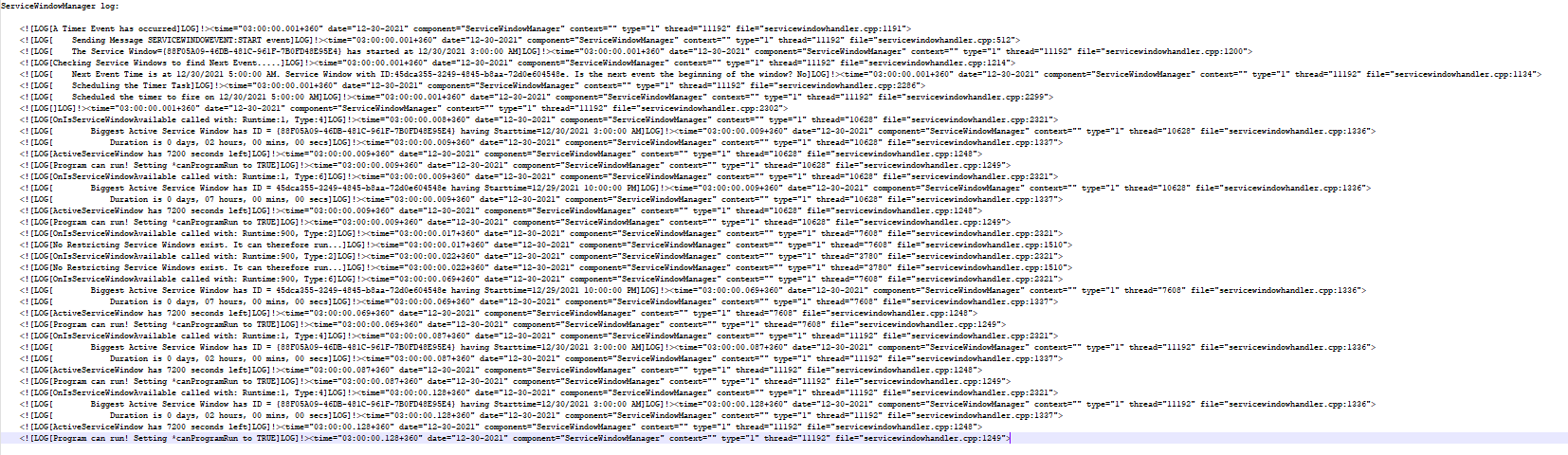

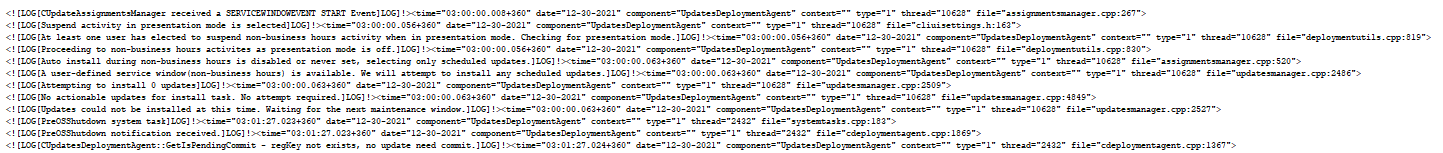

Anything on servicewindow manager log? Also, what do wuahandler and updatesdeployment logs say?

Answer 3

Hi @PB_JBergener ,

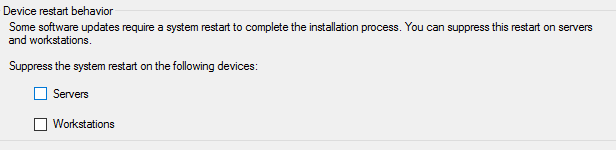

Could we know if we check the option of suppress the system restart on servers or workstations? If so, the client could not be restarted during the maintenance window.

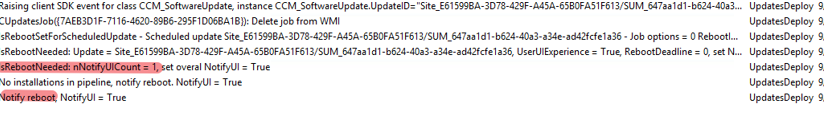

Besides, if the operation of reboot is normal, we could see the following the screenshot, please refer to it:

---
