How to parse numbers from screen

Mattia Fanti 356 Reputation points
2022-01-02T00:59:28.32+00:00

Hi, I'm trying to parse numbers, specifically percentages using an ocr.
It's plenty of topics online but 99% are all dated and old and all of them are asking how to get text from an image.
In my case, I want simply a picturebox that will scan whatever text there is under.
I found a quite old youtube tutorial watch

and the code that is stated on the bio is

Imports Emgu.CV
Imports Emgu.Util
Imports Emgu.CV.OCR
Imports Emgu.CV.Structure

Public Class Form1

Dim OCRz As Tesseract = New Tesseract("tessdata", "eng", Tesseract.OcrEngineMode.OEM_TESSERACT_ONLY)
Dim pic As Bitmap = New Bitmap(270, 100)
Dim gfx As Graphics = Graphics.FromImage(pic)

Private Sub Timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Timer1.Tick

'If Windows XP
gfx.CopyFromScreen(New Point(Me.Location.X + PictureBox1.Location.X + 4, Me.Location.Y + PictureBox1.Location.Y + 30), New Point(0, 0), pic.Size)
PictureBox1.Image = pic

'If Windows 7
'gfx.CopyFromScreen(MousePositi­on, New Point(0, 0), pic.Size)

End Sub

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click

OCRz.Recognize(New Image(Of Bgr, Byte)(pic))
RichTextBox1.Text = OCRz.GetText

End Sub
End Class

It is a 8+ y old code so I think there must be something better. I downloaded emgu from nuget, the first and most downloaded one emgu package but at runtime I get the error "'Unable to create ocr model using Path 'tessdata' and language 'eng'.'" At compile time I get the error "'Tesseract' is not defined.". That's really frustrating cause I've been looking everywhere, also in c# forums but none that can help me. Do you have any solution? I would appreciate your help. Thanks

Developer technologies VB
0 comments No comments
{count} votes

Accepted answer
  1. Castorix31 90,521 Reputation points
    2022-01-03T08:14:10.833+00:00

    From comments on the first sample, updated sample by using a transparent PictureBox (it seems to work better than with a Bitmap...)

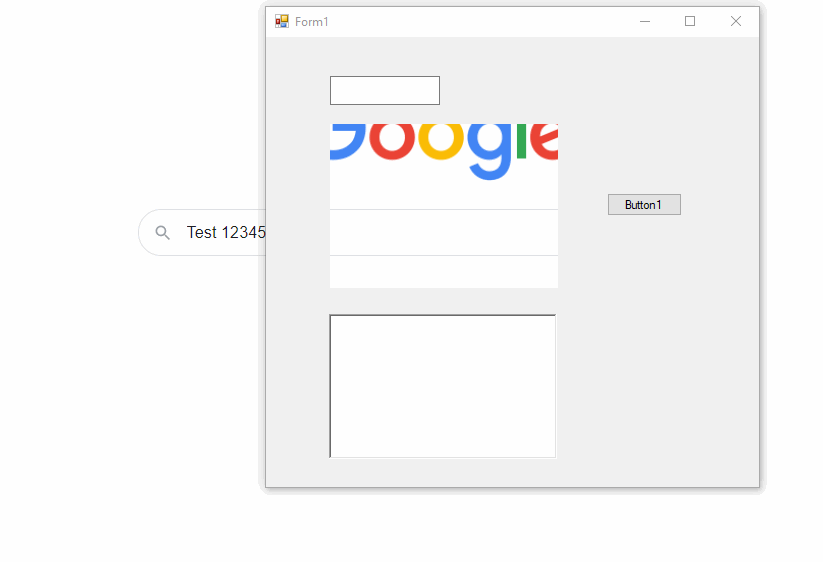

    Add a PictureBox with a transparent color, a Button for the click, a RichTextBox =>

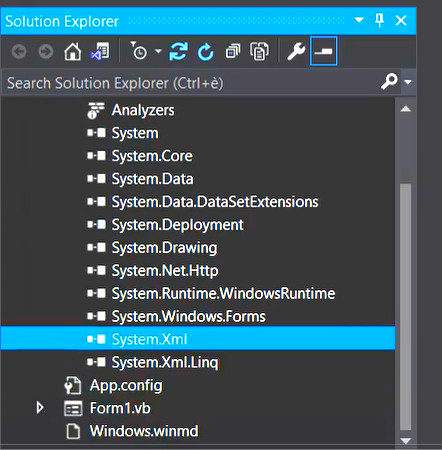

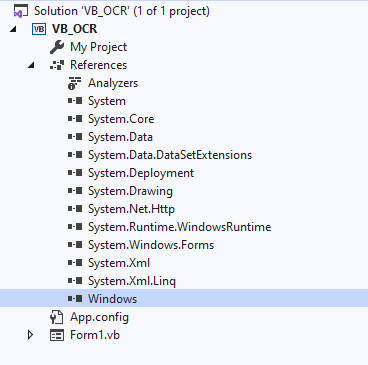

    ' Add reference to : "C:\Program Files (x86)\Windows Kits\10\UnionMetadata\Windows.winmd"
    ' For Await :
    ' Add reference to : "C:\Program Files (x86)\Reference Assemblies\Microsoft\Framework\.NETCore\v4.5\System.Runtime.WindowsRuntime.dll"

    Imports Windows.Media.Ocr
    ' For .AsStream()
    Imports System.IO
    Imports System.Runtime.InteropServices.WindowsRuntime

    Public Class Form1
        Private Async Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
            Dim softwareBmp As Windows.Graphics.Imaging.SoftwareBitmap
            Using bmp As Bitmap = New Bitmap(PictureBox1.Width, PictureBox1.Height)
                Using g As Graphics = Graphics.FromImage(bmp)
                    Dim pt As Point = Me.PointToScreen(New Point(PictureBox1.Left, PictureBox1.Top))
                    g.CopyFromScreen(pt.X, pt.Y, 0, 0, bmp.Size, CopyPixelOperation.SourceCopy)
                    Using memStream = New Windows.Storage.Streams.InMemoryRandomAccessStream()
                        bmp.Save(memStream.AsStream(), System.Drawing.Imaging.ImageFormat.Bmp)

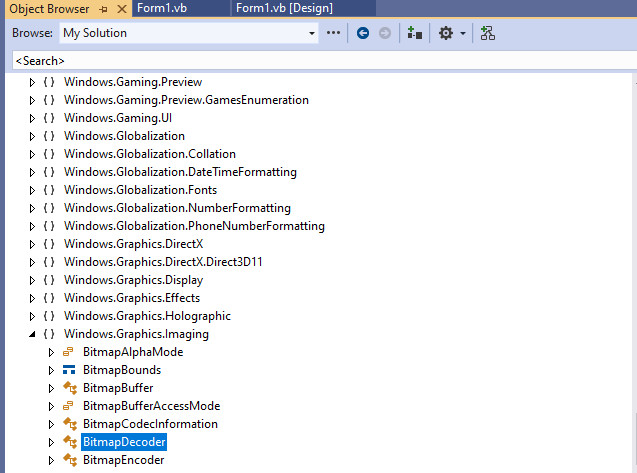

                        Dim decoder As Windows.Graphics.Imaging.BitmapDecoder = Await Windows.Graphics.Imaging.BitmapDecoder.CreateAsync(memStream)
                        softwareBmp = Await decoder.GetSoftwareBitmapAsync()
                    End Using
                End Using
            End Using

            Dim ocrEng = OcrEngine.TryCreateFromUserProfileLanguages()
            'Dim ocrEng = OcrEngine.TryCreateFromLanguage(New Windows.Globalization.Language("en-US"))

            ' For test
            Dim languages As IReadOnlyList(Of Windows.Globalization.Language) = ocrEng.AvailableRecognizerLanguages
            For Each language In languages
                Console.WriteLine(language.LanguageTag)
            Next
            Dim r = ocrEng.RecognizerLanguage
            Dim n = ocrEng.MaxImageDimension

            Dim ocrResult = Await ocrEng.RecognizeAsync(softwareBmp)
            'Console.WriteLine(ocrResult.Text)
            RichTextBox1.Text = ocrResult.Text
            ' For test (extract lines from result text)
            Dim lines As IReadOnlyList(Of OcrLine) = ocrResult.Lines
            For Each line In lines
                Console.WriteLine(line.Text)
            Next
        End Sub
    End Class

    1 person found this answer helpful.

1 additional answer

Sort by: Most helpful
  1. Castorix31 90,521 Reputation points
    2022-01-02T14:13:02.21+00:00

    I tested Windows.Media.Ocr
    but the result is not perfect
    I get
    "Forml Button I"
    with this test with a Form and a Button :

    ' Add reference to : "C:\Program Files (x86)\Windows Kits\10\UnionMetadata\Windows.winmd"
    ' For Await :
    ' Add reference to : "C:\Program Files (x86)\Reference Assemblies\Microsoft\Framework\.NETCore\v4.5\System.Runtime.WindowsRuntime.dll"

    Imports Windows.Media.Ocr

    Public Class Form1
        Private Async Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
            Dim sFile As String = "e:\ScreenCopy_Test.bmp"
            Using bitmap As Bitmap = New Bitmap(Me.Width, Me.Height, System.Drawing.Imaging.PixelFormat.Format32bppArgb)
                Using g As Graphics = Graphics.FromImage(bitmap)
                    g.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
                    g.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBilinear
                    g.CompositingQuality = Drawing2D.CompositingQuality.HighQuality
                    g.PixelOffsetMode = Drawing2D.PixelOffsetMode.HighQuality
                    g.CopyFromScreen(Me.Left, Me.Top, 0, 0, bitmap.Size, CopyPixelOperation.SourceCopy)
                End Using
                bitmap.Save(sFile, System.Drawing.Imaging.ImageFormat.Bmp)
            End Using

            Dim ocrEng = OcrEngine.TryCreateFromUserProfileLanguages()
            'Dim ocrEng = OcrEngine.TryCreateFromLanguage(New Windows.Globalization.Language("en-US"))
            Dim languages As IReadOnlyList(Of Windows.Globalization.Language) = ocrEng.AvailableRecognizerLanguages
            For Each language In languages
                Console.WriteLine(language.LanguageTag)
            Next
            Dim r = ocrEng.RecognizerLanguage
            Dim n = ocrEng.MaxImageDimension
            Dim file = Await Windows.Storage.StorageFile.GetFileFromPathAsync(sFile)
            Dim stream = Await file.OpenAsync(Windows.Storage.FileAccessMode.Read)
            Dim bitmapDecoder = Await Windows.Graphics.Imaging.BitmapDecoder.CreateAsync(stream)
            Dim softwareBitmap = Await bitmapDecoder.GetSoftwareBitmapAsync()
            Dim ocrResult = Await ocrEng.RecognizeAsync(softwareBitmap)
            Console.WriteLine(ocrResult.Text)
        End Sub
    End Class
