Reboot to PXE Process

Boopathi S 3,866 Reputation points
2022-01-04T20:16:24.607+00:00

Hi,

  1. Boot a HP laptop from PXE
  2. It loads the boot image from the Distribution Point

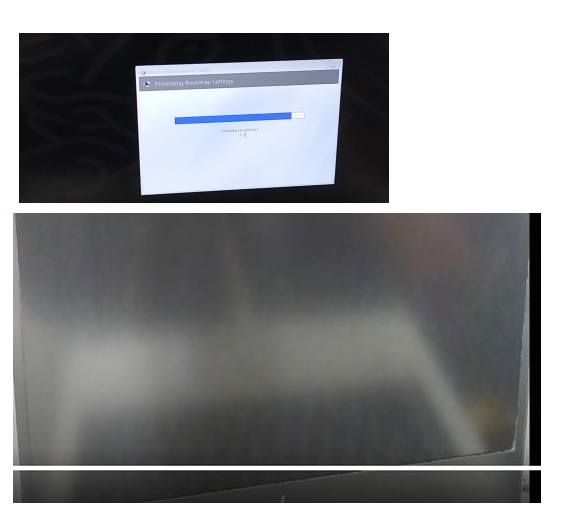

  1. It waits for few seconds as per above screenshot and restarts
  2. Again boots from PXE

Please help how to fix this issue.

Microsoft Security | Intune | Configuration Manager | Deployment
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Amandayou-MSFT 11,166 Reputation points
    2022-01-05T04:27:13.783+00:00

    Hi @Boopathi S ,

    This is mostly likely due to the lack of correct network drivers in the boot image.

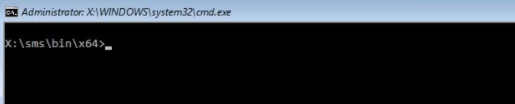

    To verify, we should enable command-prompt support in the boot image and then perform an ipconfig and/or examine the smsts.log.

    About adding Network (and Storage) Drivers to Boot Images in SCCM, refer to this article:
    https://emeneye.wordpress.com/2017/01/13/adding-network-and-storage-drivers-to-boot-images-in-sccm/
    Note: Non-Microsoft link, just for the reference.

    If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
