Background Color for Launcher Icons

Question

Background Color for Launcher Icons

Nathan Sokalski 4,111

This is probably a very simple question, but I can't quite seem to find the answer. I want to change the background of the launcher icons for my app (ic_launcher/ic_launcher_round). All I need is a solid color. I have found multiple articles that use ic_launcher.xml & ic_launcher_round.xml files containing an adaptive-icon which contains a background in the mipmap-anydpi-v26 folder. However, I do not want a mipmap-anydpi-v26 folder because my app will not be used by v26 devices. All the step-by-step tutorials I have found use Android Studio, and do not show the code it creates. Is there any way to specify a launcher icon background color with Xamarin.Android & Visual Studio?

1 answer

Your answer

Answer 1

Anonymous

Hello,

Welcome to our Microsoft Q&A platform!

I do not want a mipmap-anydpi-v26 folder because my app will not be used by v26 devices.

mipmap-anydpi-v26 is used in API 26 or later. Android 8.0 or later must create alternative drawable resources in app in res/mipmap-anydpi-v26/ic_launcher.xml

Is there any way to specify a launcher icon background color with Xamarin.Android & Visual Studio?

Xamarin.Android do not have doc to change the launcher icon background color. But have doc to change the icon.

If you want to do it, I recommend you to using following way to change it.

Open the mipmap-anydpi-v26, open the icon.xml and the icon_round.xml, check the value of <background /> tag, for example, my <background android:drawable="@color/launcher_background" /> , launcher_background value store in the colors.xml(Open your android project, find the Resources folder, open the values, find the colors.xml file ).

Change value of the launcher_background, this background color of icon will be changed.

   <color name="launcher_background">#00FFFF</color>

Best Regards,

Leon Lu

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Nathan Sokalski 4,111 Reputation points

2022-01-18T03:06:19.04+00:00
I have created a mipmap-anydpi-v26 folder with ic_launcher.xml & ic_launcher_round.xml, both of which are marked as AndroidResource & contain the following:

<adaptive-icon xmlns:android="http://schemas.android.com/apk/res/android"> <background android:drawable="@color/ic_launcher_background"/> <foreground android:drawable="@mipmap/ic_launcher_foreground"/> </adaptive-icon>

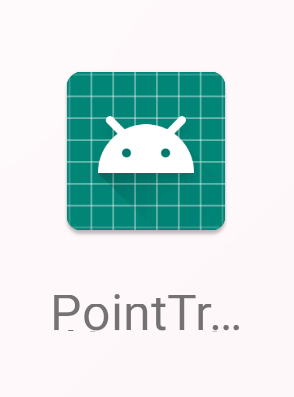

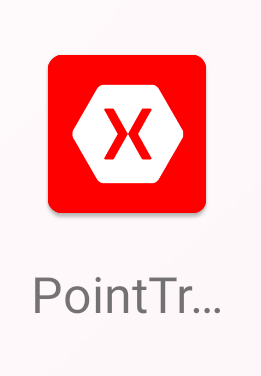

This seems to work fine. However, if I change the drawable property of the foreground element (to ic_launcher or ic_launcher_round), it does not seem to work. All of my mimpap-**** folders contain ic_launcher.png & ic_launcher_round.png files (all of which are marked as AndroidResource), along with the ic_launcher_foreground.png files. Here are screenshots of using ic_launcher_foreground vs ic_launcher & ic_launcher_round:

As you can see, the first one uses the background color resource I specified & the ic_launcher_foreground.png image from one of the mipmap folders. The second one, however, does not (or maybe it is just hidden) use a background, and I have no idea where the image is coming from, because it is not the ic_launcher.png or ic_launcher_round.png files in my mipmap folders. Why does this work for ic_launcher_foreground.png but not the others?
Anonymous

2022-01-18T07:50:36.193+00:00

Please put your ic_launcher.png to the mipmap-hdpi, mipmap-mdpi, mipmap-xhdpi, mipmap-xxhdpi and mipmap-xxxhdpi folders(If you do not know how to generate icon for different resolution, please search Launcher icon generator - Android Asset Studio - GitHub Pages in google, you will find a tool to generate it) . Then open the mipmap-anydpi-v26, you will find two file icon.xml and icon_round.xml, you need to change the value of <foreground android:drawable="@mipmap/ic_launcher" /> in this two xml file.
`
Nathan Sokalski 4,111 Reputation points

2022-01-18T19:30:34.883+00:00

Once I changed the xml file names to icon.xml & icon_round.xml it seems to work (I also had to modify AndroidManifest.xml by hand, Visual Studio doesn't seem to be displaying icon.xml or icon_round.xml in the list of choices for Application icon under the Android Manifest section). Is it possible that it was confusing ic_launcher.xml with ic_launcher.png (since they would have the same name as resources)? Either way, it is now working, thanks for your help!
Anonymous

2022-01-19T07:11:15.547+00:00

Is it possible that it was confusing ic_launcher.xml with ic_launcher.png (since they would have the same name as resources

Yes, use different name is better.
Nathan Sokalski 4,111 Reputation points

2022-01-19T15:54:35.237+00:00

Thank you, I will be sure to do that in the future (I think it may have been the cause of my problem, but it is now fixed). I was asking because the files created by the project template in Visual Studio used the same name for the *.xml & *.png files, so I guess I assumed there was no reason to change the names. I think the template should be modified so that there is no confusion about or renaming necessary when creating & naming the launcher icon resources. Thanks again!
Anonymous

2022-01-20T08:14:14.97+00:00

You can send feedback in the VS about changing the names.
