How to update progress bar value in listview in WPF

Question

How to update progress bar value in listview in WPF

Nehal Chaudhari 41

I am developing a Download Manager. In which i am add files list in listview. in listview i have added progressbar. but how can i update its value.
Value should be updated as the file downloads.

This is my MainWindow.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Net;
using System.ComponentModel;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace DownloadManager
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
            List<string> Namelist = new List<string>();
        public MainWindow()
        {

            InitializeComponent();

        }

        private void Add_MouseUp(object sender, MouseButtonEventArgs e)
        {
            Add_URL au = new Add_URL();

                au.ShowDialog();


        }
            WebClient client1 = new WebClient();
        public void download(Add_URL a, String Text)
        {
            Uri uri = new Uri(Text);
            String FileName = System.IO.Path.GetFileName(uri.AbsolutePath);
            client1.DownloadFileAsync(uri, "E:/" + FileName);
            client1.DownloadProgressChanged += downloadprogress;
        }


        private void Pause_MouseUp(object sender, MouseButtonEventArgs e)
        {


           // client = new WebClient();
            client1.CancelAsync();
           // MessageBoxResult result = MessageBox.Show("Pause");

        }
        Double a1;
        public class MyItem
        {
            public String FileName { get; set; }
            // public string Progressbar { get; set; }

            MainWindow o = new MainWindow();
            public string Size { get; set; }

            public string Time { get; set; }

           private double _progress;
           public double Progress
           {

           get { return _progress; }

             set { _progress =o.a1; NotifyPropertyChanged("Progress"); }
           }

           public event PropertyChangedEventHandler PropertyChanged;
           private void NotifyPropertyChanged(string propertyName = "Progress")
           {
            if (PropertyChanged != null)
                  PropertyChanged(this, new PropertyChangedEventArgs(propertyName));
            }

            public double percent
            {
                get;
                set;
            }
        }

        String filename;
        public void AddItem(Add_URL a, String Filename)
        {
            filename = Filename;
            this.FilesList.Items.Add(new MyItem { FileName = "Engineering", Progress= a1, Size ="100",Time="10.30 PM" });



            // NoFiles.Visibility = Visibility.Hidden;
            // NoFileImage.Visibility = Visibility.Hidden;

        }
        public double Percentag { get; set; }

        double Percentage;
        public void downloadprogress(object sender, DownloadProgressChangedEventArgs e)
          {
            pb.Minimum = 0;
            double receive = double.Parse(e.BytesReceived.ToString());
            double Filesize = double.Parse(e.TotalBytesToReceive.ToString());
            Percentage = receive / Filesize* 100;
           a1= int.Parse(Math.Truncate(Percentage).ToString());
            pb.Value= int.Parse(Math.Truncate(Percentage).ToString());
            //pb1.Value = pb.Value;
           // MyItem o = new MyItem();
            //o.percent = pb.Value;
        }
        private void Resume_MouseUp(object sender, MouseButtonEventArgs e)
        {
            MessageBoxResult result = MessageBox.Show("Resume");

        }

        private void Delete_MouseUp(object sender, MouseButtonEventArgs e)
        {
            FilesList.Items.RemoveAt(FilesList.SelectedIndex);

       //    NoFileImage.Visibility=System.Windows.Visibility.Hidden;
        }


     //  public void hide()
        //{
            // this.ShowActivated = false;
       //     NoFileImage.Visibility = Visibility.Hidden;
         //   MessageBoxResult result = MessageBox.Show("Delete");
        //}

        private void CheckBox_Checked(object sender, RoutedEventArgs e)
        {
         }

        private void Search_MouseUp(object sender, MouseButtonEventArgs e)
        {
           // Search search = new Search();
            String name2 = "En";
            //   search.ShowDialog();
            //  private ListView FilesList = new ListView();
            foreach (ListViewItem item in FilesList.Items)
            {
                if (!item.ToString().ToLower().Contains(name2.ToLower()))
                {
                    FilesList.Items.Remove(item);
                }
            }
        }

        private void ChangePath_MouseUp(object sender, MouseButtonEventArgs e)
        {
            ChangePath cp = new ChangePath();
            cp.ShowDialog();
        }

        private void Button_Click(object sender, EventArgs e)
        {
            String name2 = "En";
            int i = 0;
            foreach (Object  item in FilesList.Items)
            {
                i++;
               if (!item.ToString().ToLower().Contains(name2.ToLower()))
               {
                    MessageBoxResult result = MessageBox.Show(name2+ " Item Found at "+i+" Line");
                    //FilesList.Items.Remove(item);
                }
                else
                {
                    MessageBoxResult result = MessageBox.Show("No Item Found");

                }
            }
        }
    }
}

and this is my XAML code

                        <GridViewColumn.CellTemplate  >
                            <DataTemplate >
                                <ProgressBar x:Name="progressbar" Maximum="100" Width="140"  Value="{Binding Path=Progress}" />
                            </DataTemplate>
                        </GridViewColumn.CellTemplate>
                    </GridViewColumn>

Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff

2022-01-27T07:13:05.997+00:00

Hi,@Nehal Chaudhari . Is there an update to your question? Peter's answer is great, is it solve your problem? If so, you could accept its solution as an answer, it will help community members with similar problems.

3 answers

Your answer

Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff

2022-01-27T07:13:05.997+00:00

Hi,@Nehal Chaudhari . Is there an update to your question? Peter's answer is great, is it solve your problem? If so, you could accept its solution as an answer, it will help community members with similar problems.

Answer 1

Ken Tucker 5,861

Looks like your progressbar is bound to the progress property. So setting Progress's value should update the progress bar.

     public void downloadprogress(object sender, DownloadProgressChangedEventArgs e)
       {
         pb.Minimum = 0;
         double receive = double.Parse(e.BytesReceived.ToString());
         double Filesize = double.Parse(e.TotalBytesToReceive.ToString());
         Percentage = (receive / Filesize)* 100;
        a1= int.Parse(Math.Truncate(Percentage).ToString());
         pb.Value= int.Parse(Math.Truncate(Percentage).ToString());
         Progress=Precentage;
     }

Nehal Chaudhari 41 Reputation points

2022-01-23T12:54:30.72+00:00

Thank You sir for answer but still it is not working.

Answer 2

Hi,
you can use Progress = e.ProgressPercentage;

Try following demo:

XAML:

<Window x:Class="WpfApp1.Window101"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp101"
        mc:Ignorable="d"
        Title="NehalChaudhari-1778_220123" Height="450" Width="800">
  <Window.DataContext>
    <local:ViewModel/>
  </Window.DataContext>
  <StackPanel>
    <Button Content="Start" Command="{Binding}" Margin="5"/>
    <ProgressBar Minimum="0"
                 Maximum="100"
                 Value="{Binding Path=Progress}"
                 Height="20"
                 Margin="5"/>
  </StackPanel>
</Window>

And ViewModel:

using System;
using System.ComponentModel;
using System.Net;
using System.Runtime.CompilerServices;
using System.Windows;
using System.Windows.Input;

namespace WpfApp101
{
  public class ViewModel : ICommand, INotifyPropertyChanged
  {
    WebClient client1 = new WebClient();
    string Text = "https://sample-videos.com/doc/Sample-doc-file-1000kb.doc";
    public void Execute(object parameter)
    {
      Uri uri = new Uri(Text);
      String FileName = System.IO.Path.GetFileName(uri.AbsolutePath);
      client1.DownloadFileAsync(uri, @"c:/temp/" + FileName);
      client1.DownloadProgressChanged += downloadprogress;
    }

    public double Progress { get; set; }
    private void downloadprogress(object sender, DownloadProgressChangedEventArgs e)
    {
      Progress = e.ProgressPercentage;
      OnPropertyChanged(nameof(Progress));
    }

    public event EventHandler CanExecuteChanged;
    public bool CanExecute(object parameter) => true;
    public event PropertyChangedEventHandler PropertyChanged;
    private void OnPropertyChanged([CallerMemberName] string propName = "") => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
  }
}

Result:

Nehal Chaudhari 41 Reputation points

2022-01-24T05:34:20.867+00:00

Thank you sir, but I want to implement this in listview for each row.

Answer 3

Hi,
you can use my solution inside ListView. Try following demo:

XAML:

<Window x:Class="WpfApp1.Window101"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp101"
        mc:Ignorable="d"
        Title="NehalChaudhari-1778_220123" Height="450" Width="800">
  <Window.DataContext>
    <local:ViewModel/>
  </Window.DataContext>
  <ListView ItemsSource="{Binding View}">
    <ListView.View>
      <GridView>
        <GridView.Columns>
          <GridViewColumn Header="ID" DisplayMemberBinding="{Binding ID}"/>
          <GridViewColumn Header="Download">
            <GridViewColumn.CellTemplate  >
              <DataTemplate >
                <Button Content="Start" Command="{Binding}"/>
              </DataTemplate>
            </GridViewColumn.CellTemplate>
          </GridViewColumn>
          <GridViewColumn>
            <GridViewColumn.CellTemplate  >
              <DataTemplate >
                <ProgressBar x:Name="progressbar" Maximum="100" Width="140" Height="20" Value="{Binding Progress}"/>
              </DataTemplate>
            </GridViewColumn.CellTemplate>
          </GridViewColumn>
        </GridView.Columns>
      </GridView>
    </ListView.View>
  </ListView>
</Window>

classes:

using System;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Net;
using System.Runtime.CompilerServices;
using System.Windows;
using System.Windows.Data;
using System.Windows.Input;
using System.Windows.Threading;

namespace WpfApp101
{
  public class ViewModel
  {
    public ViewModel() => cvs.Source = GetData();

    CollectionViewSource cvs = new CollectionViewSource();
    public ICollectionView View { get => cvs.View; }

    private ObservableCollection<Data> GetData()
    {
      ObservableCollection<Data> col = new ObservableCollection<Data>();
      for (int i = 1; i < 10; i++) col.Add(new Data() { ID = i });
      return col;
    }
  }

  public class Data : ICommand, INotifyPropertyChanged
  {
    public Data() => disp = Dispatcher.CurrentDispatcher;

    private Dispatcher disp;
    public int ID { get; set; }
    public string Text { get; set; } = "https://sample-videos.com/doc/Sample-doc-file-1000kb.doc";

    WebClient client1 = new WebClient();
    public void Execute(object parameter)
    {
      if (client1.IsBusy) return;
      Progress = 0;
      Uri uri = new Uri(Text);
      String FileName = System.IO.Path.GetFileName(uri.AbsolutePath);
      client1.DownloadFileAsync(uri, @"c:/temp/" + FileName);
      client1.DownloadProgressChanged += downloadprogress;
    }

    public double Progress { get; set; }
    private void downloadprogress(object sender, DownloadProgressChangedEventArgs e)
    {
      Progress = e.ProgressPercentage;
      OnPropertyChanged(nameof(Progress));
    }

    public event EventHandler CanExecuteChanged;
    public bool CanExecute(object parameter) => true;
    public event PropertyChangedEventHandler PropertyChanged;
    private void OnPropertyChanged([CallerMemberName] string propName = "") => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
  }
}

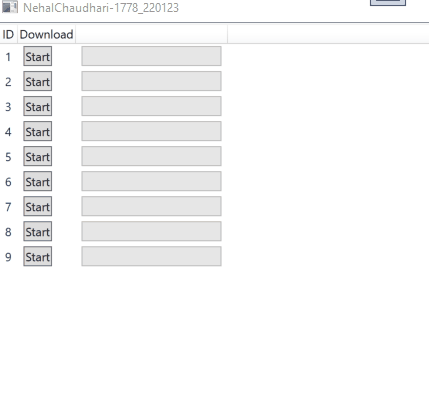

Result:
