Keyset does not exist

Question

Hi,

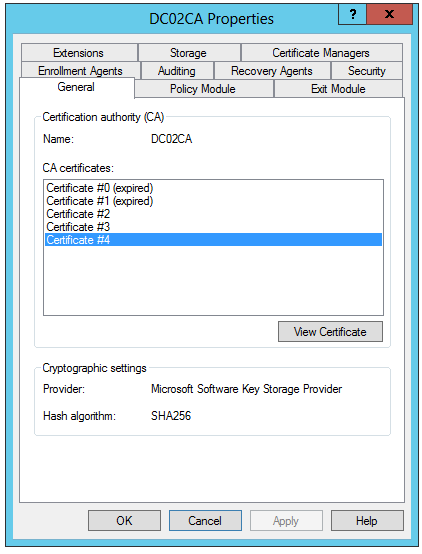

I'm trying to back up our certificates in Active directory Certificate authority in preparation for an upcoming certificate renewal. We have two older certificates that act as part of the certificate chain and we're wondering if it would be ok to remove them? Currently we are unable to backup the CA as the two older certificates are missing their private keys.

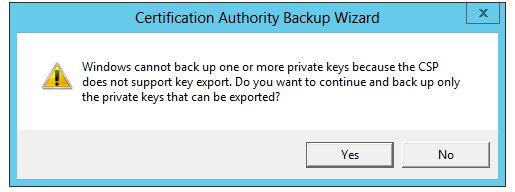

Attempting to continue the backup regardless, results in the following error.

Would it be best to start a new certificate chain? Or to remove the expired certificates and backup the valid ones?

Answer 1

Hello @James Pope

Can you share the output of this so we can see what CSP you are using?

certutil -getreg ca\csp

Most likely one of the keys is marked as non-exportable and you wont be able to fully move the CA. But it may or may not make a difference.

Can you then dump

certutil -getreg ca\cacerthash

This will give you the thumbprint for each of the certificates the CA is using and needs to export. You can then go into the Local Machine Certificates (mmc.exe add Snap In/Certificates/Local Computer) and look in Personal/Certificates and find the 5 certificates. See if you can export them individually to a PFX.

And initially if there are no available values:

Any idea what happened to the previous private keys? Your CA may be unable to properly create the correct CRLs without the previous private keys. If you truly dont have access to the old keys anymore, you can change the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc\Configuration\PDC-CertificateAuthority\cacerthash value remove the old thumbprints and replace with a hypen like this:

-
-
-
-
ba 01 61 3a 4c 6e 9e 84 bb 6b 72 19 89 77 47 48 4a 02 0d ba

Stop and restart the CA to read the value. I would recommend backing up/exporting the registry key for the CA prior to any changes.

---------------------------------------------------------------------------------------

--If the reply is helpful, please Upvote and Accept as answer--
