why on my visual studio 2022 toolbox there is no Serialport option available, is this a system error? Please help

Hi @Abdul Rahman , In the .Net Core project, there is no SerialPort in the toolbox of the design view, but you can manually import the package "System.IO.Ports". Then you can use SerialPort Class (still not showing in the toolbox though). Best Regards. Jiachen Li ---------- If the answer is helpful, please click " Accept Answer " and upvote it. Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

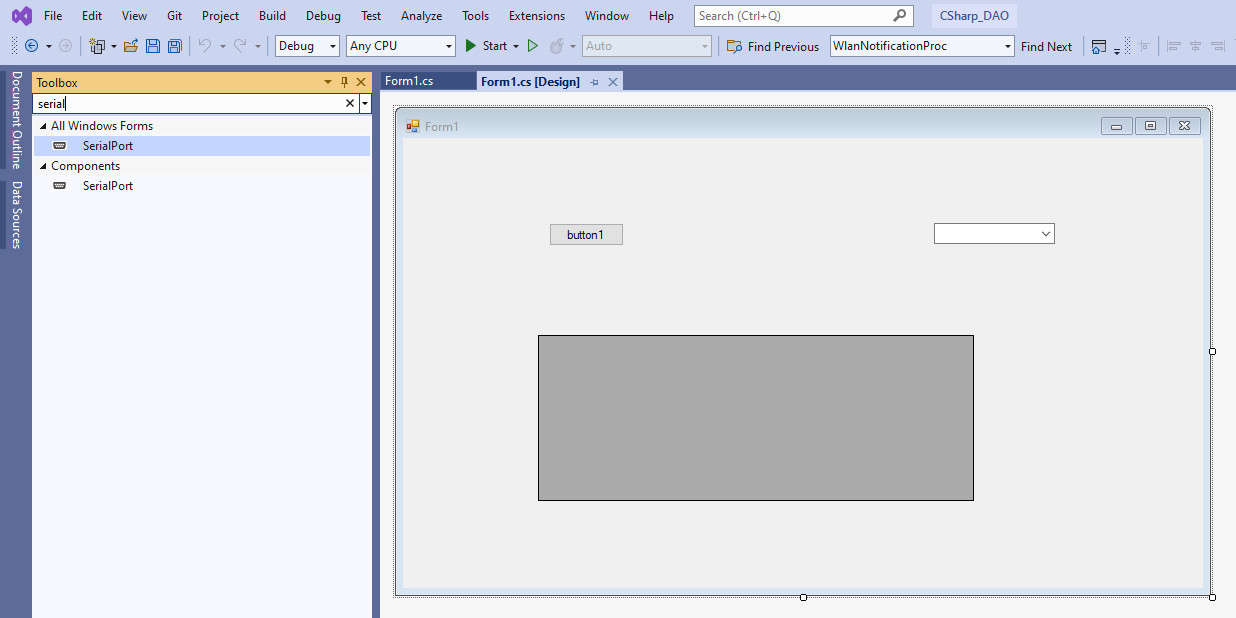

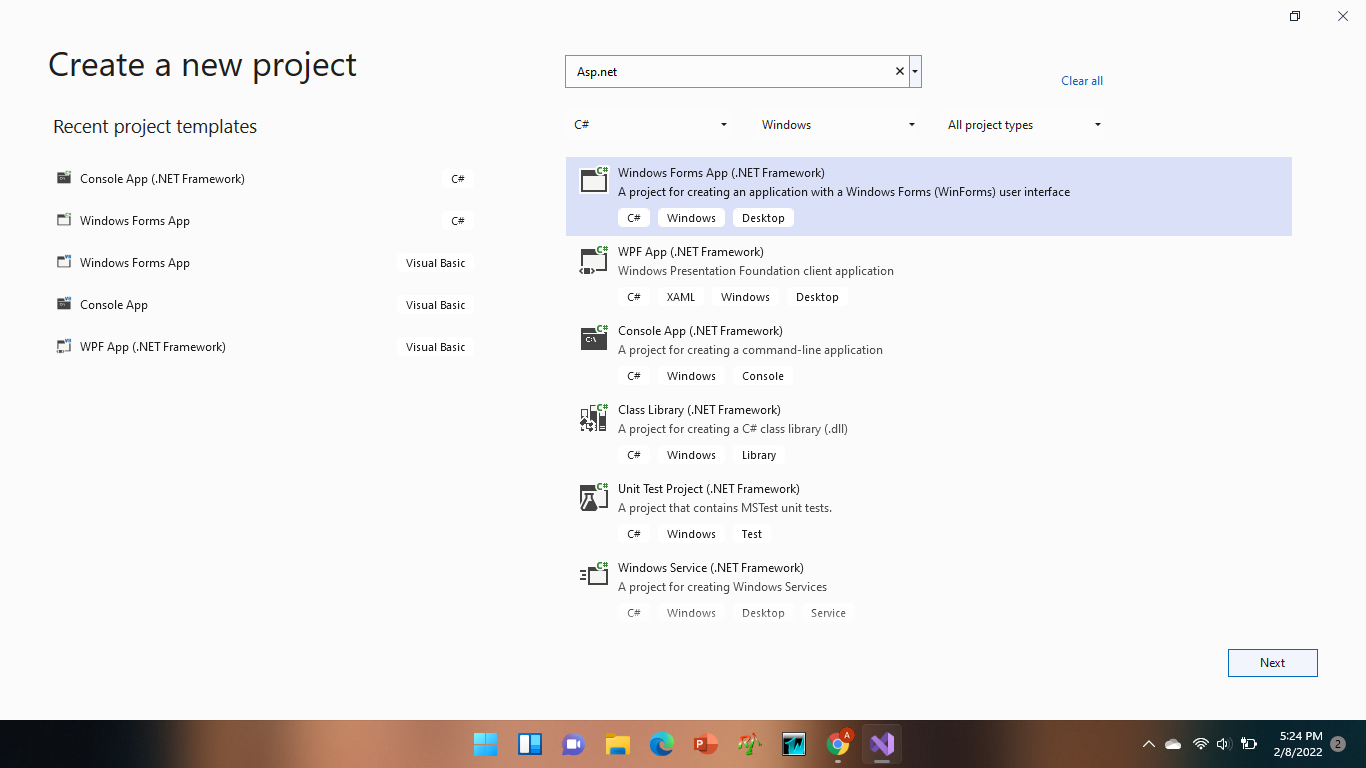

Open first your main Form in Design Mode (and in a .NET Framework project (not Net Core)) => (test in C#, but same thing in VB)

Error for Serialport option

Accepted answer

Jiachen Li-MSFT 27,496 Reputation points Microsoft Vendor

2022-02-08T03:00:07.21+00:00

Hi @Abdul Rahman ,
In the .Net Core project, there is no SerialPort in the toolbox of the design view, but you can manually import the package "System.IO.Ports".
Then you can use SerialPort Class (still not showing in the toolbox though).

Best Regards.
Jiachen Li

----------

If the answer is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
Please sign in to rate this answer.
Abdul Rahman 21 Reputation points

2022-02-08T09:41:56.387+00:00

Where can I select the Serial.IO.ports installation package according to your image? Sorry if it's a bother I'm really just learning to use it

Jiachen Li-MSFT 27,496 Reputation points Microsoft Vendor

2022-02-08T09:54:56.777+00:00

Hi @Abdul Rahman ,
Project->Manage Nuget Packages->Browse and search "ports".
And install the following package.

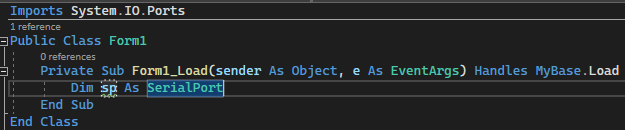

Then import it in your project.
Imports System.IO.Ports

Abdul Rahman 21 Reputation points

2022-02-10T12:52:25.887+00:00

Thanks for your feedback Jiachen Li-MSFT-9349. I've installed it, next where I can import System.IO .port?

Jiachen Li-MSFT 27,496 Reputation points Microsoft Vendor

2022-02-11T07:20:35.17+00:00

Hi @Abdul Rahman ,

You can refer to the examples SerialPort Class

Jiachen Li-MSFT 27,496 Reputation points Microsoft Vendor

2022-02-17T08:45:22.133+00:00

Hi @Abdul Rahman ,
May I know whether your issue has been solved or not? If not, please share it in here. We can work together to figure it out.

Abdul Rahman 21 Reputation points

2022-02-25T07:53:04.447+00:00

Thank you Sir

Jiachen Li-MSFT 27,496 Reputation points Microsoft Vendor

2022-02-25T08:20:04.073+00:00

Hi @Abdul Rahman ,
If this answer helped you solve the problem,please accept it as answer so that Others with the same problem can quickly find a solution.
Thank you for your cooperation.
