Graph API - Sharepoint - Getting drive item missing file fields: category and functional area.

Question

I am having some trouble getting specific file fields when pulling Sharepoint data, using the Graph API.

I'm able to successfully pull info using this Graph API endpoint: https://learn.microsoft.com/en-us/graph/api/driveitem-get?view=graph-rest-1.0&tabs=http. I can see the filename, lastModifiedBy, filesize, MIME type, etc.
But, there are some columns/fields missing from the JSON I am receiving that I cannot see how to retrieve from the documentation page.

The drive items are missing the 'Functional Area' and 'Category' columns, and I've tried appending ?$expand=fields onto the fetch URL, but that also doesn't return what I am after.

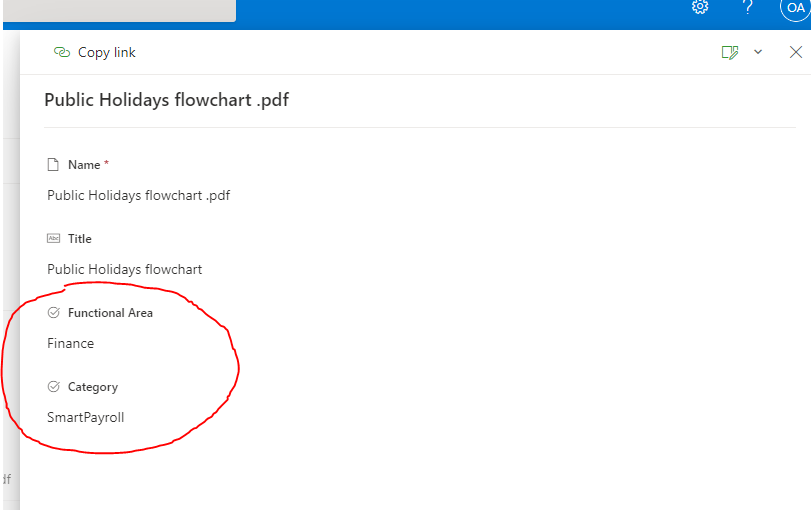

Here in this image you can see the fields I am after. I didn't set up this Sharepoint instance, so I am unsure if these are custom columns or not. But if they are, are we able to pull custom columns?

Any help would be appreciated.
Thanks.

Answer 1

Hi @LC ,

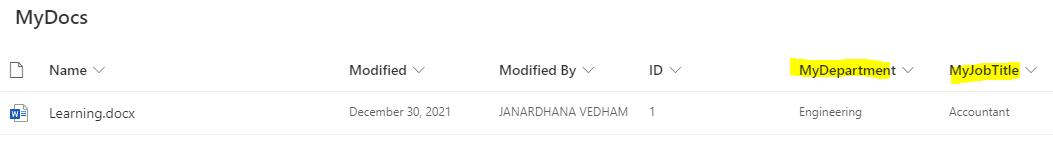

You can be able to fetch custom columns of SharePoint document libraries in multple ways. Since you are get Drive Item API , you can simply append ?expand=listItem paraemter to the query to fetch the custom columns data of a drive item or list item as mentioned below :

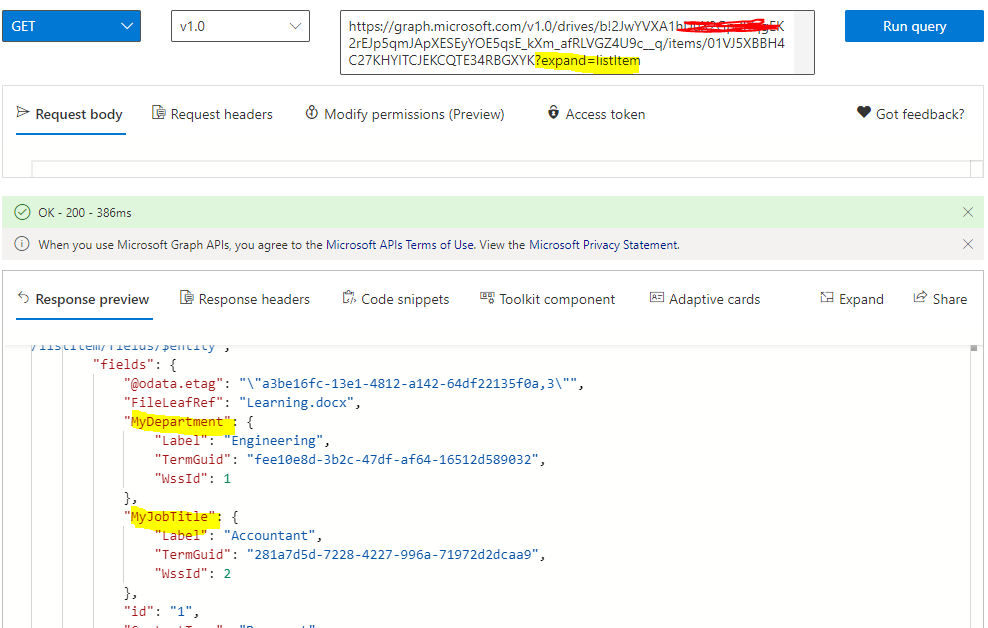

GET https://graph.microsoft.com/v1.0/drives/{drive-id}/items/{item-id}?expand=listItem

Example :

GET https://graph.microsoft.com/v1.0/sites/{site-id}/drives/{drive-id}/items/{item-id}?expand=listItem

Alternatively, you can also use the below get list item SharePoint Graph API to drive or list item details including the column columns,

GET https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/{item-id}
GET https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/{item-id}?expand=fields
GET https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/{item-id}?expand=fields(select=Column1,Column2)

Hope this helps.

If the answer is helpful, please click Accept Answer and kindly upvote it. If you have any further questions about this answer, please click Comment.

Answer 2

Hi @LC ,

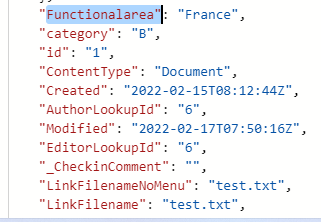

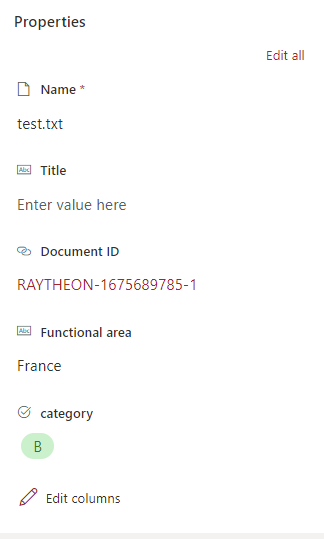

I tested the following url and get the custom column

GET /sites/{site-id}/lists/{list-id}/items/{item-id}

---

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
