Connect-AzAccount command with ServicePrincipal failing over Windows Server 2016 and Windows Server 2012 R2

Question

Hello,

We are encountering a weird issue with Connect-AzAccount (version 2.7.1) command usage with "ServicePrincipal" is failing forWindows Server 2016 and Windows Server 2012 R2 servers. There is no proxy involved. Tried with Windows Server 2019 and it works all fine for this server Os!!

This seems similar to what is described in [this issue][1], however I tried using 1.9.5 Az.Accounts as well but no luck. It always fail only** for Windows Server 2016 and Windows Server 2012 R2 machines. [1]: https://learn.microsoft.com/en-us/answers/questions/614480/connect-azaccount-using-service-principal-timesout.html

Here is the trace from my attempt:

DEBUG: 10:13:09 AM - Autosave setting from startup session: 'CurrentUser' DEBUG: 10:13:09 AM - No autosave setting detected in environment variable 'AzContextAutoSave'. DEBUG: 10:13:09 AM - Using Autosave scope 'CurrentUser' DEBUG: 10:13:09 AM - [ServicePrincipalAuthenticator] Calling ClientSecretCredential.GetTokenAsync - ApplicationId:'2a9cc9f0-884a-4fd1-a87b-4bbec753776e', TenantId:'72f988bf-86f1-41af-91ab-2d7cd011db47', Scopes:'https://management.core.windows.net//.default', AuthorityHost:'https://login.microsoftonline.com/' DEBUG: ClientSecretCredential.GetToken invoked. Scopes: [ https://management.core.windows.net//.default ] ParentRequestId: DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] MSAL MSAL.Desktop with assembly version '4.30.1.0'. CorrelationId(6a2388ee-8577-410f-8710-e7eddfddb5a7) DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] === AcquireTokenForClientParameters === SendX5C: False ForceRefresh: False DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] === Request Data === Authority Provided? - True Scopes - https://management.core.windows.net//.default Extra Query Params Keys (space separated) - ApiId - AcquireTokenForClient IsConfidentialClient - True SendX5C - False LoginHint ? False IsBrokerConfigured - False HomeAccountId - False CorrelationId - 6a2388ee-8577-410f-8710-e7eddfddb5a7 DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] === Token Acquisition (ClientCredentialRequest) started:

Authority Host: login.microsoftonline.com DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] Azure region was not configured or could not be discovered. Not using a regional authority. DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] Azure region was not configured or could not be discovered. Not using a regional authority. DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:09 - ] Fetching instance discovery from the network from host login.microsoftonline.com. DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] GET https://login.microsoftonline.com/common/discovery/instance?api-version=REDACTED&authorization_endpoint=REDACTED x-client-SKU:REDACTED x-client-Ver:REDACTED x-client-CPU:REDACTED x-client-OS:REDACTED client-request-id:REDACTED return-client-request-id:REDACTED x-app-name:REDACTED x-app-ver:REDACTED x-ms-client-request-id:REDACTED x-ms-return-client-request-id:REDACTED User-Agent:REDACTED client assembly: Azure.Identity DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] exception Azure.RequestFailedException: An error occurred while sending the request. ---> System.Net.Http.HttpRequestException: An error occurred while sending the request. ---> System.Net.WebException: The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) --- End of inner exception stack trace --- at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) --- End of inner exception stack trace --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of inner exception stack trace --- at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.ResponseBodyPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.LoggingPolicy.<ProcessAsync>d__9.MoveNext() DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] retry number 1 took 00.0s DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] GET https://login.microsoftonline.com/common/discovery/instance?api-version=REDACTED&authorization_endpoint=REDACTED x-client-SKU:REDACTED x-client-Ver:REDACTED x-client-CPU:REDACTED x-client-OS:REDACTED client-request-id:REDACTED return-client-request-id:REDACTED x-app-name:REDACTED x-app-ver:REDACTED x-ms-client-request-id:REDACTED x-ms-return-client-request-id:REDACTED User-Agent:REDACTED client assembly: Azure.Identity DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] exception Azure.RequestFailedException: An error occurred while sending the request. ---> System.Net.Http.HttpRequestException: An error occurred while sending the request. ---> System.Net.WebException: The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) --- End of inner exception stack trace --- at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) --- End of inner exception stack trace --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of inner exception stack trace --- at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.ResponseBodyPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.LoggingPolicy.<ProcessAsync>d__9.MoveNext() DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] retry number 2 took 00.0s DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] GET https://login.microsoftonline.com/common/discovery/instance?api-version=REDACTED&authorization_endpoint=REDACTED x-client-SKU:REDACTED x-client-Ver:REDACTED x-client-CPU:REDACTED x-client-OS:REDACTED client-request-id:REDACTED return-client-request-id:REDACTED x-app-name:REDACTED x-app-ver:REDACTED x-ms-client-request-id:REDACTED x-ms-return-client-request-id:REDACTED User-Agent:REDACTED client assembly: Azure.Identity DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] exception Azure.RequestFailedException: An error occurred while sending the request. ---> System.Net.Http.HttpRequestException: An error occurred while sending the request. ---> System.Net.WebException: The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) --- End of inner exception stack trace --- at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) --- End of inner exception stack trace --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of inner exception stack trace --- at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.ResponseBodyPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.LoggingPolicy.<ProcessAsync>d__9.MoveNext() DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] retry number 3 took 00.0s DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] GET https://login.microsoftonline.com/common/discovery/instance?api-version=REDACTED&authorization_endpoint=REDACTED x-client-SKU:REDACTED x-client-Ver:REDACTED x-client-CPU:REDACTED x-client-OS:REDACTED client-request-id:REDACTED return-client-request-id:REDACTED x-app-name:REDACTED x-app-ver:REDACTED x-ms-client-request-id:REDACTED x-ms-return-client-request-id:REDACTED User-Agent:REDACTED client assembly: Azure.Identity DEBUG: Request [0bc6243f-8972-4420-9050-68b1640ce5f5] exception Azure.RequestFailedException: An error occurred while sending the request. ---> System.Net.Http.HttpRequestException: An error occurred while sending the request. ---> System.Net.WebException: The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) --- End of inner exception stack trace --- at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) --- End of inner exception stack trace --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of inner exception stack trace --- at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.ResponseBodyPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.LoggingPolicy.<ProcessAsync>d__9.MoveNext() DEBUG: (False) MSAL 4.30.1.0 MSAL.Desktop Windows Server 2016 Datacenter [02/17/2022 18:13:15 - ] Exception type: System.AggregateException ---> Inner Exception Details Exception type: Azure.RequestFailedException ---> Inner Exception Details Exception type: System.Net.Http.HttpRequestException ---> Inner Exception Details Exception type: System.Net.WebException ---> Inner Exception Details Exception type: System.ComponentModel.Win32Exception

at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) === End of inner exception stack trace ===

at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) === End of inner exception stack trace ===

at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() === End of inner exception stack trace ===

at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.ResponseBodyPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.LoggingPolicy.<ProcessAsync>d__9.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.RedirectPolicy.<ProcessAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at Azure.Core.Pipeline.RetryPolicy.<ProcessAsync>d__11.MoveNext() === End of inner exception stack trace ===

at Azure.Core.Pipeline.RetryPolicy.<ProcessAsync>d__11.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpPipeline.<SendRequestAsync>d__11.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.HttpPipelineMessageHandler.<SendAsync>d__2.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Http.HttpManager.<ExecuteAsync>d__10.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Http.HttpManager.<ExecuteWithRetryAsync>d__8.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Http.HttpManager.<SendGetAsync>d__5.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.OAuth2.OAuth2Client.<ExecuteRequestAsync>d__11`1.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.OAuth2.OAuth2Client.<DiscoverAadInstanceAsync>d__9.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.Discovery.NetworkMetadataProvider.<SendInstanceDiscoveryRequestAsync>d__7.MoveNext()

--- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.Discovery.NetworkMetadataProvider.<FetchAllDiscoveryMetadataAsync>d__6.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.Discovery.NetworkMetadataProvider.<GetMetadataAsync>d__4.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.Discovery.InstanceDiscoveryManager.<FetchNetworkMetadataOrFallbackAsync>d__10.MoveNe xt() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.Discovery.InstanceDiscoveryManager.<GetMetadataEntryAsync>d__9.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Instance.AuthorityManager.<RunInstanceDiscoveryAndValidationAsync>d__9.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Internal.Requests.ClientCredentialRequest.<FetchNewAccessTokenAsync>d__3.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Internal.Requests.ClientCredentialRequest.<ExecuteAsync>d__2.MoveNext() --- End of stack trace from previous location where exception was thrown --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Microsoft.Identity.Client.Internal.Requests.RequestBase.<RunAsync>d__13.MoveNext() DEBUG: ClientSecretCredential.GetToken was unable to retrieve an access token. Scopes: [ https://management.core.windows.net//.default ] ParentRequestId: Exception: Azure.Identity.AuthenticationFailedException (0x80131500): ClientSecretCredential authentication failed: Retry failed after 4 tries. Retry settings can be adjusted in ClientOptions.Retry. ---> System.AggregateException (0x80131500): Retry failed after 4 tries. Retry settings can be adjusted in ClientOptions.Retry. ---> Azure.RequestFailedException (0x80131500): An error occurred while sending the request. ---> System.Net.Http.HttpRequestException (0x80131500): An error occurred while sending the request. ---> System.Net.WebException (0x80131509): The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception (0x80004005): The client and server cannot communicate, because they do not possess a common algorithm DEBUG: Azure.Identity.AuthenticationFailedException: ClientSecretCredential authentication failed: Retry failed after 4 tries. Retry settings can be adjusted in ClientOptions.Retry. ---> System.AggregateException: Retry failed after 4 tries. Retry settings can be adjusted in ClientOptions.Retry. ---> Azure.RequestFailedException: An error occurred while sending the request. ---> System.Net.Http.HttpRequestException: An error occurred while sending the request. ---> System.Net.WebException: The underlying connection was closed: An unexpected error occurred on a receive. ---> System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential& secureCredential) at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, X509Certificate2 selectedCert, Flags flags) at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]& thumbPrint) at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]& output) at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count) at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest) at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult) at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx) at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state) at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result) at System.Net.TlsStream.BeginWrite(Byte[] buffer, Int32 offset, Int32 size, AsyncCallback asyncCallback, Object asyncState) at System.Net.ConnectStream.WriteHeaders(Boolean async) --- End of inner exception stack trace --- at System.Net.HttpWebRequest.EndGetResponse(IAsyncResult asyncResult) at System.Net.Http.HttpClientHandler.GetResponseCallback(IAsyncResult ar) --- End of inner exception stack trace --- at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw() at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task) at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of inner exception stack trace --- at Azure.Core.Pipeline.HttpClientTransport.<ProcessAsync>d__10.MoveNext() --- End of

Answer 1

Hello @Manish Duggal ,

Thanks for reaching out.

This seems to be more on SSL/TLS communication related issue as I could see following exception repeatedly System.ComponentModel.Win32Exception: The client and server cannot communicate, because they do not possess a common algorithm which indicate require TLS version is not enabled on non-working servers.

However, windows Server 2012 R2 and Windows Server 2016, and later versions of Windows natively support TLS 1.2 for client-server communications. Hence, it would be great to verify what TLS version used for working (2019) and non-working scenario (2012 R2 / 2016)? also if you find any legacy TLS version 1.0 or 1.1 on non-working servers and not being users by any other services then try disabling them and enable TLS 1.2 to see if that fix the issue.

Here is PowerShell way to check TLS 1.2 although this article for AzureADconnect related but similar steps can be referred for verifying/enabling TLS 1.2 setting on windows servers. Hope this helps.

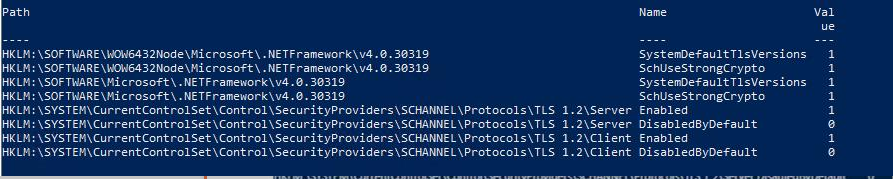

Example Output showing proper TLS1.2 configuration:

-----
Please "Accept the answer" if the information helped you. This will help us and others in the community as well.
