Azure VM connectivity issue

Question

Azure VM connectivity issue

sns 9,246

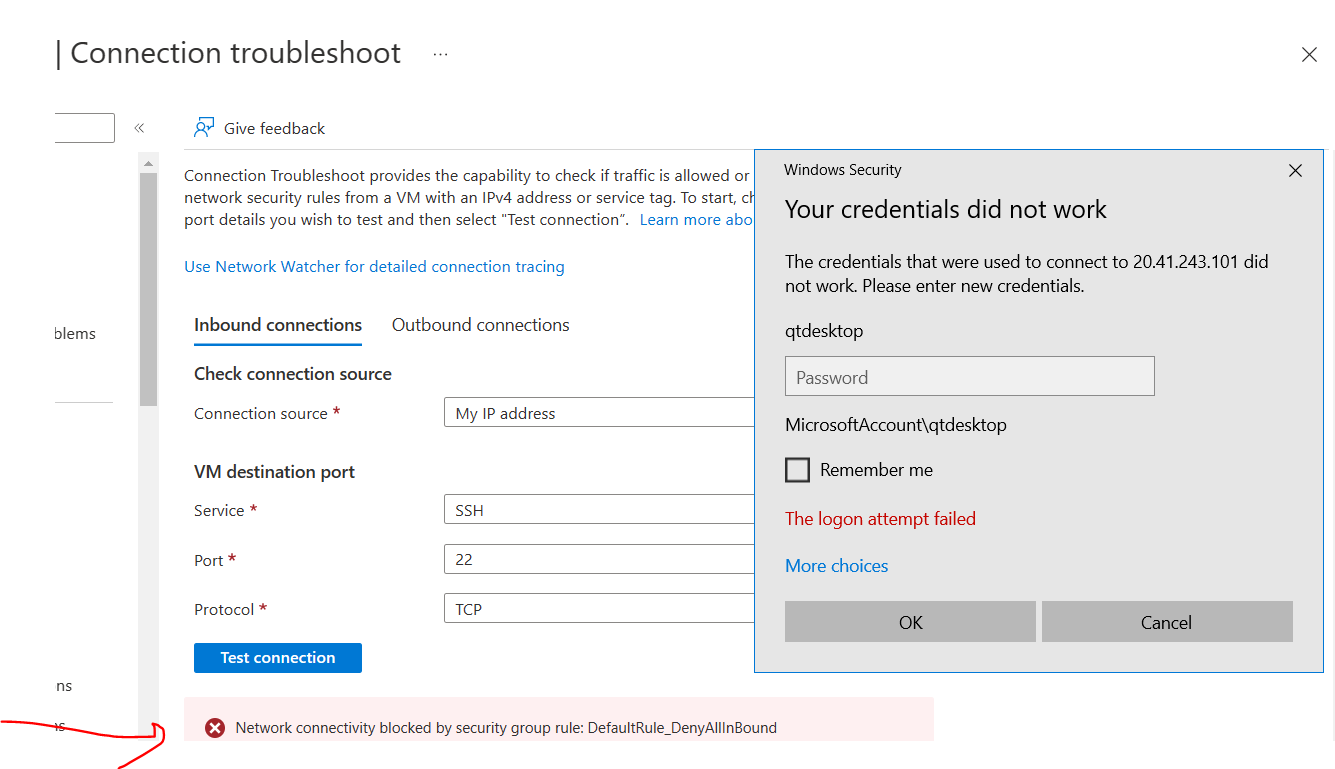

I tried to reset the password still I am not able to log in VM. I am seeing the below error while log in and also getting error below highlighted when tried to check the connectivity
I am getting error even I supplied correct credentials.

Accepted answer

0 additional answers

Your answer

Answer 1

srbhatta-MSFT 8,586 Microsoft Employee

Hello @sns ,
Thanks for posting your query on Microsoft QnA.
The network connectivity is getting blocked because you have a network security group rule in place that is denying all inbound connections. You will have to add an inbound NSG rule that allows RDP to your VM with a priority lower than that of DenyAllInBound rule. Let's say if you DenyAllInBound rule has a priority 200, your RDP inbound rule must have a priority <200.
Refer to this document : troubleshoot-rdp-nsg-problem.

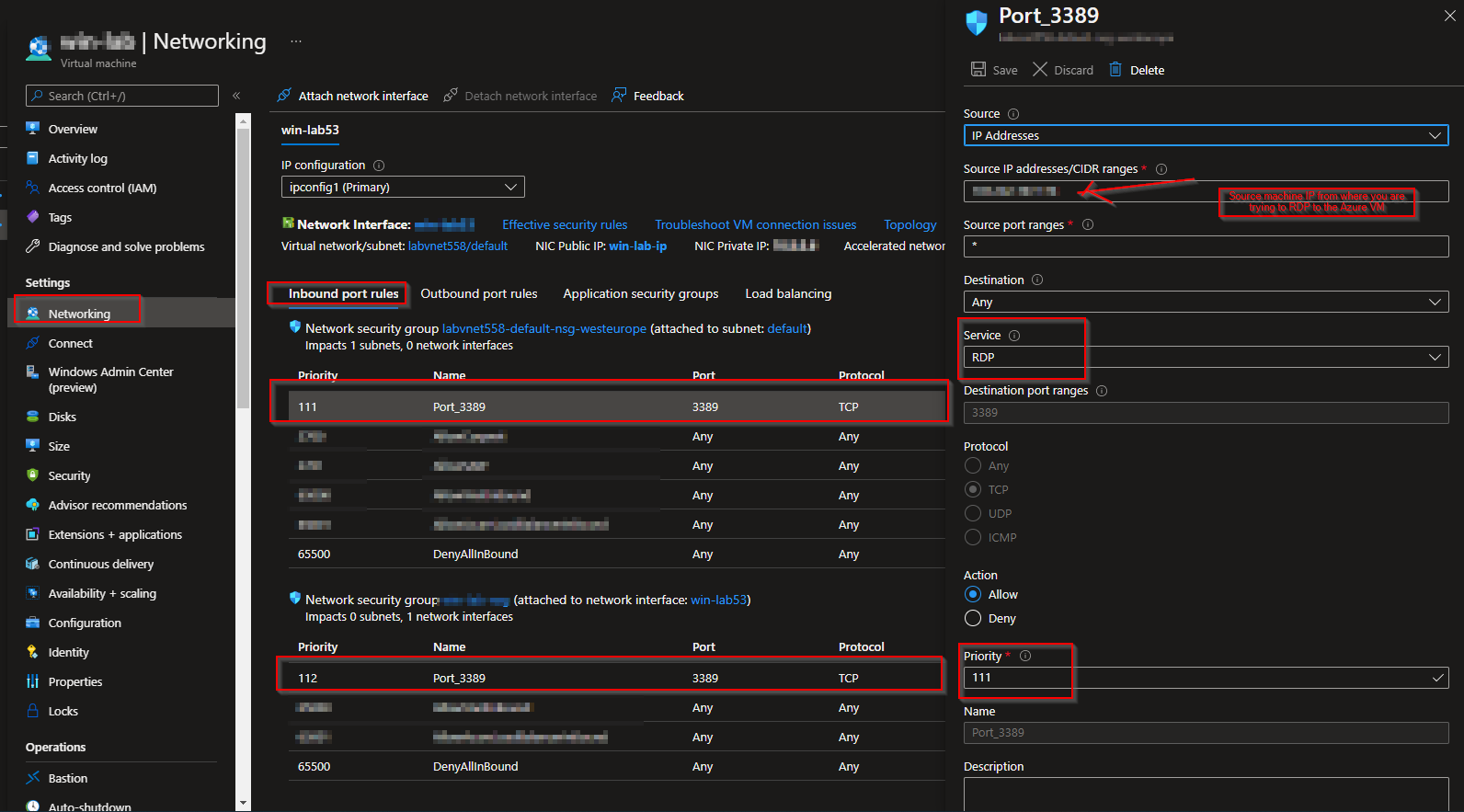

Please refer to the below image for further understanding.

------------------------------------

Please don't forget to "Accept as Answer" and "Upvote" and if you think my response was helpful.

sns 9,246 Reputation points

2022-02-18T07:08:12.02+00:00

Hi SrBhatta,

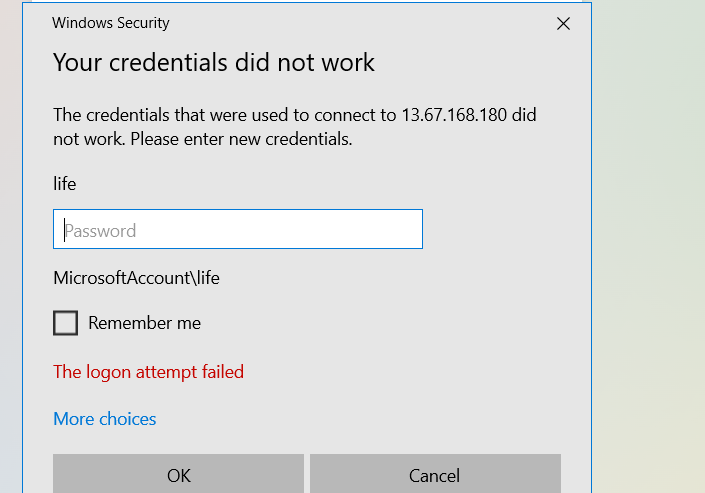

Thank you for the response, I did as you have instructed. but it is failing. PFA
srbhatta-MSFT 8,586 Reputation points Microsoft Employee

2022-02-18T07:13:48.297+00:00

Hello @sns , Can you try to login to the VM using these credentials via Serial console? This is just to check if the credentials are working or not. If not, then please try to reset password for this user account life and retry. Also in your question I see you have tried to test your connectivity to the VM using network watcher, but for SSH (port 22), whereas you are trying to RDP, which uses separate port (3389 usually if not the port has been changed to a custom port).
Could you please check the above and see if it is working?
sns 9,246 Reputation points

2022-02-18T08:28:49.987+00:00

HI Srbhatta,

I have done resetting the password and user name , but still it is giving same error.
what is serial console? can u please provide more information on this?
srbhatta-MSFT 8,586 Reputation points Microsoft Employee

2022-02-18T14:39:33.727+00:00

Hi @sns , Serial console provides the access to VM's console from the Portal. Please make sure you have EMS enabled in your VM. You will have to go to the serial console option from the VM blade. You will see a SAC prompt, where first you will have to type cmd , press Enter, then type ch -si 1, then again press enter. You will be then prompted to enter username, domain (do not enter anything, simply press enter if you are using local admin account), and password. Post this, you will be able to access the command prompt of your VM remotely. This is to check if you are successfully able to authenticate with your user account.
If at the beginning you do not get a SAC prompt on the serial console, then go to Run command on the VM blade, and hit enter on Enable EMS option and repeat the above steps.

Refer to the Use CMD or Powershell section in this document - serial-console-windows.
srbhatta-MSFT 8,586 Reputation points Microsoft Employee

2022-02-21T05:25:51.033+00:00

Hello @sns , Any update if this helped in your scenario?
sns 9,246 Reputation points

2022-02-25T05:46:33.297+00:00

HI Srbhatta,

It worked, thank you. Sorry for the delayed response.
srbhatta-MSFT 8,586 Reputation points Microsoft Employee

2022-02-25T05:53:52.113+00:00

Hello @sns , Glad that your issue is now resolved. Please do "Accept as Answer" and "Upvote" in this case so that my answer can help others looking for help on similar issue. This will benefit the community and help improve the Microsoft QnA experience. Thank you.
sns 9,246 Reputation points

2022-02-25T05:58:14.793+00:00

I am not seeing option to vote it as answer for the serial console thread
srbhatta-MSFT 8,586 Reputation points Microsoft Employee

2022-02-25T06:12:21.317+00:00

Hello @sns , since all the approaches mentioned are under a single answer (as comments), you will have to "Accept as Answer" to the primary answer, automatically all the comments under it will also get marked as green. Thanks. Please let me know if this helps.
