Outlook can't add new profile

Moatasem Taha 1

In our office we are running Exchange 2019 and Outlook 2019.

all our current Outlook profiles are working fine and ECP and OWA too.

When I try to add a new Outlook profile I get the error "Something when wrong"

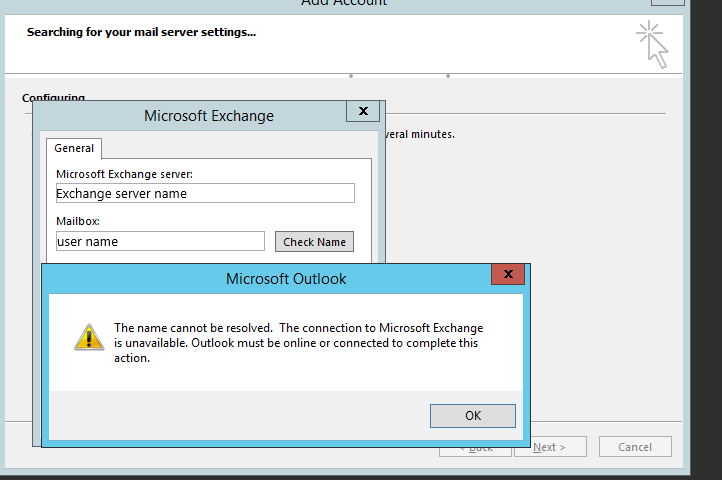

I tried with Outlook 2013 and I get the following error:

DNS is working perfectly fine.

The new user is using OWA for now, but I need to fix this issue ASAP.

Any help will be much appreciated.

Regards

Moatasem

Kael Yao 37,746 Reputation points Moderator

2022-03-16T01:52:38.883+00:00

Hi @Moatasem Taha

Is this affected device domain-joined or just in the internal network? If you configure another mailbox on it, would it also fail?

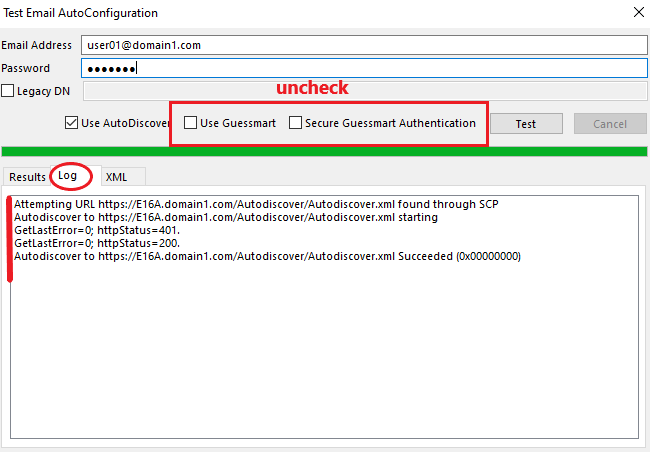

Please run Test E-mail Autoconfiguration via Outlook and post a screenshot of the results under the Logs tag.
(Don't forget to hide your personal information for security)

Since you cannot setup Exchange mailbox in Outlook, you may either:
1:create a profile without a mailbox
2. setup another mailbox(for example, outlook.com, gmail) for test

2 answers

Moatasem Taha 1 Reputation point

2022-03-21T04:48:08.67+00:00

Hi @Kael Yao

Thank you for getting back to me.

Her is the log

I can resolve autodiscover.domain.com internally and externally fine.. DNs is working as expected.

Going to https://autodiscover.domain.com/autodiscover/autodiscover.xml I get the following error

What do you think?
Please sign in to rate this answer.
Kael Yao 37,746 Reputation points Moderator

2022-03-21T08:04:23.727+00:00

Hi @Moatasem Taha

Kindly note that this is a public forum, I have covered the domain name in the screenshots.
Please don't forget to hide these information for security.
Thanks for your understanding.

According to the result, the cause of this issue may be autodiscover is not working correctly.

If you access this url (https://localhost/autodiscover/autodiscover.xml) via browser on Exchange server, would it show more detailed information?
Sign in to comment

Use comments to ask for clarification, additional information, or improvements to the question.
Moatasem Taha 1 Reputation point

2022-03-21T09:35:29.87+00:00

Thanks for your help..

Here is the error I get on the Exchange server
Please sign in to rate this answer.
Kael Yao 37,746 Reputation points Moderator

2022-03-23T08:53:34.373+00:00

Hi,
From the error message, I suppose the cause may be the web.config file corrupted under the path: C:\Program Files\Microsoft\Exchange Server\V15\FrontEnd\HttpProxy\autodiscover.

Here is a similar thread for your reference: Autodiscover not working after exchange server 2019 cumulative update 11

You may copy and replace the web.config file from the Exchange 2019 ISO (the path should be like E:\Setup\ServerRoles\FrontEnd\HttpProxy\autodiscover) and modify this part:
<linkedConfiguration href="file://%ExchangeInstallDir%FrontEnd\HttpProxy\SharedWebConfig.config"/>
to be the absolute path on your Exchange server.
Example:
<linkedConfiguration href="file://C:\Program Files\Microsoft\Exchange Server\V15\FrontEnd\HttpProxy\SharedWebConfig.config"/>

Then restart IIS and see if it can help with this issue.

Kael Yao 37,746 Reputation points Moderator

2022-03-28T07:39:23.393+00:00

Hi @Moatasem Taha

I am writing here to confirm with you how thing going now?
Did the issue get resolved?
