Outlook sees the old certificate.

Андрей Михалевский 3,451 Reputation points
2022-04-14T07:50:15.91+00:00

Hi. Outlook 2019. Exchange 2019 on-premise. 1 Mailbox server.

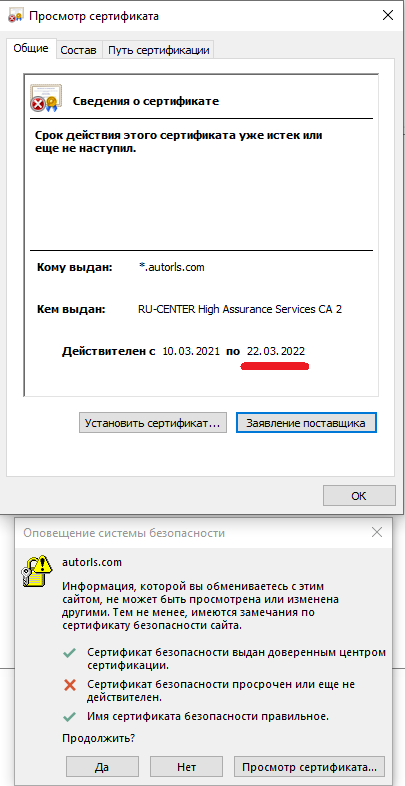

I updated the certificate and Outlook still sees the old one.


What is the problem? OWA sees the new certificate. https://mail.autorls.com/owa

[PS] C:\scripts>Get-ExchangeCertificate | fl


AccessRules        : {System.Security.AccessControl.CryptoKeyAccessRule, System.Security.AccessControl.CryptoKeyAccessRule, System.Security.AccessControl.CryptoKeyAccessRule, System.Security.AccessContr
                     ol.CryptoKeyAccessRule}
CertificateDomains : {*.autorls.com, autorls.com}
HasPrivateKey      : True
IsSelfSigned       : False
Issuer             : CN=Sectigo RSA Domain Validation Secure Server CA, O=Sectigo Limited, L=Salford, S=Greater Manchester, C=GB
NotAfter           : 23.03.2023 2:59:59
NotBefore          : 22.03.2022 3:00:00
PublicKeySize      : 2048
RootCAType         : ThirdParty
SerialNumber       : 2D611F40B3D4CEB1DD3464298CA9468B
Services           : IIS, SMTP
Status             : Valid
Subject            : CN=*.autorls.com
Thumbprint         : 350E8FCF60F20E073FFD85C171E874EA21D43082

[PS] C:\scripts>.\GetExchangeURLs.ps1 -Server dtm-autorls-ex

Outlook Anywhere
 - Internal: mail.autorls.com
 - External: mail.autorls.com


Outlook Web App
 - Internal: https://mail.autorls.com/owa
 - External: https://mail.autorls.com/owa


Exchange Control Panel
 - Internal: https://mail.autorls.com/ecp
 - External: https://mail.autorls.com/ecp


Offline Address Book
 - Internal: https://mail.autorls.com/OAB
 - External: https://mail.autorls.com/OAB


Exchange Web Services
 - Internal: https://mail.autorls.com/EWS/Exchange.asmx
 - External: https://mail.autorls.com/EWS/Exchange.asmx


MAPI
 - Internal: https://mail.autorls.com/mapi
 - External: https://mail.autorls.com/mapi


ActiveSync
 - Internal: https://mail.autorls.com/Microsoft-Server-ActiveSync
 - External: https://mail.autorls.com/Microsoft-Server-ActiveSync

Autodiscover
 - Internal SCP: https://mail.autorls.com/Autodiscover/Autodiscover.xml

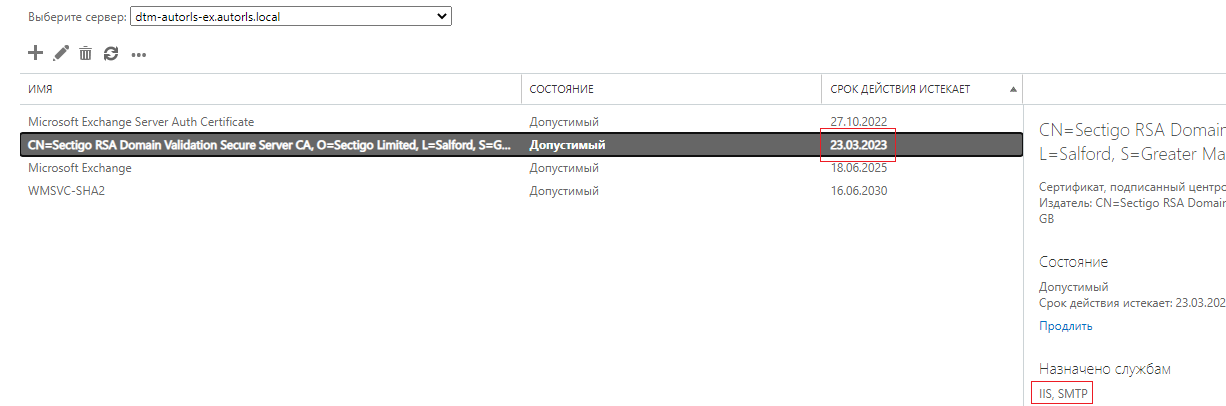

There is only a new certificate in the system:


Default Web Site also has a new certificate. Exchange Back End by Default, Microsot Exchange

  • I tried connecting from different computers. Re-created the profile. It doesn't work. I don't understand why Outlook sees the old certificate. It's not there anywhere. What could be the problem?
Exchange | Exchange Server | Management
0 comments No comments
{count} votes

Accepted answer
  1. Andy David - MVP 158K Reputation points MVP Volunteer Moderator
    2022-04-14T12:13:16.53+00:00

    HI, can you renew the certificate on the root domain?

    If not you can bypass it with a registry setting
    https://support.microsoft.com/en-us/topic/outlook-2016-and-outlook-2013-hang-when-a-user-tries-to-create-a-profile-b808efa8-ecba-ed1a-1f8e-e3816ae35117

    Outlook 2016: Exclude the root domain from Autodiscover lookup in Outlook
    Important Follow the steps in this section carefully. Serious problems might occur if you modify the registry incorrectly. Before you modify it, back up the registry for restoration in case problems occur.

    To prevent Outlook 2016 from using the root domain of the user's SMTP address to locate the Autodiscover service, set the ExcludeHttpsRootDomain registry subkey to a value of 1. To do this, follow these steps:

    Open Registry Editor.

    Locate and then click the following registry subkey:

    HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\Autodiscover

    On the Edit menu, point to New, and then click DWORD Value.

    Type ExcludeHttpsRootDomain, and then press Enter.

    On the Edit menu, click Modify, type 1 in the Value data box, and then click OK.

    Exit Registry Editor.

    Or with a Group Policy:

    https://learn.microsoft.com/en-us/outlook/troubleshoot/profiles-and-accounts/how-to-control-autodiscover-via-group-policy

    1 person found this answer helpful.
