How to set private data in BLE scan response package in UWP application?

Question

How to set private data in BLE scan response package in UWP application?

coder 26

As the images shows, there is BLE scan response package, PC complete local name("N80****95") is set in BLE scan response package automatically, but we want to know how to set private data in BLE scan response package in UWP application? or MS supports this or not?

BTW: we checked the BluetoothLEAdvertisement and BluetoothLEAdvertisementPublisher UWP API, there is no entry to set private data in BLE scan response package.
.

Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T02:54:10.857+00:00

What's the private data you mentioned above? BluetoothLEAdvertisement also contains DataSections property that use to store specific type data, does it meet your requirement?
coder 26 Reputation points

2022-04-22T03:12:16.763+00:00

As you know, the length of advertisement data is 31 bytes in max, if you want to advertise more data, we need set private data in scan response package, then scanner can get more 31 bytes advertisement data.

After I test, Manufacture data and data sections is 31 bytes too in max, it doesn't need meet my requirement, so we need set scan response.

Thank you your advice, I am really appreciated to receive your feedback.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T03:14:41.583+00:00

What about DataSections property that you can store specific type data?
coder 26 Reputation points

2022-04-22T03:29:31.877+00:00

Dear Nico Zhu

I set datatype as 0x0B, tried other datatype, the advertisement all failed, because the data is all in advertisement package,

we need scan response package to set private data.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T05:06:18.59+00:00

I think there is not such private data you mentioned above, you could try to publish encryption data to replace.
coder 26 Reputation points

2022-04-22T06:04:04.87+00:00

Dear NicoZhu

Please tell me the method to publish encryption data, thank you.

And another things, if the advertisement data size exceeds 31 bytes, how we handle this?

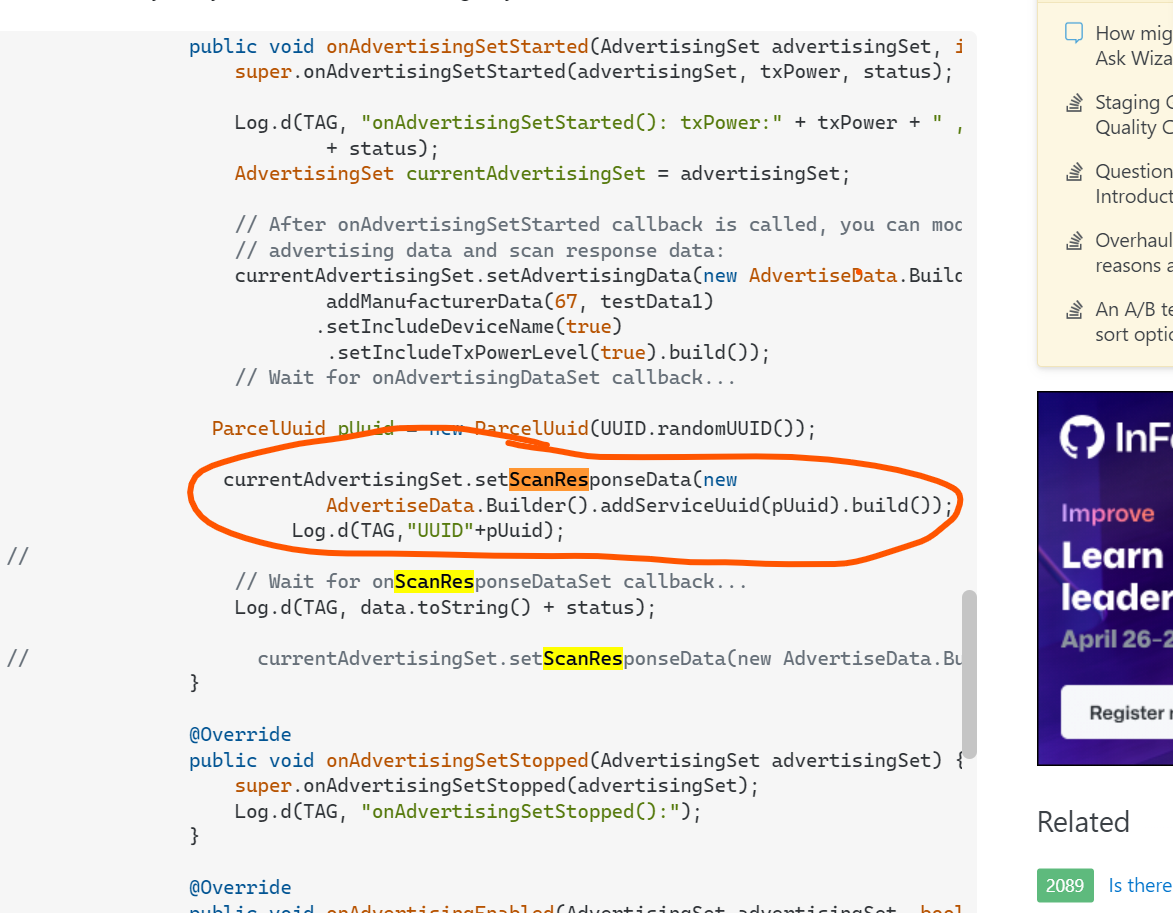

Or like android, there is API to set scan response data s(etScanResponseData)
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T06:17:07.65+00:00

I mean you could encrypt data before insert into DataSections, such as use base64 encode. as you know ble is low energy device, so it has limit for advertisement data size, you could publish a key value, and use this key to request value content in client with tcp or other way.
coder 26 Reputation points

2022-04-22T06:27:06.083+00:00

OK, this is a way. Now we concern that MSFT supports scan response or not?
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T07:04:41.693+00:00

Sure, UWP support scan response, please refer to this document ScanResponse enum.
coder 26 Reputation points

2022-04-22T08:04:16.083+00:00

Yes, Watcher can detect ScanResponse package, now we want to know that UWP can set private data in scan response or not like Android platform.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T08:10:17.497+00:00

I have to say it has no such method for writing scan response data directly, you need refer ADVERTISING AND SCAN RESPONSE DATA FORMAT to make scan response data manually. And this jayzuo's case link could help.
coder 26 Reputation points

2022-04-22T09:49:41.81+00:00

OK, you mean we need send multiple advertisement to emulate the scan response package.
coder 26 Reputation points

2022-04-22T10:04:44.963+00:00

Can you give WeChat number? Let us communicate with WeChat later.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-25T01:47:57.963+00:00

Sorry guys, we have policy that does not allow us connect the customer outside of forum!
Windy-Cao 1 Reputation point

2022-08-01T10:53:40.337+00:00

I'm wondering, can you please tell me how to set private data into Advertisement Response Data, can you please provide some code examples? thanks!
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-08-04T03:23:42.673+00:00

Scan response data are not directly controllable from the App. If the App wants more space, they can consider enabled extended advertisement (only available on systems that have radios that support this on both sending and receiving sides). They can use BluetoothLEAdvertisementPublisher.UseExtendedAdvertisement Property (Windows.Devices.Bluetooth.Advertisement) - Windows UWP applications | Microsoft Learn

1 answer

Your answer

Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T02:54:10.857+00:00

What's the private data you mentioned above? BluetoothLEAdvertisement also contains DataSections property that use to store specific type data, does it meet your requirement?
coder 26 Reputation points

2022-04-22T03:12:16.763+00:00

As you know, the length of advertisement data is 31 bytes in max, if you want to advertise more data, we need set private data in scan response package, then scanner can get more 31 bytes advertisement data.

After I test, Manufacture data and data sections is 31 bytes too in max, it doesn't need meet my requirement, so we need set scan response.

Thank you your advice, I am really appreciated to receive your feedback.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T03:14:41.583+00:00

What about DataSections property that you can store specific type data?
coder 26 Reputation points

2022-04-22T03:29:31.877+00:00

Dear Nico Zhu

I set datatype as 0x0B, tried other datatype, the advertisement all failed, because the data is all in advertisement package,

we need scan response package to set private data.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T05:06:18.59+00:00

I think there is not such private data you mentioned above, you could try to publish encryption data to replace.
coder 26 Reputation points

2022-04-22T06:04:04.87+00:00

Dear NicoZhu

Please tell me the method to publish encryption data, thank you.

And another things, if the advertisement data size exceeds 31 bytes, how we handle this?

Or like android, there is API to set scan response data s(etScanResponseData)
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T06:17:07.65+00:00

I mean you could encrypt data before insert into DataSections, such as use base64 encode. as you know ble is low energy device, so it has limit for advertisement data size, you could publish a key value, and use this key to request value content in client with tcp or other way.
coder 26 Reputation points

2022-04-22T06:27:06.083+00:00

OK, this is a way. Now we concern that MSFT supports scan response or not?
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T07:04:41.693+00:00

Sure, UWP support scan response, please refer to this document ScanResponse enum.
coder 26 Reputation points

2022-04-22T08:04:16.083+00:00

Yes, Watcher can detect ScanResponse package, now we want to know that UWP can set private data in scan response or not like Android platform.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-22T08:10:17.497+00:00

I have to say it has no such method for writing scan response data directly, you need refer ADVERTISING AND SCAN RESPONSE DATA FORMAT to make scan response data manually. And this jayzuo's case link could help.
coder 26 Reputation points

2022-04-22T09:49:41.81+00:00

OK, you mean we need send multiple advertisement to emulate the scan response package.
coder 26 Reputation points

2022-04-22T10:04:44.963+00:00

Can you give WeChat number? Let us communicate with WeChat later.
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-04-25T01:47:57.963+00:00

Sorry guys, we have policy that does not allow us connect the customer outside of forum!
Windy-Cao 1 Reputation point

2022-08-01T10:53:40.337+00:00

I'm wondering, can you please tell me how to set private data into Advertisement Response Data, can you please provide some code examples? thanks!
Nico Zhu (Shanghai Wicresoft Co,.Ltd.) 12,866 Reputation points

2022-08-04T03:23:42.673+00:00

Scan response data are not directly controllable from the App. If the App wants more space, they can consider enabled extended advertisement (only available on systems that have radios that support this on both sending and receiving sides). They can use BluetoothLEAdvertisementPublisher.UseExtendedAdvertisement Property (Windows.Devices.Bluetooth.Advertisement) - Windows UWP applications | Microsoft Learn

Answer 1

Lowell Liu 21

Hi @Nico Zhu (Shanghai Wicresoft Co,.Ltd.) & @coder , I really wonder to know Is there any solution for this case at last?
