Drag and Drop XML file to Treeview?

Question

If I drag a xml file and drop it on the treeview, can a xml file be displayed? like this
Thank you !

Answer 1

@LooBi , Welcome to Microsoft Q&A, you could use DragOver event and DragDrop event to show the xml in the treeview when you drop the xml file to the treeview control.

Here is a code example you could refer to.

 public Form1()
    {
        InitializeComponent();
        treeView1.AllowDrop = true;
    }

    private void treeView1_DragDrop(object sender, DragEventArgs e)
    {
        string filePath=string.Empty;
        if (e.Data.GetDataPresent(DataFormats.FileDrop))
        {
            string[] files = (string[])e.Data.GetData(DataFormats.FileDrop);
            filePath = files[0];
        }
        XmlDocument xDoc = new XmlDocument();
        xDoc.Load(filePath);
        treeView1.Nodes.Clear();
        treeView1.Nodes.Add(new TreeNode(xDoc.DocumentElement.Name));
        TreeNode tNode = new TreeNode();
        tNode = (TreeNode)treeView1.Nodes[0];
        addTreeNode(xDoc.DocumentElement, tNode);
        treeView1.ExpandAll();

    }


    private void addTreeNode(XmlNode xmlNode, TreeNode treeNode)
    {
        XmlNode xNode;
        TreeNode tNode;
        XmlNodeList xNodeList;
        if (xmlNode.HasChildNodes)
        {
            xNodeList = xmlNode.ChildNodes;
            for (int x = 0; x <= xNodeList.Count - 1; x++)
            {
                xNode = xmlNode.ChildNodes[x];
                string nodetext = xNode.Name + ": ";
                Console.WriteLine(nodetext);
                if (!nodetext.Contains("text"))
                {
                    if (xNode.Attributes.Count > 0)
                    {
                        for (int i = 0; i < xNode.Attributes.Count; i++)
                        {
                            nodetext += xNode.Attributes[i].Name + " - " + xNode.Attributes[i].Value;
                        }
                    }
                }



                treeNode.Nodes.Add(new TreeNode(nodetext));
                tNode = treeNode.Nodes[x];
                addTreeNode(xNode, tNode);
            }
        }
        else
        {
            string nodetext = xmlNode.Name + ": ";
            Console.WriteLine(nodetext);
            if (!nodetext.Contains("text"))
            {
                if (xmlNode.Attributes.Count > 0)
                {
                    for (int i = 0; i < xmlNode.Attributes.Count; i++)
                    {
                        nodetext += xmlNode.Attributes[i].Name + " - " + xmlNode.Attributes[i].Value;
                    }
                }
            }
            else
            {
                nodetext = xmlNode.InnerText;
            }
            treeNode.Text = nodetext;
        }

    }
    private void treeView1_DragOver(object sender, DragEventArgs e)
    {
        if (e.Data.GetDataPresent(DataFormats.FileDrop))
            e.Effect = DragDropEffects.Link;
        else
            e.Effect = DragDropEffects.None;
    }

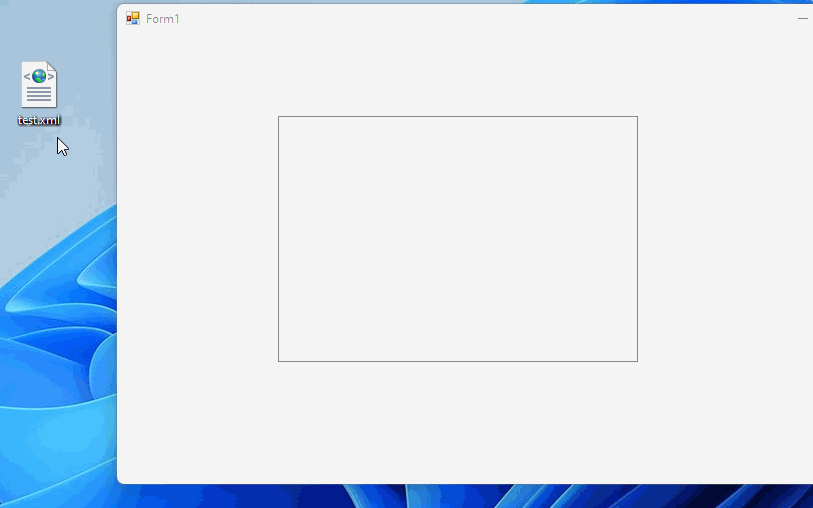

Result:

Best Regards,
Jack

---
