How to use a SSIS parameter inside of an Execute Operation?

Question

I have an SSIS package SSIS with a parameter параметром $[Project::MyParam].
Inside the SSIS I have a component of Execute Process Task type. The component has a row Arguments; this is where I wany to put a value from $[Project::MyParam].
How should I do it?

Answer 1

I'm assuming here that your parameter is probably not a string and you're trying to put it directly into the Arguments value of the Process tab. That won't work.

Go to the Expressions tab. Then select the Arguments property. For the value use this (DT_WSTR, 100) @[$Package::MyParam] The argument must be Unicode string so this converts your parameter to a string and passes it as an argument. You can use the Evaluate Expression to confirm it is correct. Note that I tested this with a package-level parameter. If you're using a different scoped variable then it'll be different. The expression editor shows you all the things you have in scope so you can drag and drop the exact parameter you want instead of having to figure it out on your own.

Answer 2

Hi @Victor Sotnikov ,

You may use Property Expressions to set the parameter inside Execute Process Task.

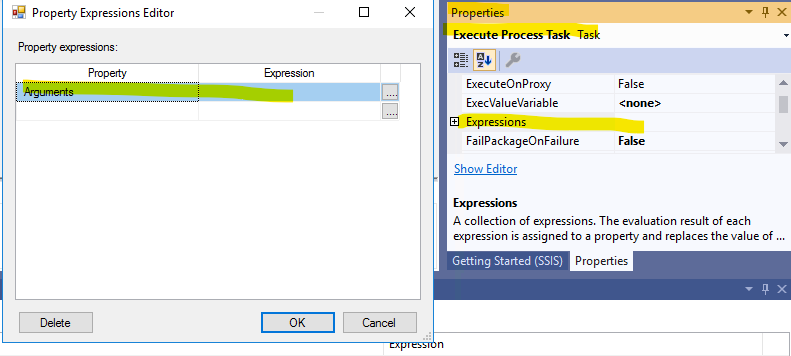

1.Open the Data Flow Task properties window.
2.Click on the "..." beside the "Expressions". That will open the Property Expressions Editor.
3.For the Property, select the Arguments
4.For the Expression, click the "...", this will open the Expression Builder window in which you can expand the parameters node and drag and drop the parameter you want.

use-property-expressions-in-packages

Regards，

Zoe

---
