ICollectionView Issue

Question

I have two ICollectionViews bound to two xaml ListBoxes

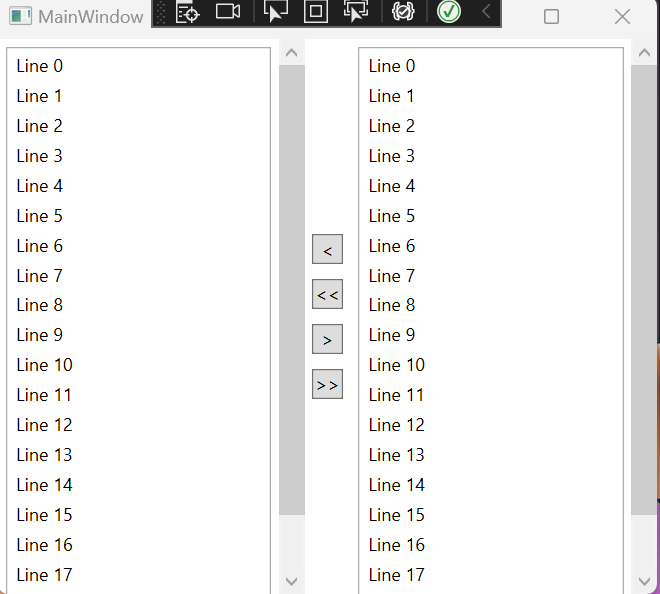

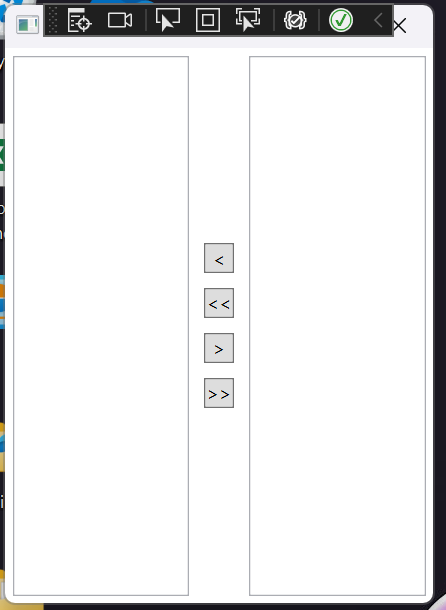

If I remove the Filter assignment, I get image 1 (to be expected, but leaving them in gives nothing in the ListBox, I would expect the left one to be populated as all data has Selected = false;

Am I missing something?

using System.Collections.Generic;
using System.ComponentModel;
using System.Windows.Data;
using Microsoft.Toolkit.Mvvm.ComponentModel;
// ReSharper disable MemberCanBePrivate.Global

namespace UserControls.DualListUserControls;

public abstract class AbstractDualListViewModel<T> : ObservableObject where T : IDisplayString
{
    protected AbstractDualListViewModel(IEnumerable<T> sourceList)
    {
        Source = CollectionViewSource.GetDefaultView(sourceList);
        Source.Filter += FalseFilter;
        Source.Refresh();
        Destination = CollectionViewSource.GetDefaultView(sourceList);
        Source.Filter += TrueFilter;
        Destination.Refresh();
    }

    public ICollectionView Destination { get; set; }

    public ICollectionView Source { get; set; }

    private bool TrueFilter(object obj)
    {
        var ids = (T) obj;
        return ids.Selected;
    }

    private bool FalseFilter(object obj)
    {
        var ids = (T) obj;
        return !ids.Selected;
    }
}

Answer 1

If you want to filter by Selected, bind the ICollectionView of Selected=false data to the ListBox on the left, and bind the ICollectionView of Selected=true data to the ListBox on the right, you could try to use the following method.
UserControl1.xaml:

<Grid>
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="*" />
        <ColumnDefinition Width="Auto" />
        <ColumnDefinition Width="*" />
    </Grid.ColumnDefinitions>
    <ScrollViewer Grid.Column="0" VerticalScrollBarVisibility="Auto">
        <ListBox   ItemsSource="{Binding Source}">
            <ListBox.ItemTemplate>
                <DataTemplate>
                    <CheckBox  IsChecked="{Binding Selected, Mode=TwoWay}"
                Content="{Binding DisplayString}"/>
                </DataTemplate>
            </ListBox.ItemTemplate>
        </ListBox>
    </ScrollViewer>
    <StackPanel Grid.Column="1" VerticalAlignment="Center">
        <Button Content="&lt;" />
        <Button Content="&lt;&lt;"  />
        <Button Content="&gt;" />
        <Button Content="&gt;&gt;"  />
    </StackPanel>
    <ScrollViewer Grid.Column="2" VerticalScrollBarVisibility="Auto">
        <ListBox    ItemsSource="{Binding Destination}"  >
            <ListBox.ItemTemplate>
                <DataTemplate>
                    <CheckBox  IsChecked="{Binding Selected, Mode=TwoWay}"
                Content="{Binding DisplayString}"/>
                </DataTemplate>
            </ListBox.ItemTemplate>
        </ListBox>
    </ScrollViewer>

</Grid>

UserControl1.xaml.cs:

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Windows.Controls;
using System.Windows.Data;

namespace UserControl1
{
  public partial class UserControl1 : UserControl
  {
    SampleDualListViewModel vm;
    public UserControl1()
    {
      InitializeComponent();
      vm=new SampleDualListViewModel();
      this.DataContext=vm;

    }
  }
  public class SampleDualListViewModel
  {
    SampleData sampleData;
    public ICollectionView Destination { get; set; }
    public ICollectionView Source { get; set; }
    public CollectionViewSource CvsSelected{ get;set;}
    public CollectionViewSource CvsNotSelected{ get;set;}
    private ObservableCollection<SampleData> data;
    public ObservableCollection<SampleData> Data
    {
      get { return data; }
      set
      {
        data = value;
      }
    }
    public IEnumerable<SampleData> Items { get { return data; } }
    public SampleDualListViewModel()
    {
      data = new ObservableCollection<SampleData>();
      for (int i = 0; i< 20; i++)
        {
          sampleData = new SampleData(){ DisplayString= $"Line {i}", Selected= i % 2 == 0 };
          data.Add(sampleData);
        }
      CvsSelected = new CollectionViewSource();
      CvsSelected.Source=Data;
      CvsSelected.Filter += (s, e) =>
      {
        SampleData sd=e.Item as SampleData;
        e.Accepted = sd.Selected;
      };
      Destination = CvsSelected.View;
      Destination.Refresh();

      CvsNotSelected = new CollectionViewSource();
      CvsNotSelected.Source = Data;
      CvsNotSelected.Filter += (s, e) =>
      {
        SampleData sd = e.Item as SampleData;
        e.Accepted = !sd.Selected;
      };
      Source = CvsNotSelected.View;
      Source.Refresh();
    }

  }

    public class SampleData : INotifyPropertyChanged
  {
    public SampleData() { }
    public SampleData(string s)
    {
      DisplayString = s;
    }
    private string displayString;
    public string DisplayString
    {
      get { return displayString; }
      set
      {
        displayString = value;
        OnPropertyChanged("DisplayString");
      }
    }
    private bool selected;
    public bool Selected
    {
      get { return selected; }
      set
      {
        selected = value;
        OnPropertyChanged("Selected");
      }
    }
    public event PropertyChangedEventHandler PropertyChanged;
    protected void OnPropertyChanged([CallerMemberName] string name = null)
    {
      PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(name));
    }
  }
}

MainWindow.xaml:(Test)

 <Window x:Class="Test.MainWindow"
            xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:local="clr-namespace:Test"
            xmlns:dualListUserControls="clr-namespace:UserControls.DualListUserControls;assembly=UserControls"
            xmlns:uc="clr-namespace:UserControl1;assembly=UserControl1"
            mc:Ignorable="d"
            Title="MainWindow" Height="407" Width="300">

        <StackPanel >
            <uc:UserControl1  Height="300" />
        </StackPanel>
    </Window>

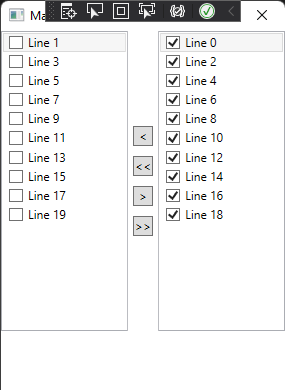

The result:

---

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

s!AoEHbi5A2zZel_gSzzIMIXfzLj_C7A

Here is a link to the whole solution, UserControl library and test project:
