Custom Print driver error troubleshooting invalid handle and module not found

Question

This is our INF File

[Version]
Signature="$Windows NT$"
LayoutFile=ntprint.inf
ClassGUID={4D36E979-E325-11CE-BFC1-08002BE10318}
Class=Printer
Provider=%PF%
DriverVer = 05/13/2022,9.30.28.734
catalogfile = INFOPRINT.cat

 ; Manufacturer Section
 ;
 ;This section lists all of the manufacturers
 ; that we will display in the Dialog box


 ;
 ; Model sections.
 ;
 ; Each section here corresponds with an entry listed in the
 ; [Manufacturer] section, above. The models will be displayed in the order
 ; that they appear in the INF file.
 ;

 ;[TRUPRO]
; "INFO-PRINT" = DRV_INSTALL

; [TRUPRO.NTx86]
 ;"INFO-PRINT" = DRV_INSTALL

; [TRUPRO.NTamd64]
 ;"INFO-PRINT" = DRV_INSTALL

 ;[TRUPRO.NTia64]
; "INFO-PRINT" = DRV_INSTALL



 ;
 ; Installer Sections
 ;
 ; These sections control file installation, and reference all files that
 ; need to be copied. The section name will be assumed to be the driver
 ; file, unless there is an explicit DriverFile section listed.
 ;

 [DefaultInstall.NTamd64]
 CopyFiles=@PFIP.GPD
 CopyFiles=@PFIP.INI
 CopyFiles=PFPRINTPATh
 DataFile=PFIP.GPD
 DataSection=UNIDRV_DATA



 [DefaultInstall.NTx86]
 CopyFiles=@PFIP.GPD
 CopyFiles=@PFIP.INI
 CopyFiles=PFPRINTPATh
 DataFile=PFIP.GPD
 DataSection=UNIDRV_DATA



 ; Copy Sections
 ;
 ; Lists of files that are actually copied. These sections are referenced
 ; from the installer sections, above. Only create a section if it contains
 ; two or more files (if we only copy a single file, identify it in the
 ; installer section, using the @filename notation) or if it's a color
 ; profile (since the DestinationDirs can only handle sections, and not
 ; individual files).
 ;

 [PFPRINTPATh]
 PFPRINT.DLL


 ;
 ; Data Sections
 ;

 ; These sections contain data that is shared between devices.
 ;



 ;
 ;  Location of source files not in Layout.inf.
 ;

 [SourceDisksNames]
1 = "%CWIN%"


[SourceDisksFiles.x86]
PFPRINT.dll    = 1,,x86

[SourceDisksFiles.amd64]
PFPRINT.dll    = 1,,x64




 [SourceDisksFiles]
 PFIP.INI = 1
 pfip.GPD = 1

 ;
 ; Call SetupSetDirectoryId with 66000 to set the target directory at runtime
 ; (depending on which environment drivers are getting installed)
 ;

 [DestinationDirs]
 DefaultDestDir=66000

 ;
 ; Localizable Strings
 ;
 [Strings]
 PF = "TRUPRO"
 CWIN = "C:\SOurce\PFPrintPackage\"

Generate catalogfile and sign the driver

c:\Program Files (x86)\Windows Kits\10\bin\x86>Inf2Cat.exe /driver:"C:\source\myinfo" /os:8_X64,8_X86,
Server8_X64,Server2008R2_X64,7_X64,7_X86,Server2008_X64,Server2008_X86,Vista_X64,Vista_X86,Server2003_X64,
Server2003_X86,XP_X64,XP_X86,2000,10_X86,10_X64,Server10_X64,Server2016_X64
..............................
Signability test complete.

Errors:
None

Warnings:
22.9.3: Missing hardware ID (cannot have just compatible ID) in line my-info-p=drv_install in section [pf]
of myinfo\myinfop.inf
22.9.3: Missing hardware ID (cannot have just compatible ID) in line my-info-p=drv_install in section [pf.ntx86]
of myinfo\myinfop.inf
22.9.3: Missing hardware ID (cannot have just compatible ID) in line my-info-p=drv_install in section [pf.ntamd64]
 of myinfo\myinfop.inf

Catalog generation complete.
C:\source\myinfo\myinforp.cat

c:\Program Files (x86)\Windows Kits\10\bin\x86>cd "c:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x64"

c:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x64>signtool.exe sign /f C:\Users\charlie\Desktop\Version\Sign.pfx
 /p sonatina3!! /fd SHA1 C:\source\myinfo\myinforp.cat
Done Adding Additional Store
Successfully signed: C:\source\myinfo\myinforp.cat

c:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x64>
c:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x64>

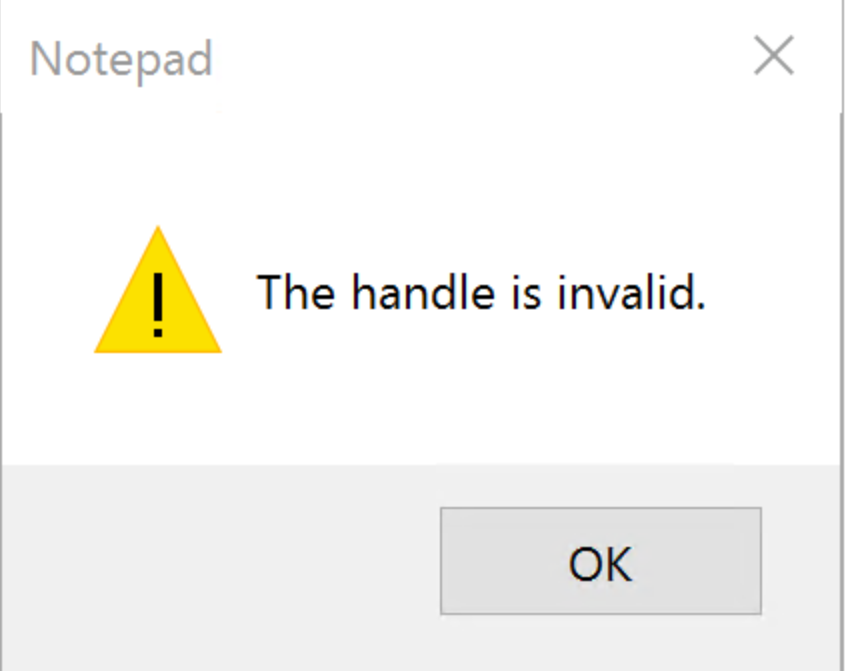

Now when I install the driver..this is the error I am getting. Can someone please help me?

windows server 2012

windows server 2016

Answer 1

Hello @Smitha Challa ,

Thanks for your query.

This print error may be permission related. What about log on with another administrator with full privileges? Please also check if it's a driver or device issue.

Reference:
https://social.technet.microsoft.com/Forums/en-US/3dcd3023-e7df-4d2a-8150-86b637d0929b/test-page-failed-to-print-would-you-like-to?forum=winserverprint

Best regards,
Leila

----------

If the Answer is helpful, please click "Accept Answer" and upvote it.
