How to make a countdown Timer continue even when Winform is closed?

Question

Hello. I'm new to windows form so I don't really understand how things work. Recently, I try to make a countdown timer that counts from a certain time to 0. But when the form is closed, everything is like "reset" and I don't want that. What I want is, for example, countdown time is 5 mins -> close form -> open form after 3 mins -> countdown time is 2 mins left. I wonder if you guys can share any ideas that will make it works and are simple so I can understand . Thanks in advance!

Answer 1

@Uyen Nguyen , Welcome to Microsoft Q&A, Based on your description, you want to make a countdown timer and hope that it will contine when the form is closed.

I make some steps and code example. You could check if it works for you.

First, I make a countdown Timer from the answer.

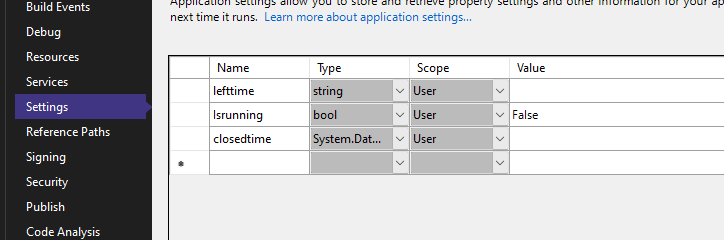

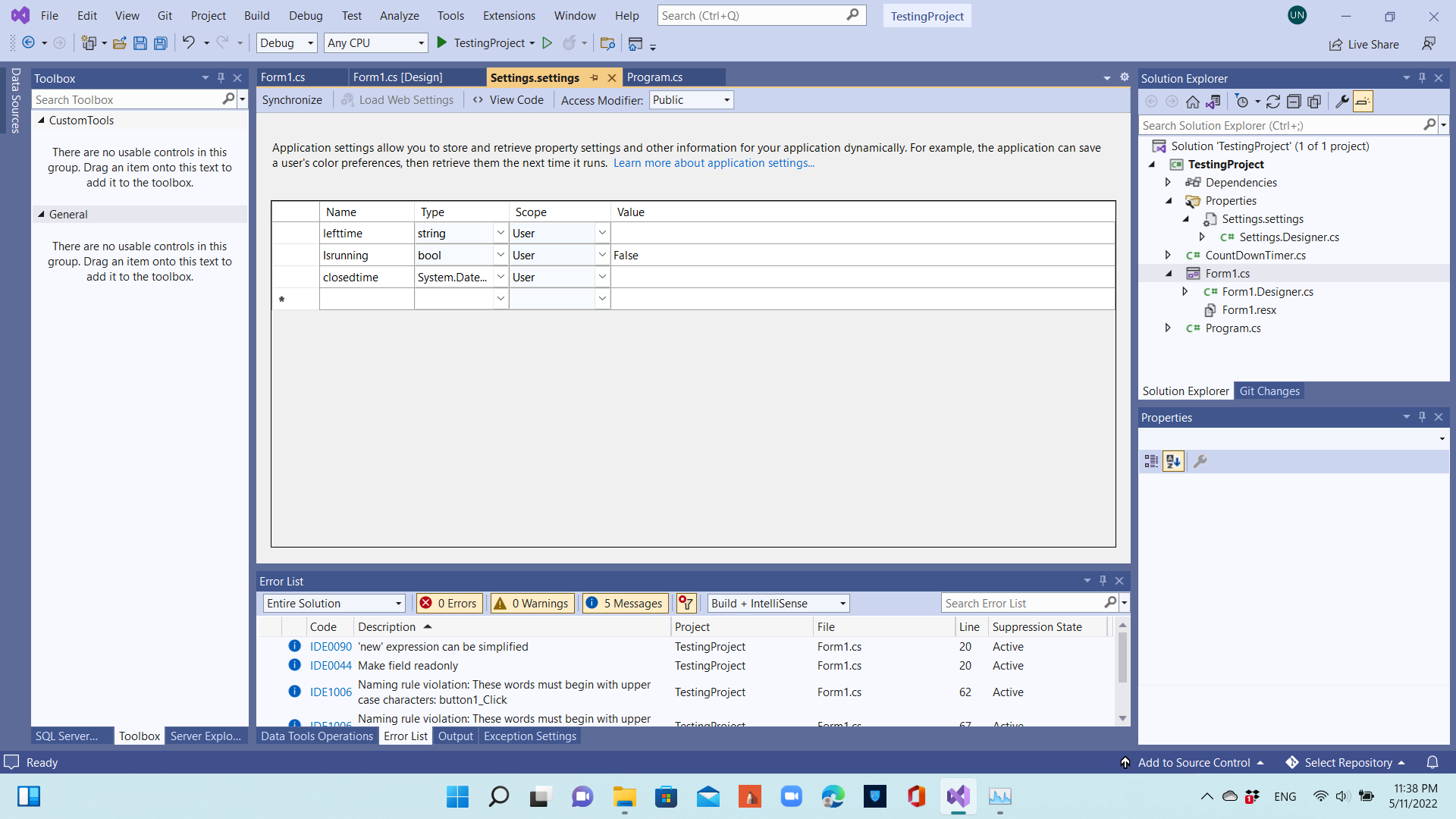

Second, I add the following settings in the winform.

Third, I used FormClosing event to save some information to the settings.

  private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            if(timer.IsRunnign)
            {
                Properties.Settings.Default.lefttime = label1.Text;
                Properties.Settings.Default.Isrunning = true;
                Properties.Settings.Default.closedtime=DateTime.Now;
                Properties.Settings.Default.Save();
            }
        }

 Fourth, I used Form1_Load event to read the information.

  private void Form1_Load(object sender, EventArgs e)
        {
            if (Properties.Settings.Default.Isrunning== true)
            {
                string lefttime = Properties.Settings.Default.lefttime;
                TimeSpan time1=TimeSpan.ParseExact(lefttime, @"mm\:ss", CultureInfo.CurrentCulture);
                DateTime closedtime = Properties.Settings.Default.closedtime;
                TimeSpan passedtime = DateTime.Now - closedtime;
                var t = time1.Subtract(passedtime);
                label1.Text=t.ToString(@"mm\:ss");
                timer.SetTime(t.Minutes, t.Seconds);
                timer.Start();
                timer.TimeChanged += () => { label1.Text = timer.TimeLeftStr; };

                // show messageBox on timer = 00:00.000
                timer.CountDownFinished += () => { timer.Stop(); MessageBox.Show("Timer finished the work!"); };

                //timer step. By default is 1 second
                timer.StepMs = 1; // for nice milliseconds time switch
            }
            else
            {
                //set to 5 mins
                timer.SetTime(5, 0);

                //update label text
                timer.TimeChanged += () => { label1.Text = timer.TimeLeftStr; };

                // show messageBox on timer = 00:00.000
                timer.CountDownFinished += () => { timer.Stop(); MessageBox.Show("Timer finished the work!"); };

                //timer step. By default is 1 second
                timer.StepMs = 1; // for nice milliseconds time switch
            }

        }

Finally, Please set the properties when we click the stop button.

Completed code:

 public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        CountDownTimer timer = new CountDownTimer();
        private void Form1_Load(object sender, EventArgs e)
        {
            if (Properties.Settings.Default.Isrunning== true)
            {
                string lefttime = Properties.Settings.Default.lefttime;
                TimeSpan time1=TimeSpan.ParseExact(lefttime, @"mm\:ss", CultureInfo.CurrentCulture);
                DateTime closedtime = Properties.Settings.Default.closedtime;
                TimeSpan passedtime = DateTime.Now - closedtime;
                var t = time1.Subtract(passedtime);
                label1.Text=t.ToString(@"mm\:ss");
                timer.SetTime(t.Minutes, t.Seconds);
                timer.Start();
                timer.TimeChanged += () => { label1.Text = timer.TimeLeftStr; };

                // show messageBox on timer = 00:00.000
                timer.CountDownFinished += () => { timer.Stop(); MessageBox.Show("Timer finished the work!"); };

                //timer step. By default is 1 second
                timer.StepMs = 1; // for nice milliseconds time switch
            }
            else
            {
                //set to 5 mins
                timer.SetTime(5, 0);

                //update label text
                timer.TimeChanged += () => { label1.Text = timer.TimeLeftStr; };

                // show messageBox on timer = 00:00.000
                timer.CountDownFinished += () => { timer.Stop(); MessageBox.Show("Timer finished the work!"); };

                //timer step. By default is 1 second
                timer.StepMs = 1; // for nice milliseconds time switch
                Console.WriteLine(Properties.Settings.Default.lefttime);
            }

        }

        private void button1_Click(object sender, EventArgs e)
        {
            timer.Start();
        }

        private void button2_Click(object sender, EventArgs e)
        {
            timer.Pause();
        }

        private void button3_Click(object sender, EventArgs e)
        {
            timer.Stop();
            timer.Dispose();
            Properties.Settings.Default.lefttime = "";
            Properties.Settings.Default.Isrunning = false;
            Properties.Settings.Default.closedtime = DateTime.Now;
            Properties.Settings.Default.Save();
        }

        private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            if(timer.IsRunnign)
            {
                Properties.Settings.Default.lefttime = label1.Text;
                Properties.Settings.Default.Isrunning = true;
                Properties.Settings.Default.closedtime=DateTime.Now;
                Properties.Settings.Default.Save();
            }
        }
    }
    public class CountDownTimer : IDisposable
    {
        public Stopwatch _stpWatch = new Stopwatch();

        public Action TimeChanged;
        public Action CountDownFinished;

        public bool IsRunnign => timer.Enabled;

        public int StepMs
        {
            get => timer.Interval;
            set => timer.Interval = value;
        }

        private Timer timer = new Timer();

        private TimeSpan _max = TimeSpan.FromMilliseconds(30000);

        public TimeSpan TimeLeft => (_max.TotalMilliseconds - _stpWatch.ElapsedMilliseconds) > 0 ? TimeSpan.FromMilliseconds(_max.TotalMilliseconds - _stpWatch.ElapsedMilliseconds) : TimeSpan.FromMilliseconds(0);

        private bool _mustStop => (_max.TotalMilliseconds - _stpWatch.ElapsedMilliseconds) < 0;

        public string TimeLeftStr => TimeLeft.ToString(@"mm\:ss");

        public string TimeLeftMsStr => TimeLeft.ToString(@"mm\:ss\.fff");

        private void TimerTick(object sender, EventArgs e)
        {
            TimeChanged?.Invoke();

            if (_mustStop)
            {
                CountDownFinished?.Invoke();
                _stpWatch.Stop();
                timer.Enabled = false;
            }
        }

        public CountDownTimer(int min, int sec)
        {
            SetTime(min, sec);
            Init();
        }

        public CountDownTimer(TimeSpan ts)
        {
            SetTime(ts);
            Init();
        }

        public CountDownTimer()
        {
            Init();
        }

        private void Init()
        {
            StepMs = 1000;
            timer.Tick += new EventHandler(TimerTick);
        }

        public void SetTime(TimeSpan ts)
        {
            _max = ts;
            TimeChanged?.Invoke();
        }

        public void SetTime(int min, int sec = 0) => SetTime(TimeSpan.FromSeconds(min * 60 + sec));

        public void Start()
        {
            timer.Start();
            _stpWatch.Start();
        }

        public void Pause()
        {
            timer.Stop();
            _stpWatch.Stop();
        }

        public void Stop()
        {
            Reset();
            Pause();
        }

        public void Reset()
        {
            _stpWatch.Reset();
        }

        public void Restart()
        {
            _stpWatch.Reset();
            timer.Start();
        }

        public void Dispose() => timer.Dispose();
    }

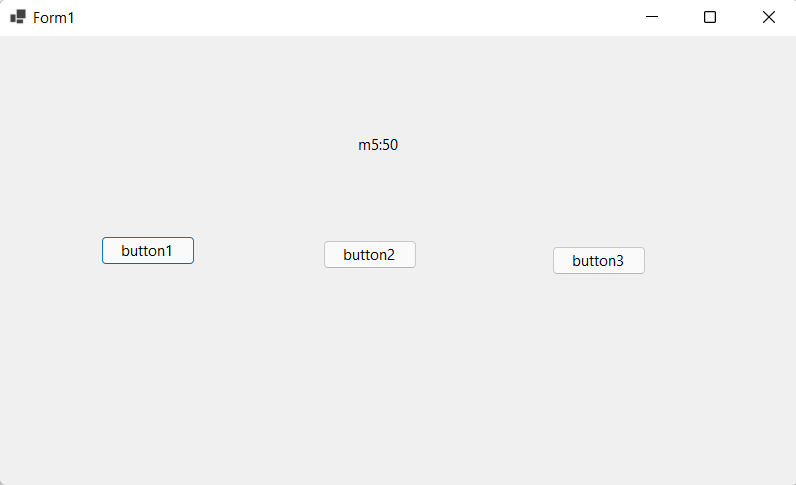

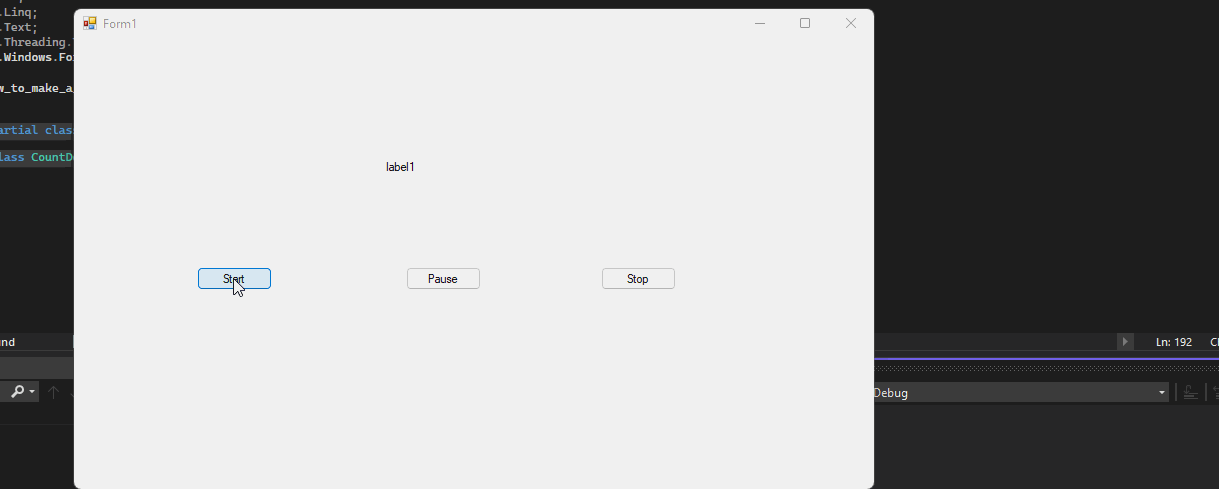

Tested result:

Hope this could help you.

Best Regards,
Jack

---
