Pipeline failed when parsing json due to null values

Question

First of all, I am new in ADF world.

Recently got a task which I am still strugling with. I am trying to parse nested json stored in Blob Storage and copy the content to a table I had built in Azure Sql DB.

I created a pipeline and mapping but when running I am getting the following error:

Operation on target CopyJsonTo Sql failed: ErrorCode=UserErrorSchemaMappingCannotInferSinkColumnType,'Type=Microsoft.DataTransfer.Common.Shared.HybridDeliveryException,Message=Data type of column 'dimension1' can't be inferred from 1st row of data, please specify its data type in mappings of copy activity or structure of DataSet.,Source=Microsoft.DataTransfer.Common,'

I guess it is because some of my data contains null values. here the json file sample:

Here are also some screenshots from my pipline configuration for source, sink and mapping

Thanks in advance. Any suggestion will be valuable to me

Answer 1

Hello @BartoszWachocki-4076 and welcome to Microsoft Q&A and Data Factory. Thank you for your question.

I was able to reproduce your issue... until I hooked up the SQL. However I think I know where to fix this anyway.
First, go to your sink dataset

and import schema

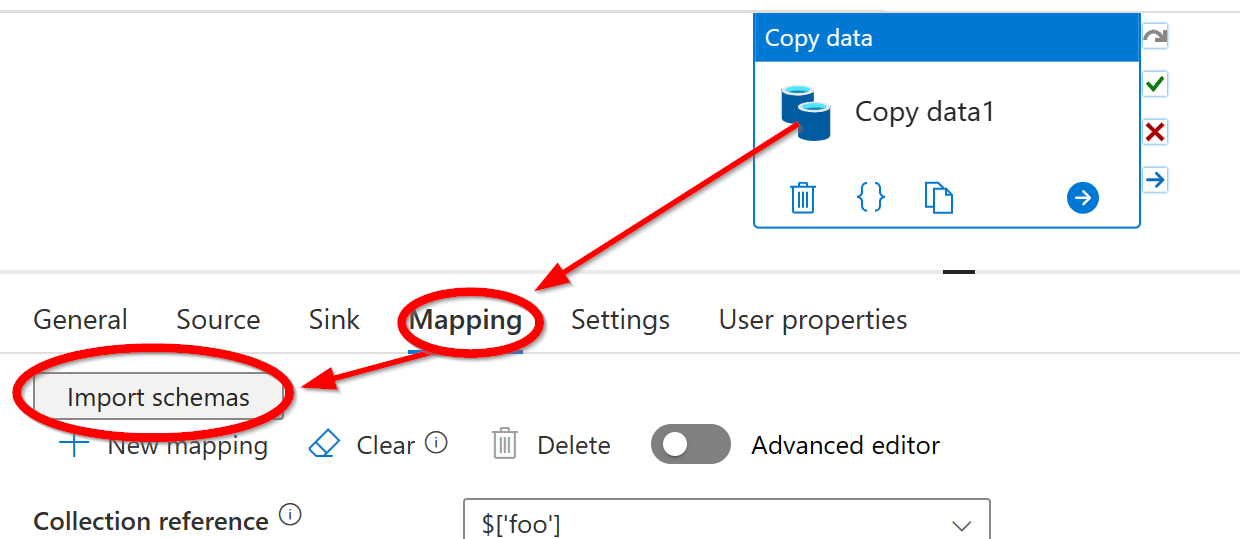

Then go back to the copy activity mapping and import schemas again (to ensure it is up to date). If you click clear first, don't forget to check the collection reference.

The idea behind this, is to make the mapping explicit to Data Factory, so it doesn't try to guess data type from the data.
Please let me know if this solves your issue. If not, we can try the same on the source side, and if that doesn't work, let me know and I'll figure something out.

Welcome and Thank you
Martin
