Using SkiaSharp for making graphs in WPF

Question

Hi,
I have been trying to use SkiaSharp to make charts/graphs in WPF. Havent been able to find a proper sample implementation of Skia in WPF. Some of the available samples in GitHub seem to be complicated compared to other platforms. Can someone share with a sample simple implementation of Skia (using a canvas etc to draw something on the screen) in a WPF project ?

Thanks in Advance !

Answer 1

This basic sample works fine for me (Windows 10 - 1909, VS 2019, .NET.4.7.2) : WPF SkiaSharpSample

after retargeting to .NET.4.7.2, removing and installing latest versions for packages :
SkiaSharp.Views.Desktop.Common
SkiaSharp.Views.WPF

Answer 2

I will show you the steps to create a simple demo for using SkiaSharp in WPF:

Step 1: Create a .Net core WPF app and install SkiaSharp in its NuGet
Step 2: Add the below code in MainWindow.xaml:

 <Grid>
        <Grid.RowDefinitions>
            <RowDefinition></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Image x:Name="Image" Margin="10,10,10,10"></Image>
        <Button Margin="10,10,10,10" Grid.Row="1" Content="use Skia " Click="Button_OnClick"></Button>
    </Grid>

Step 3: Add the below code for MainWindow.xaml.cs:

public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }

        private void Button_OnClick(object sender, RoutedEventArgs e)
        {
            var writeableBitmap = CreateImage(1920, 1080);
            UpdateImage(writeableBitmap);
            Image.Source = writeableBitmap;
        }

        private WriteableBitmap CreateImage(int width, int height)
        {
            var writeableBitmap = new WriteableBitmap(width, height, 96, 96, PixelFormats.Bgra32, BitmapPalettes.Halftone256Transparent);
            return writeableBitmap;
        }
        private void UpdateImage(WriteableBitmap writeableBitmap)
        {
            int width = (int)writeableBitmap.Width,
                height = (int)writeableBitmap.Height;
            writeableBitmap.Lock();
            var skImageInfo = new SKImageInfo()
            {
                Width = width,
                Height = height,
                ColorType = SKColorType.Bgra8888,
                AlphaType = SKAlphaType.Premul,
                ColorSpace = SKColorSpace.CreateSrgb()
            };

            using (var surface = SKSurface.Create(skImageInfo, writeableBitmap.BackBuffer))
            {
                SKCanvas canvas = surface.Canvas;
                canvas.Clear(new SKColor(130, 130, 130));
                canvas.DrawText("SkiaSharp in Wpf!", 50, 200, new SKPaint() { Color = new SKColor(0, 0, 0), TextSize = 100 });
                canvas.DrawText("Using SkiaSharp for making graphs in WPF", new SKPoint(50, 500), new SKPaint(new SKFont(SKTypeface.FromFamilyName("Microsoft YaHei UI")))
                {
                    Color = new SKColor(0, 0, 0),
                    TextSize = 20
                });
            }
            writeableBitmap.AddDirtyRect(new Int32Rect(0, 0, width, height));
            writeableBitmap.Unlock();
        }
    }

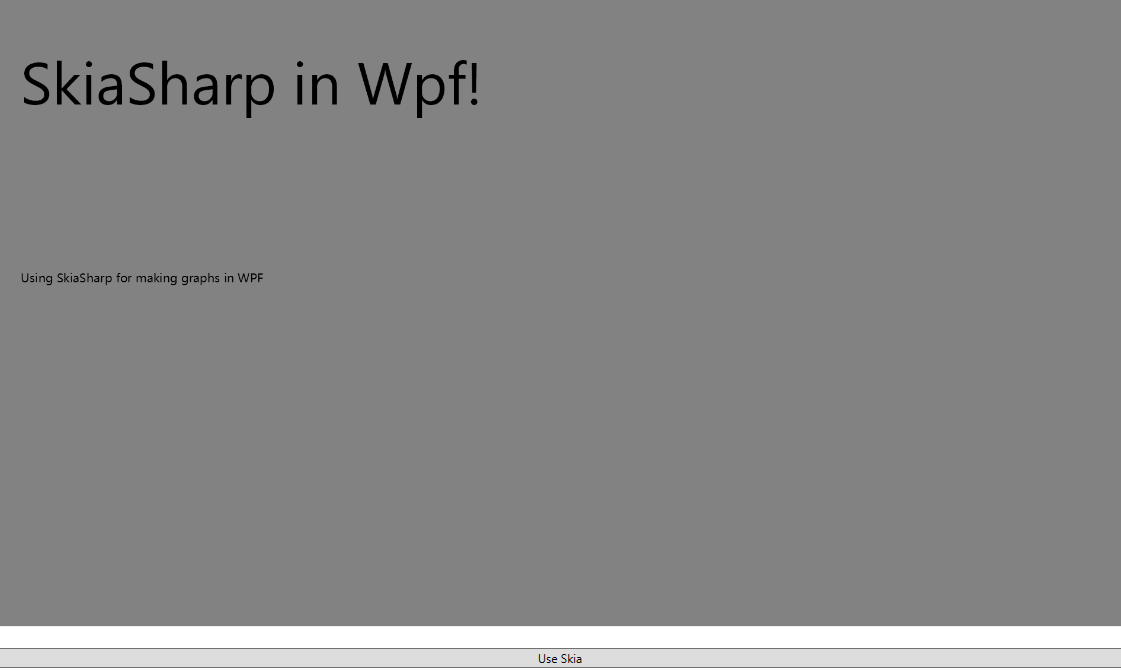

Step 4: You will get the result picture after running the app:
