IoT Hub x509 Server Certificate won't verify

Question

I am trying to connect to Azure Iot Hub using x509 certificate authorization.

I have created the certificates for my device using these instructions: https://learn.microsoft.com/en-us/azure/iot-hub/tutorial-x509-scripts

However, the Server certificate won't verify. Here is the console output from the TLS handshake:

 Loading the CA root certificate
mbedtls_ssl_setup : 0
cert size[1874]
mbedtls_x509_crt_parse() ca_certificate returned 0
 Loading the device certificates(s) ...
device cert size[1964]
mbedtls_x509_crt_parse() device_certificate returned 0
  . Verifying X.509 certificate...
Verify requested for (Depth 1):
cert. version     : 3
serial number     : CD:96:3B:05:EB:BC:9F:49
issuer name       : CN=Azure IoT Hub CA Cert Test Only
subject name      : CN=Azure IoT Hub CA Cert Test Only
issued  on        : 2022-05-16 18:43:33
expires on        : 2022-06-15 18:43:33
signed using      : RSA with SHA-256
RSA key size      : 4096 bits
basic constraints : CA=true
key usage         : Digital Signature, Key Cert Sign, CRL Sign

  This certificate has no flags

Verify requested for (Depth 0):
cert. version     : 3
serial number     : 03
issuer name       : CN=Azure IoT Hub CA Cert Test Only
subject name      : CN=mydevice
issued  on        : 2022-05-16 19:03:25
expires on        : 2022-06-15 19:03:25
signed using      : RSA with SHA-256
RSA key size      : 4096 bits
basic constraints : CA=false
cert. type        : SSL Client, Email
key usage         : Digital Signature, Non Repudiation, Key Encipherment
ext key usage     : TLS Web Client Authentication, E-mail Protection

  This certificate has no flags
 ok
wz_tls_init [1]
socket open port : 0
socket[0]
server ip : <Azure IoT Hub> port : 8883
init connect[1]
  . Performing the SSL/TLS handshake...Port:[0]/Send(522) :

Verify requested for (Depth 1):
cert. version     : 3
serial number     : 0F:14:96:5F:20:20:69:99:4F:D5:C7:AC:78:89:41:E2
issuer name       : C=IE, O=Baltimore, OU=CyberTrust, CN=Baltimore CyberTrust Root
subject name      : C=US, O=Microsoft Corporation, CN=Microsoft RSA TLS CA 01
issued  on        : 2020-07-21 23:00:00
expires on        : 2024-10-08 07:00:00
signed using      : RSA with SHA-256
RSA key size      : 4096 bits
basic constraints : CA=true, max_pathlen=0
key usage         : Digital Signature, Key Cert Sign, CRL Sign
ext key usage     : TLS Web Server Authentication, TLS Web Client Authentication
certificate policies : ???, ???, ???
  **! The certificate is not correctly signed by the trusted CA**


Verify requested for (Depth 0):
cert. version     : 3
serial number     : 12:00:2C:E1:40:0A:44:9A:D8:39:95:5F:BB:00:00:00:2C:E1:40
issuer name       : C=US, O=Microsoft Corporation, CN=Microsoft RSA TLS CA 01
subject name      : CN=*.azure-devices.net
issued  on        : 2022-06-04 09:00:01
expires on        : 2022-11-04 09:00:01
signed using      : RSA with SHA-256
RSA key size      : 2048 bits
subject alt name  :
    dNSName : *.azure-devices.net
    dNSName : *.amqpws.azure-devices.net
    dNSName : *.su.management-azure-devices.net
key usage         : Digital Signature, Key Encipherment, Data Encipherment
ext key usage     : TLS Web Server Authentication, TLS Web Client Authentication
certificate policies : ???, ???

  This certificate has no flags

 failed
  ! mbedtls_ssl_handshake returned -9984:
wz_tls_connect [-1]


Thanks in advance.

Answer 1

I fixed this on my own, through trial and error.

The instructions referenced above create three files:

1. azure-iot-test-only.root.ca.cert.pem
2. new-device.cert.pem
3. new-device.key.pem

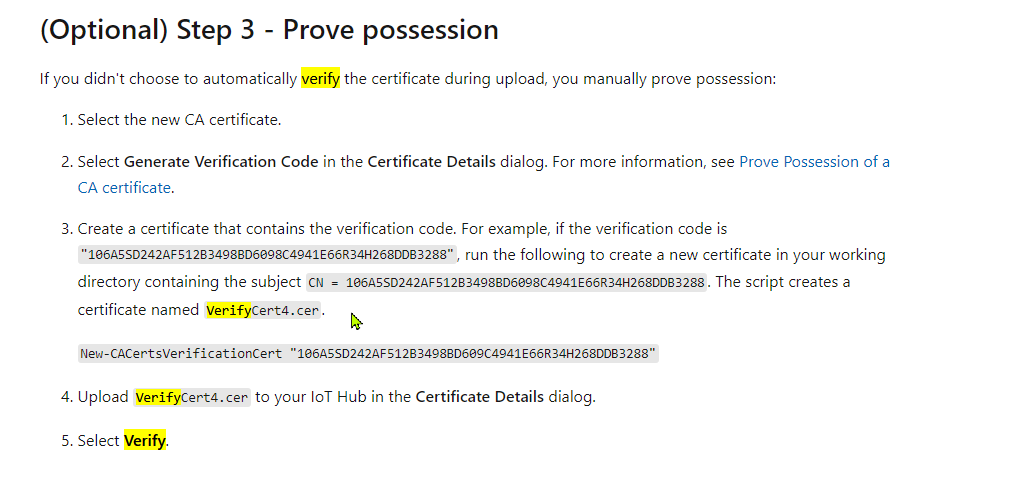

File 1 is uploaded to Azure and verified there.
Files 2 and 3 are used by the device.

During the TLS handshake when connecting to Azure Iot Hub, the server (Azure) sends a certificate which must be verified by the device. That's where it was failing to verify. I had included File 1 for this purpose (as the TLS ca-cert), but that doesn't work. Azure IoT Hub is sending a Baltimore based certificate, so the device needs a Baltimore cert to verify it. That is not clear in the instructions.

The Baltimore (and Digicert) pem files can be obtained with this script (with Bash on Linux):

#!/bin/bash
# Copyright (c) Microsoft Corporation. All rights reserved.
# SPDX-License-Identifier: MIT
# Copied from github.com/Azure/azure-sdk-for-c/blob/main/sdk/samples/iot/aziot_esp32/create_trusted_cert_header.sh
#
# to execute:  sh create_trusted_cert_header.sh

set -x # Set trace on
set -o errexit # Exit if command failed
set -o nounset # Exit if variable not set
#set -o pipefail # Exit if pipe failed

command -v xxd >/dev/null 2>&1 || { echo >&2 "Please install xxd."; exit 1; }

wget https://cacerts.digicert.com/BaltimoreCyberTrustRoot.crt.pem -O ca1.pem
wget https://cacerts.digicert.com/DigiCertGlobalRootG2.crt.pem -O ca2.pem

cat ca1.pem > ca.pem
cat ca2.pem >> ca.pem

echo -n -e '\0' >> ca.pem
xxd -i ca.pem ca.h


My device can now complete the handshake and publish/subscribe with Azure IoT Hub
